932100 (ST 824) - Ariens 24" Snow Blower, 8hp Tecumseh (SN: 000101 & Above) Auger And Chute Parts Diagram

24" Snow Blower, 8hp Tecumseh

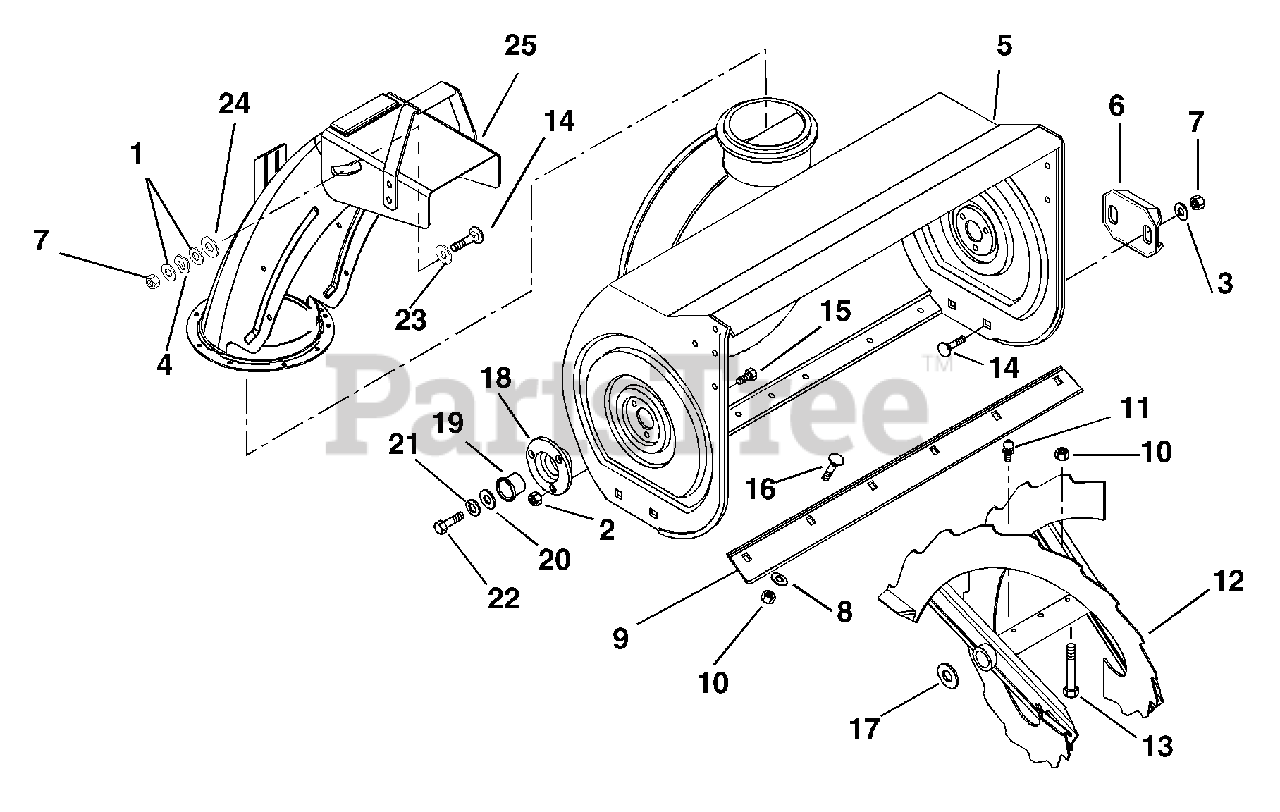

Auger And Chute Parts Diagram

  • Title

1

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$2.49

$

In Stock, Qty 20+

0

2

Ariens 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$1.99

$

In Stock, Qty 20+

0

3

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$2.99

$

In Stock, Qty 20+

0

4

Ariens 01320200

WAVE WASHER .390X.655X.110

$4.99

$

In Stock, only 2 left!

0

5

Ariens 53208700

HOUSING, 24" BLOWER W/DECAL

$

$

Not available

6

Ariens 02483859

SKID SHOE, REVERSIBLE - ORANGE

$22.99

$

In Stock, Qty 20+

0

7

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.99

$

In Stock, Qty 20+

0

8

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$2.49

$

In Stock, Qty 20+

0

9

Ariens 01016459

SCRAPER, BLADE 24"

$48.99

$

In Stock, Qty 9

0

10

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$2.49

$

In Stock, Qty 20+

0

11

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

12

Ariens 52411600

RAKE, RIGHT-24"(1ID X 14.75OD)

Note: (Includes Item 11)

$394.99

$

Usually ships in 4-12 days

0

Ariens 52411500

RAKE, LEFT-24"(1"ID X 14.75OD)

Note: (Includes Item 11)

$338.99

$

Usually ships in 4-12 days

0

13

Ariens 51001500

SHEAR BOLT SERVICE ASSEMBLY

Note: (Includes Item 10)

$6.49

$

In Stock, Qty 20+

0

14

Ariens 06211800

BLT-RHHDSQSHNK .38-16X.75 G2YZ
(Superseded to 06200336)

$3.99

$

In Stock, Qty 20+

0

15

Ariens 07028600

BLT-SERNK SL .25-20X.50 YWZC

$4.99

$

In Stock, Qty 14

0

16

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$2.49

$

In Stock, Qty 20+

0

17

Ariens 06436300

WSHR-FL-STL 1.010X1.505X.062YZ
(Superseded to 06401132)

$2.99

$

In Stock, Qty 20+

0

18

Ariens 02437451

BEARING SUPPORT
(Superseded to 05063300)

$31.99

$

In Stock, only 2 left!

0

19

Ariens 05503500

BSHG-FLG 1.000X1.12X.62X1.50BR

$13.99

$

In Stock, Qty 17

0

20

Ariens 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$3.99

$

In Stock, Qty 20+

0

21

Ariens 06306600

WSHR-LK .500X.151 HVY YWZC
(Superseded to 06300117)

$3.49

$

In Stock, only 2 left!

0

22

Ariens 05947100

@BLT-HEX .50-13X1.00 GR5 YWZC
(Superseded to 05901715)

$3.49

$

In Stock, only 2 left!

0

23

Ariens 06441100

WSHR-FL-STL .52X.827X.062 YWZC
(Superseded to 06401114)

$3.49

$

In Stock, Qty 20+

0

24

Ariens 06416800

WSHR-PLASTIC .390X.875X.062
(Superseded to 06433600)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 52410900

CHUTE, DISCHARGE W/O REMOTE

$

$

Not available
