932100 (ST 824) - Ariens 24" Snow Blower, 8hp Tecumseh (SN: 000101 & Above) Discharge Chute Crank Parts Diagram

24" Snow Blower, 8hp Tecumseh

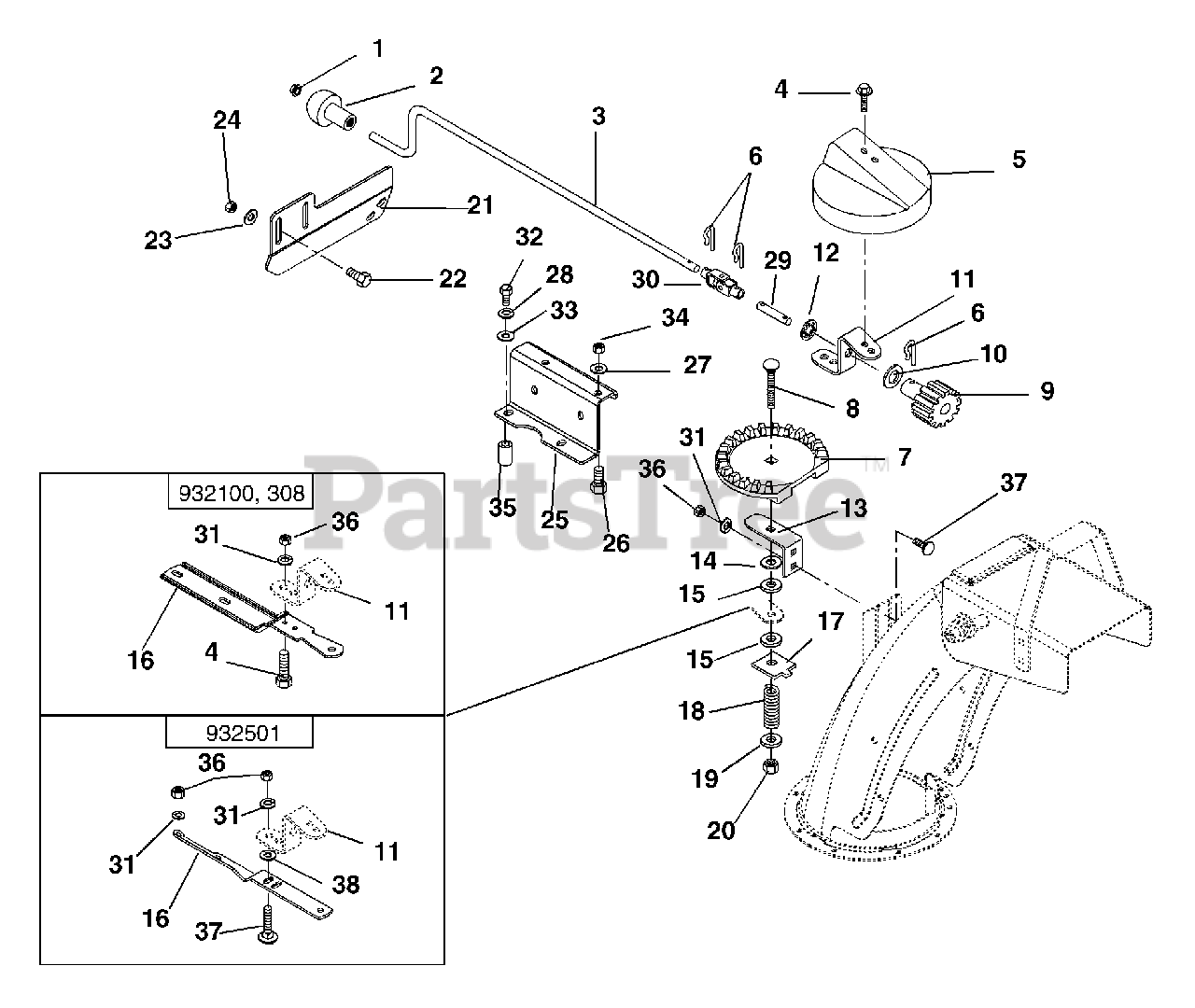

Discharge Chute Crank Parts Diagram

  • Title

1

Ariens 01019800

CAP, 3/8 ROD YWZC

Note: (100, 308, 501)

$2.99

$

In Stock, only 1 left!

0

2

Ariens 07508300

KNOB

Note: (100, 308, 501)

$14.99

$

In Stock, only 2 left!

0

3

Ariens 02480600

CRANK, CHUTE
(Superseded to 02490700)

Note: (100, 308)

$47.99

$

Usually ships in 4-12 days

0

3

Ariens 03228600

CHUTE CRANK

Note: (501)

$88.99

$

Usually ships in 4-12 days

0

4

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

Note: (100, 308, 501)

$0.99

$

In Stock, Qty 20+

0

5

Ariens 03223000

GEAR COVER

Note: (100, 308, 501)

$13.99

$

In Stock, only 2 left!

0

6

Ariens 06714500

PIN, SPRING CLIP

Note: (100, 308)

$2.99

$

In Stock, Qty 18

0

6

Ariens 06714500

PIN, SPRING CLIP

Note: (501)

$2.99

$

In Stock, Qty 18

0

7

Ariens 03222900

CHUTE GEAR

Note: (100, 308, 501)

$11.99

$

In Stock, Qty 8

0

8

Ariens 06224400

@BLT-RDHDSQNK .38-16X2.50 G5YZ
(Superseded to 06200234)

Note: (100, 308, 501)

$4.99

$

In Stock, Qty 10

0

8

Ariens 06213400

@BLT-RDHDSQNK .38-16X2.25 G5YZ
(Superseded to 06200301)

Note: (500)

$4.99

$

In Stock, Qty 20+

0

9

Ariens 53204400

PINION GEAR W/BRACKET
(Superseded to 53214200)

Note: (Contains Items Gear and 10-12) (100, 308, 501)

$50.99

$

In Stock, only 2 left!

0

10

Ariens 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

Note: (100, 308, 501)

$0.99

$

In Stock, Qty 9

0

11

Ariens 03220551

BRACKET-GEAR
(Superseded to 53214200)

Note: (100, 308, 501)

$50.99

$

In Stock, only 2 left!

0

12

Ariens 03224300

PUSHNUT .625

Note: (100, 308, 501)

$2.49

$

In Stock, Qty 5

0

13

Ariens 03220751

GEAR STRAP

Note: (100, 308, 501)

$27.99

$

Usually ships in 4-12 days

0

14

Ariens 06439300

WSHR-FL-STL .380X1.50X.062 YWZ
(Superseded to 06401028)

Note: (100, 308, 501)

$3.49

$

In Stock, Qty 20+

0

14

Ariens 06442000

@WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

Note: (500)

$2.99

$

In Stock, Qty 20+

0

15

Ariens 01123800

FRICTION WASHER

$4.99

$

In Stock, Qty 13

0

16

Ariens 02486651

BRACKET, CHUTE SUPPORT

Note: (100, 308)

$

$

Not available

16

Ariens 03237951

BRACE, CHUTE CONTROL
(Superseded to 03242751)

Note: (500, 501)

$

$

Not available

17

Ariens 03219000

FRICTION PLATE

$32.99

$

In Stock, only 2 left!

0

18

Ariens 08320900

SG-COMP .187X.56X1.62

$5.49

$

In Stock, Qty 6

0

19

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 02488551

BRACKET, CHUTE CRANK SUPPORT

Note: (100, 308)

$5.99

$

Usually ships in 4-12 days

0

21

Ariens 03240651

BRACKET, CHUTE CRANK SUPPORT

Note: (501)

$5.99

$

Usually ships in 4-12 days

0

22

Ariens 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

Note: (100, 308, 501)

$0.99

$

In Stock, only 3 left!

0

23

Ariens 06435800

@WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

Note: (100, 308, 501)

$1.49

$

In Stock, Qty 20+

0

24

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

Note: (100, 308, 501)

$0.99

$

In Stock, Qty 20+

0

25

Ariens 00646600

BRACKET, ENGINE

Note: (100, 308)

$14.48

$

Usually ships in 4-12 days

0

26

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

Note: (100, 308)

$1.99

$

In Stock, Qty 20+

0

27

Ariens 06435800

@WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

Note: (100, 308)

$1.49

$

In Stock, Qty 20+

0

28

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

Note: (100, 308)

$1.49

$

In Stock, Qty 20+

0

29

Ariens 02479700

PIN, CONNECTOR
(Superseded to 02495900)

Note: (100, 308)

$145.99

$

Usually ships in 4-12 days

0

30

Ariens 02470400

UNIVERSAL JOINT ASS'Y

Note: (100, 308)

$131.99

$

In Stock, only 1 left!

0

31

Ariens 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

Note: (100, 308)

$0.99

$

In Stock, Qty 11

0

31

Ariens 06308000

WSHR-LK .250X.077 HVY YWZC

Note: (500)

$0.99

$

Usually ships in 4-12 days

0

31

Ariens 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

Note: (501)

$0.99

$

In Stock, Qty 11

0

32

Ariens 05947500

@BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

Note: (100, 308)

$2.99

$

In Stock, Qty 6

0

33

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

Note: (100, 308)

$0.99

$

In Stock, Qty 20+

0

34

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

Note: (100, 308)

$1.99

$

In Stock, Qty 20+

0

35

Ariens 03233600

SPACER .322X.626X.50

Note: (100, 308)

$13.99

$

Usually ships in 4-12 days

0

36

Ariens 06533200

@NUT-HEX .25-20 YWZC
(Superseded to 06500916)

Note: (100, 308)

$0.99

$

In Stock, Qty 8

0

36

Ariens 06533200

@NUT-HEX .25-20 YWZC
(Superseded to 06500916)

Note: (500)

$0.99

$

In Stock, Qty 8

0

36

Ariens 06533200

@NUT-HEX .25-20 YWZC
(Superseded to 06500916)

Note: (501)

$0.99

$

In Stock, Qty 8

0

37

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

Note: (100, 308, 501)

$1.49

$

In Stock, Qty 8

0

38

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

Note: (501)

$0.99

$

In Stock, only 3 left!

0
