932100 (ST 824) - Ariens 24" Snow Blower, 8hp Tecumseh (SN: 000101 & Above) Speed Selector And Frame Parts Diagram

24" Snow Blower, 8hp Tecumseh

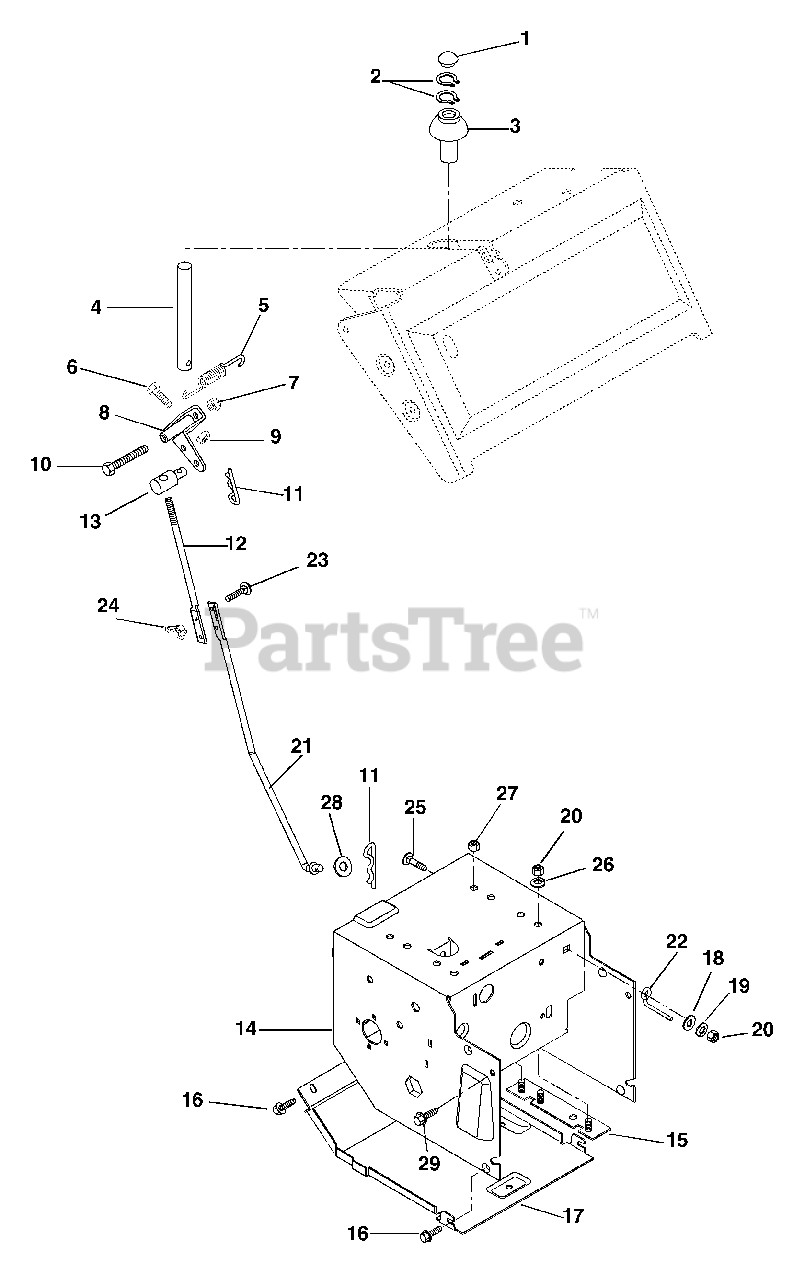

Speed Selector And Frame Parts Diagram

  • Title

1

Ariens 07516700

HOLE PLUG

$2.99

$

In Stock, only 3 left!

0

2

Ariens 05708600

RG-RTNG-EXT .500X.015

$3.49

$

In Stock, Qty 7

0

3

Ariens 07509600

KNOB

$

$

Not available

4

Ariens 02444851

ROD

$93.99

$

Usually ships in 4-12 days

0

5

Ariens 08318400

SG-TENS .055X.33X1.31 WLD 7

$11.99

$

Usually ships in 4-12 days

0

6

Ariens 05947700

@BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$2.49

$

In Stock, only 2 left!

0

7

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$2.49

$

In Stock, Qty 20+

0

8

Ariens 02462600

PIVOT

$

$

Not available

9

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 05948000

@BLT-HEX .31-18X3.50 GR5 YWZC

$3.49

$

In Stock, only 2 left!

0

11

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$1.99

$

In Stock, Qty 20+

0

12

Ariens 02487600

ROD, SHIFT-UPPER

$

$

Not available

13

Ariens 02477900

PIVOT, ROD

$

$

Not available

14

Ariens 03240559

FRAME

$

$

Not available

15

Ariens 03233800

ENGINE MOUNT, 5L,7L,8R

$

$

Not available

Ariens 03233900

ENGINE MOUNT, 5R,7R,8L

$

$

Not available

16

Ariens 07411600

@SCR-TAP .25-20X.37 HWH YWZ TR
(Superseded to 07400125)

$1.99

$

In Stock, Qty 20+

0

17

Ariens 03232459

COVER BOTTOM

$58.99

$

In Stock, only 2 left!

0

18

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$2.49

$

In Stock, Qty 20+

0

19

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.99

$

In Stock, Qty 20+

0

20

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

Note: (501)

$1.99

$

In Stock, Qty 7

0

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

Note: (100, 308)

$1.99

$

In Stock, Qty 7

0

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

Note: (100, 308)

$2.49

$

In Stock, Qty 20+

0

21

Ariens 03239500

ROD, SHIFT-LOWER

$86.99

$

Usually ships in 4-12 days

0

22

Ariens 03236300

BELT FINGER LOWER

$7.49

$

Usually ships in 4-12 days

0

23

Ariens 06219800

@BLT-RDHDSQNK .25-20X1.00 G5YZ
(Superseded to 06200402)

$2.99

$

In Stock, only 3 left!

0

24

Ariens 06537500

NUT-LK WING .250-20 YWZC
(Superseded to 06500805)

$6.49

$

In Stock, Qty 20+

0

25

Ariens 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$2.99

$

In Stock, Qty 20+

0

26

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

Note: (501)

$1.49

$

In Stock, Qty 20+

0

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

Note: (100, 308)

$1.49

$

In Stock, Qty 20+

0

Ariens 06310500

WSHR-LOCK INT .31 YWZC

Note: (100, 308)

$1.49

$

In Stock, Qty 8

0

Ariens 06436700

WSHR-FL-STL .323X.625X.062 YWZ
(Superseded to 06401002)

Note: (100, 308)

$1.99

$

Usually ships in 4-12 days

0

27

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.99

$

In Stock, Qty 5

0

28

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$2.49

$

In Stock, Qty 20+

0

29

Ariens 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$2.49

$

In Stock, Qty 20+

0
