932101 (ST 824) - Ariens 24" Snow Blower, 8hp Tecumseh (SN: 000101 & Above)

24" Snow Blower, 8hp Tecumseh

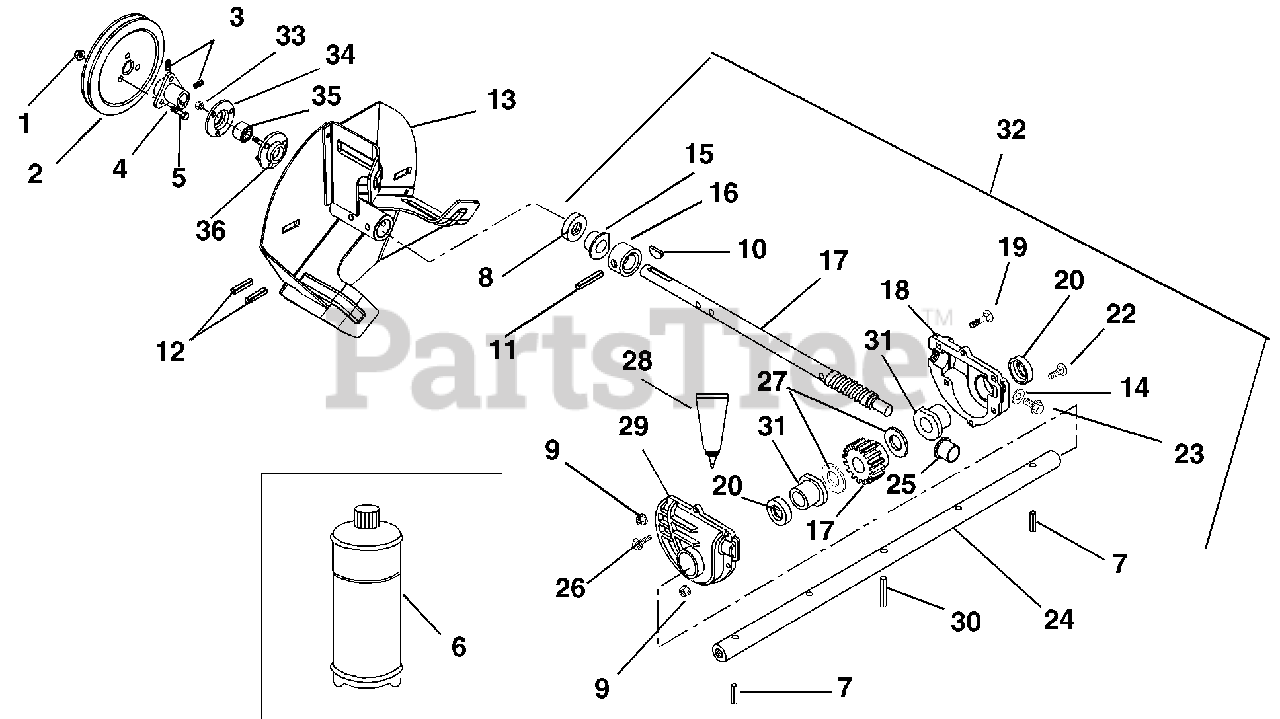

932101 (ST 824) - Ariens 24" Snow Blower, 8hp Tecumseh (SN: 000101 & Above) > Parts Diagrams (9) > Gear Case And Impeller

  • Title
06530400

1

@NUT-SPNLK-FLG .312-18 YWZC

Part# 06530400

OEM Warranty Repair Part for Ariens

Not available

07316300

2

PLY-V 8.50 X 1.25 3BLT

Part# 07316300

Note: (Models 932035, 101, 309, 503)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $44.66

06005500

3

SCR-SET .31-18X.38 SKHCUPDL

Part# 06005500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

50202100

4

HUB ASSEMBLY

Part# 50202100

Note: (Includes Item 3)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $73.73

07005300

5

BLT-SERRDHD SL .31-18X.75 YZ

Part# 07005300 (Superseded to 07028700)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

00008000

6

ARIENS 16 OZ.BOTTLE OF L2 LUBE

Part# 00008000 (Superseded to 00068800)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $17.83

05803000

7

PIN-ROLL .188X1.50

Part# 05803000

Note: (Models 932101, 309)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

05618900

8

SEAL-OIL .750X1.375X.250

Part# 05618900

Note: (Models 932101, 309)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $9.34

06530100

9

@NUT-SPNLK-FLG .25-20 YWZC

Part# 06530100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06600100

10

KEY-WDRF .188X.875X.375 SAE11

Part# 06600100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

05804500

11

PIN-GRV .188X1.25 TP A

Part# 05804500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

05803700

12

PIN-ROLL .250X1.75

Part# 05803700

Note: (Models 932101, 309)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

02477251

13

IMPELLER - .75 ID X 12" OD

Part# 02477251

Note: (Models 932101, 309)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $172.12

06442500

14

WSHR-FIBER .437X.656X.032

Part# 06442500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

05511200

15

BSHG-FLG .750X1.000X.750X1.250

Part# 05511200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $9.34

03210300

16

THRUST COLLAR

Part# 03210300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $54.06

53208800

17

SHAFT & WORM GEAR ASSEMBLY

Part# 53208800 (Superseded to 52422700)

Note: (Models 932101, 309)

OEM Warranty Repair Part for Ariens

Not available

02470600

18

CASE, GEAR-LH-LARGE BORE-ALUM.

Part# 02470600 (Superseded to 52003300)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $98.33

06219700

19

@BLT-RDHDSQNK .25-20X1.25 G5YZ

Part# 06219700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

05618800

20

SEAL-OIL 1.000X1.375X.250

Part# 05618800

Note: (Models 932101, 309)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $9.34

06219800

22

@BLT-RDHDSQNK .25-20X1.00 G5YZ

Part# 06219800

OEM Warranty Repair Part for Ariens

Not available

07412900

23

@SCR-TAP .38-16X.50 HWH TR YWZ

Part# 07412900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

02438300

24

SHAFT, RAKE - 24"

Part# 02438300

Note: (Models 932101, 309)

OEM Warranty Repair Part for Ariens

Not available

05520600

25

BSHG-FLG .502X1X.750

Part# 05520600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.81

07413000

26

SCR-TAP 10-24X.75 HWH TR YWZC

Part# 07413000

OEM Warranty Repair Part for Ariens

Not available

06416600

27

WSHR-HRD-THRS 1.007X1.542X.062

Part# 06416600

Note: (Models 932101, 309)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.47

00031700

28

LOCTITE 518 GASKET--6ML TUBE

Part# 00031700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $13.36

02470700

29

CASE, GEAR-RH-LARGE BORE-ALUM.

Part# 02470700 (Superseded to 52003300)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $98.33

05806900

30

PIN-GRV .313X1.44 TP C

Part# 05806900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

05530100

31

BSHG-FLG 1.00X1.12

Part# 05530100

Note: (Models 932101, 309)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.81

53208900

32

GEAR CASE - ALUMINUM - 24"

Part# 53208900 (Superseded to 52423000)

Note: (Models 932101, 309)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $423.32

06529700

33

@NUT-LK-CTR .25-20 YWZC

Part# 06529700

OEM Warranty Repair Part for Ariens

Not available

01014200

34

BEARING FLANGE

Part# 01014200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $12.24

05406300

35

BRG-BALL .750X1.750X.50

Part# 05406300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $27.89

00301700

36

BEARING FLANGE

Part# 00301700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $20.07
