932105 (ST 8526 LE) - Ariens 26" Snow Blower, 8.5hp Tecumseh (SN: 000101 & Above) Auger And Chute Parts Diagram

26" Snow Blower, 8.5hp Tecumseh

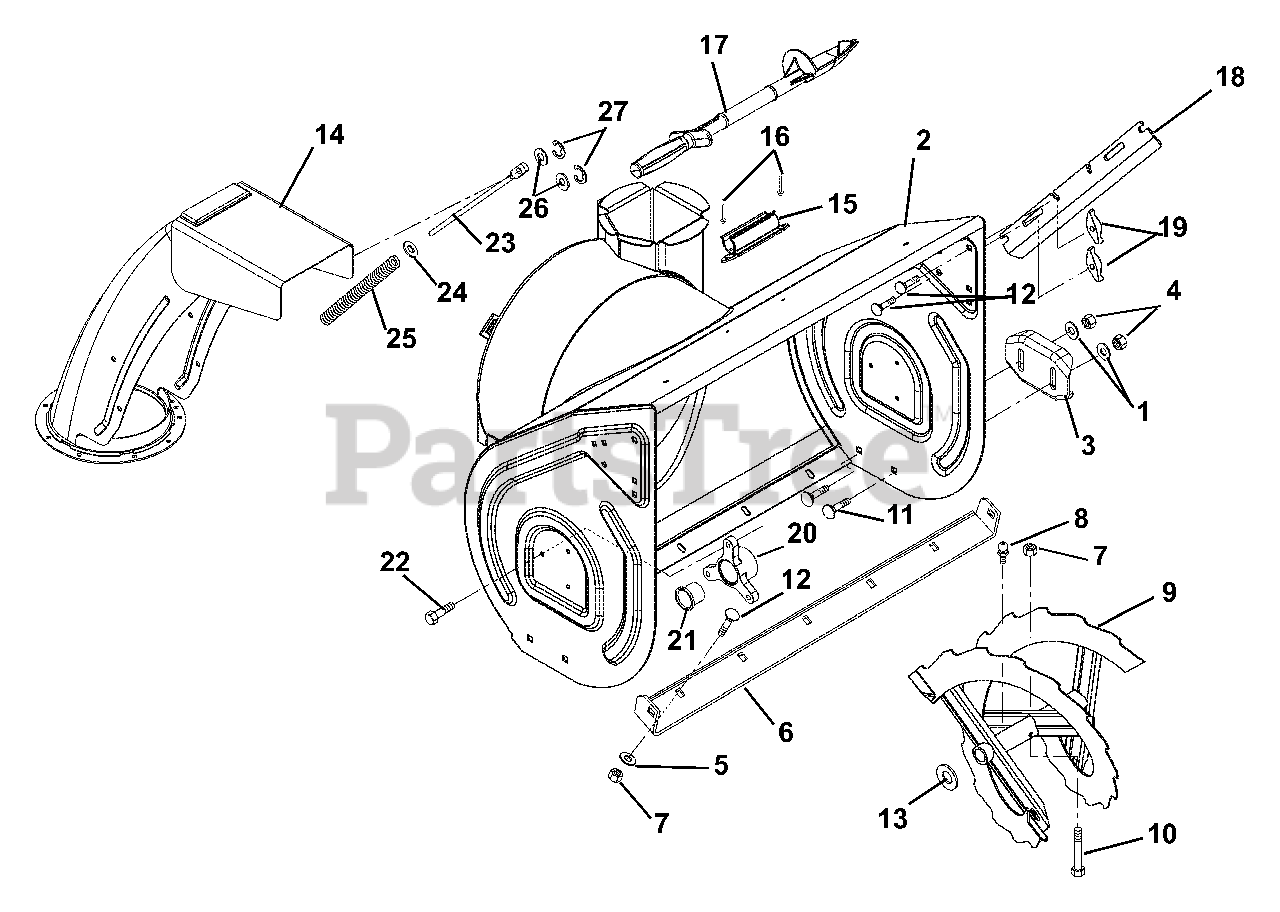

Auger And Chute Parts Diagram

  • Title

1

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

2

Ariens 53213500

HOUSING, 26" W/DECAL

$

$

Not available

3

Ariens 02483859

SKID SHOE, REVERSIBLE - ORANGE

$20.99

$

In Stock, Qty 20+

0

4

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

6

Ariens 00268659

BLADE, SCRAPER-26"
(Superseded to 04182259)

$35.99

$

In Stock, Qty 7

0

7

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

8

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

9

Ariens 52421100

RAKE, LH-26"(1 ID X 15.75 OD)

Note: (Includes Item 8)

$290.99

$

Usually ships in 4-12 days

0

Ariens 52421200

RAKE, RH-26" (1 ID X 15.75 OD)

Note: (Includes Item 8)

$290.99

$

Usually ships in 4-12 days

0

10

Ariens 51001500

SHEAR BOLT SERVICE ASSEMBLY

Note: (Includes Item 7)

$5.99

$

In Stock, Qty 20+

0

11

Ariens 06212000

@BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.99

$

In Stock, Qty 20+

0

12

Ariens 06220800

@BLT-RHDSSQNK .31-18X.75 G5YZ
(Superseded to 06200309)

$2.99

$

In Stock, Qty 20+

0

13

Ariens 06436300

WSHR-FL-STL 1.010X1.505X.062YZ
(Superseded to 06401132)

$1.99

$

In Stock, Qty 15

0

14

Ariens 52420400

CHUTE, DISCHARGE-W/REMOTE

$250.99

$

Usually ships in 4-12 days

0

15

Ariens 00170300

MOUNT, SNOW CLEAN OUT

$12.99

$

In Stock, only 2 left!

0

16

Ariens 06813600

RVT-POP .187X.45 DOME SS FBF64
(Superseded to 06800140)

$1.49

$

In Stock, only 3 left!

0

17

Ariens 00170200

DEVICE, SNOW CLEAN OUT

$22.99

$

In Stock, Qty 7

0

18

Ariens 00262159

CUTTER, DRIFT

$23.99

$

Usually ships in 4-12 days

0

19

Ariens 07531700

KNOB - WING .312-18 UNC
(Superseded to 07534800)

$3.99

$

In Stock, Qty 20+

0

20

Ariens 00275100

BUSHING, RAKE SHAFT 1"

$11.99

$

In Stock, Qty 6

0

21

Ariens 05500011

BSHG-FLG, SPLIT NYLINER 1.0"ID
(Superseded to 05500030)

$7.49

$

In Stock, Qty 20+

0

22

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

23

Ariens 02479800

ROD, CHUTE

$29.99

$

In Stock, only 2 left!

0

24

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

25

Ariens 08335200

SPRING, COMP. .08 X .40 X 7.15

$21.99

$

In Stock, only 2 left!

0

26

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, only 3 left!

0

27

Ariens 05718500

RG-RTNG-EXT .218X.035 TYPE E

$3.99

$

In Stock, only 2 left!

0
