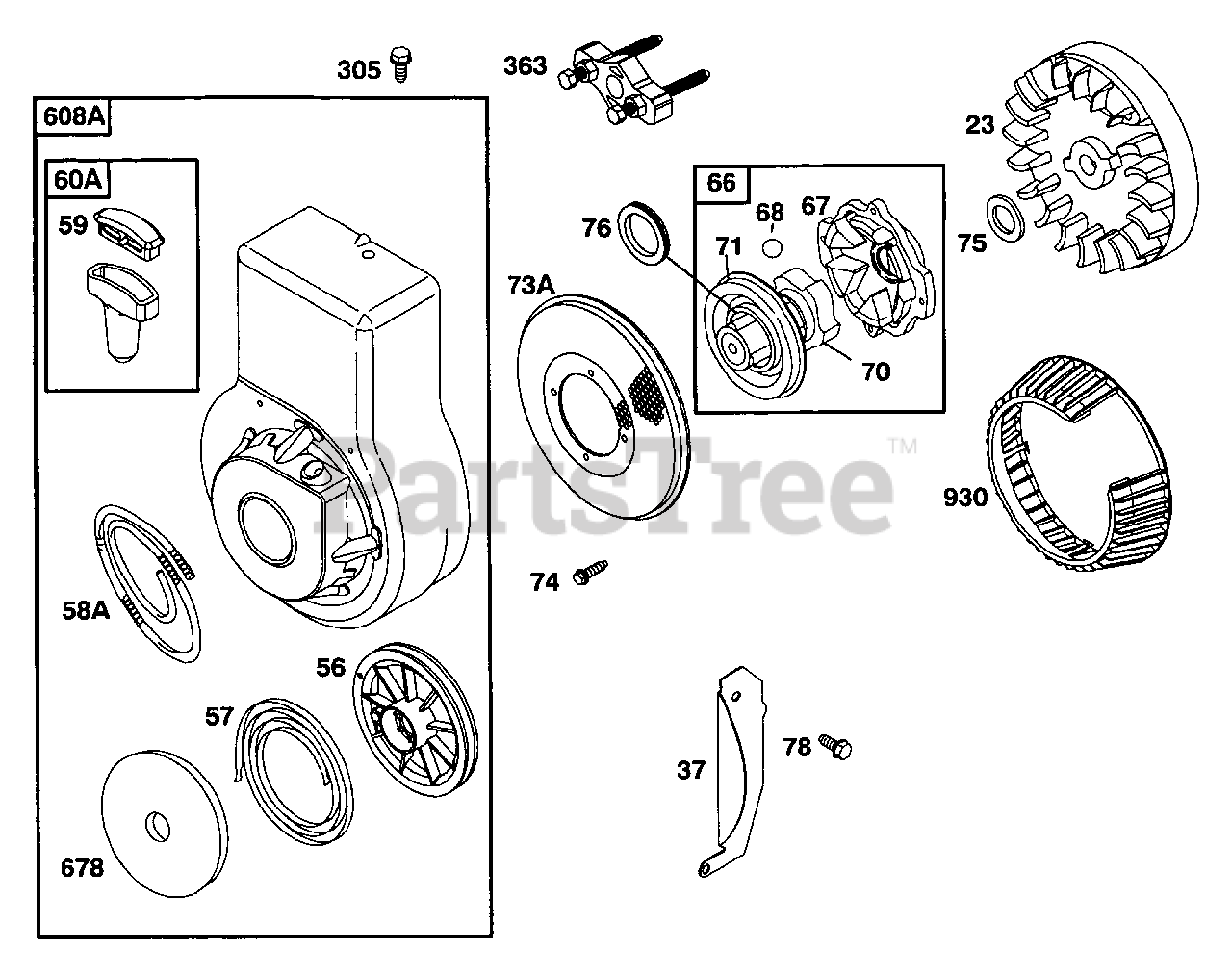

93212-0109-01 - Briggs & Stratton Horizontal Engine Blower Hsg, Rewind, Flywheel Parts Diagram

Horizontal Engine

Blower Hsg, Rewind, Flywheel Parts Diagram

  • Title

23

Briggs & Stratton 690843

Flywheel
(Superseded to 795695)

$78.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 690463

Guard-Flywheel

$10.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 281336

Pulley-Starter
(Superseded to 281336S)

$14.99

$

In Stock, only 1 left!

0

57

Briggs & Stratton 490179

Spring-Rewind Starter

$14.99

$

In Stock, Qty 9

0

58A

Briggs & Stratton 280406

Rope, Starter (81" Cut To Required Length)
(Superseded to 280406S)

$8.49

$

In Stock, only 2 left!

0

59

Briggs & Stratton 396892

Insert-Grip

$5.49

$

In Stock, only 2 left!

0

60A

Briggs & Stratton 393152

Grip-Starter Rope

$4.99

$

In Stock, only 3 left!

0

66

Briggs & Stratton 399671

Clutch-Starter

$34.99

$

In Stock, Qty 12

0

67

Briggs & Stratton 394897

Housing-Clutch

$36.99

$

In Stock, only 2 left!

0

68

Briggs & Stratton 691604

Ball-Clutch

$4.99

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 691945

Ratchet-Clutch

$17.99

$

In Stock, only 1 left!

0

71

Briggs & Stratton 691359

Cover-Ratchet

$9.99

$

In Stock, only 1 left!

0

73A

Briggs & Stratton 691725

Screen-Rotating

$

$

Not available

74

Briggs & Stratton 691627

Screw (Rotating Screen)
(Superseded to 690345)

$4.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 691736

Washer (Flywheel)

$5.99

$

Usually ships in 2-12 days

0

76

Briggs & Stratton 68238

Seal-Ratchet
(Superseded to 691359)

$9.99

$

In Stock, only 1 left!

0

78

Briggs & Stratton 690364

SCREW

$3.99

$

In Stock, only 2 left!

0

305

Briggs & Stratton 692198

Screw (Blower Housing)

$5.99

$

In Stock, only 2 left!

0

363

Briggs & Stratton 19069

Puller-Flywheel

$23.99

$

In Stock, only 2 left!

0

608A

Briggs & Stratton 498031

Starter-Rewind (10 O'clock Position)
(Superseded to 690098)

$106.99

$

Usually ships in 2-12 days

0

678

Briggs & Stratton 490817

Spacer-Rewind

$9.49

$

In Stock, only 1 left!

0

930

Briggs & Stratton 691330

Guard-Rewind

$16.99

$

Usually ships in 2-12 days

0
