932400 (ST 520) - Ariens 20" Snow Blower, 5hp Tecumseh (SN: 000101 & Above) Auger And Chute Parts Diagram

20" Snow Blower, 5hp Tecumseh

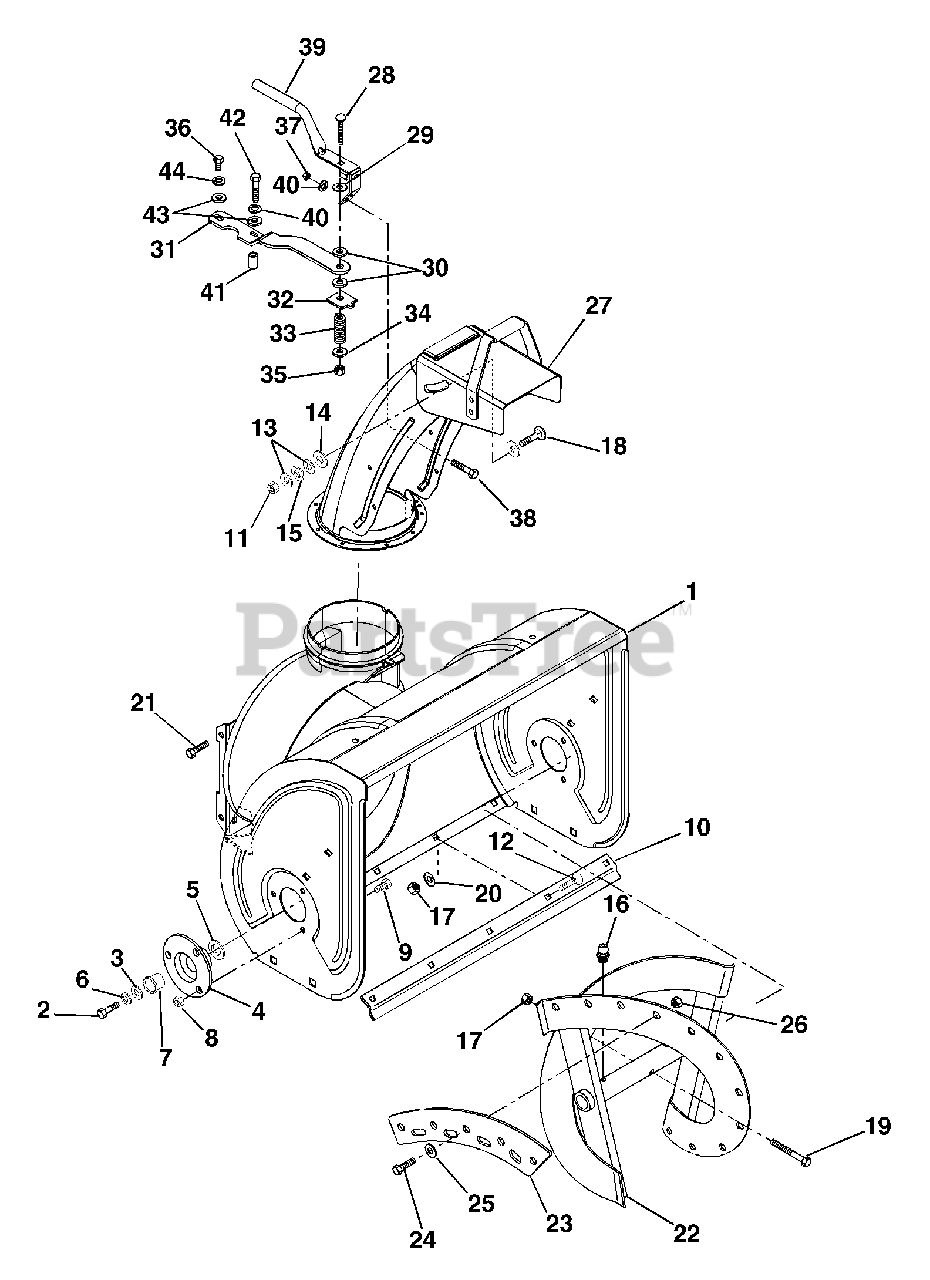

Auger And Chute Parts Diagram

  • Title

1

Ariens 53211300

HOUSING, BLOWER - 20"

$

$

Not available

2

Ariens 05947200

@BLT-HEX .31-18X.50 GR5 YWZC
(Superseded to 05901904)

$1.49

$

In Stock, Qty 15

0

3

Ariens 06446900

WSHR-FL-STL .347X1.254X.048YWZ
(Superseded to 06401105)

$2.49

$

Usually ships in 4-12 days

0

4

Ariens 53203100

BEARING FLANGE ASSEMBLY

Note: (Includes Item 7)

$51.99

$

Usually ships in 4-12 days

0

5

Ariens 06439000

@WSHR-FL-STL.812X1.50X.135YWZC
(Superseded to 06401140)

$1.49

$

In Stock, Qty 15

0

6

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 05503900

BSHG-FLG .750X1.000X.625X1.250

$12.99

$

In Stock, Qty 9

0

8

Ariens 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$0.99

$

In Stock, Qty 17

0

9

Ariens 07028600

BLT-SERNK SL .25-20X.50 YWZC

$3.99

$

In Stock, Qty 20+

0

10

Ariens 03243659

SCRAPER BLADE, 20"
(Superseded to 03243600)

$39.99

$

Usually ships in 4-12 days

0

11

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 06220600

@BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$0.99

$

In Stock, Qty 7

0

13

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 9

0

14

Ariens 06416800

WSHR-PLASTIC .390X.875X.062
(Superseded to 06433600)

$0.99

$

In Stock, Qty 14

0

15

Ariens 01320200

WAVE WASHER .390X.655X.110

$3.49

$

In Stock, Qty 7

0

16

Ariens 07061300

ZERK,FITTING .25X.125 DRIVE IN

$3.99

$

In Stock, Qty 15

0

17

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 06220800

@BLT-RHDSSQNK .31-18X.75 G5YZ
(Superseded to 06200309)

$2.49

$

In Stock, Qty 9

0

19

Ariens 53200500

SHEAR BOLT WITH NUT

Note: (Includes Items 17)

$2.49

$

In Stock, Qty 20+

0

20

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

21

Ariens 07415400

@SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 53204100

RAKE, RIGHT-20(.75ID X 10.5OD)

$

$

Not available

Ariens 53208100

RAKE, LEFT-20"(.75ID X 10.5OD)

$

$

Not available

23

Ariens 53201800

RAKE EDGE W/HARDWARE

Note: (Includes Items 24 - 26)

$155.99

$

In Stock, only 2 left!

0

24

Ariens 05944800

BLT-HEX 10-24X.63 PL

$

$

Not available

25

Ariens 06444400

@WSHR-FL-STL .188X.438X.049 YZ

$1.99

$

Usually ships in 4-12 days

0

26

Ariens 06504100

NUT-LK TOP 10-24 PL

$1.99

$

Usually ships in 4-12 days

0

27

Ariens 53211200

CHUTE, DISCHARGE W/CAP

$

$

Not available

28

Ariens 06213400

@BLT-RDHDSQNK .38-16X2.25 G5YZ
(Superseded to 06200301)

$3.99

$

In Stock, only 2 left!

0

29

Ariens 06442000

@WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$3.49

$

In Stock, Qty 15

0

30

Ariens 01123800

FRICTION WASHER

$3.99

$

In Stock, only 3 left!

0

31

Ariens 03243051

BRACE, CHUTE CONTROL

$

$

Not available

32

Ariens 03219000

FRICTION PLATE

$27.99

$

Usually ships in 4-12 days

0

33

Ariens 08320900

SG-COMP .187X.56X1.62

$4.99

$

Usually ships in 4-12 days

0

34

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

35

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

36

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0

37

Ariens 06533200

@NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 7

0

38

Ariens 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, Qty 5

0

39

Ariens 03238900

HANDLE, COATED CHUTE
(Superseded to 53215000)

$

$

Not available

40

Ariens 06308000

WSHR-LK .250X.077 HVY YWZC

$0.99

$

Usually ships in 4-12 days

0

41

Ariens 03217300

SPACER .280X.625X.640

$15.99

$

Usually ships in 4-12 days

0

42

Ariens 05952500

@BLT-HEX .25-20X1.50 GR5 YWZC
(Superseded to 05901739)

$1.49

$

In Stock, Qty 8

0

43

Ariens 06439400

WSHR-FL-STL .328X.875X.062YWZC

$3.99

$

Usually ships in 4-12 days

0

44

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, only 4 left!

0
