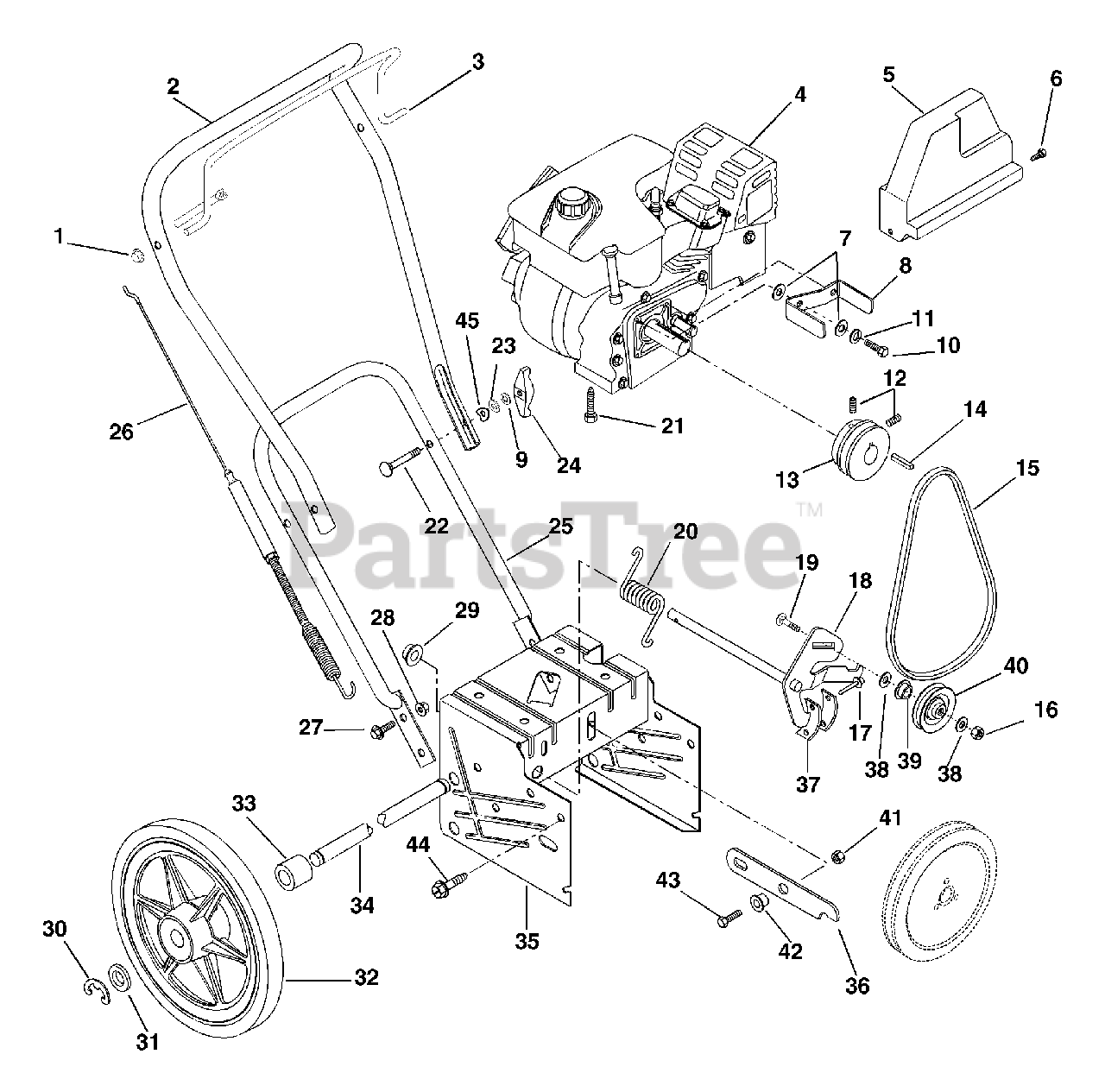

932500 (ST 520) - Ariens 20" Snow Blower, 5hp Tecumseh (SN: 000101 & Above) Engine, Belt Drive, Handlebars And Controls Parts Diagram

20" Snow Blower, 5hp Tecumseh

Engine, Belt Drive, Handlebars And Controls Parts Diagram

  • Title

1

Ariens 07008200

NUT-PUSH .312 DIA. PAL

$2.49

$

In Stock, Qty 20+

0

2

Ariens 03230200

UPPER HANDLEBAR
(Superseded to 03230251)

$

$

Not available

3

Ariens 03215651

BAIL

$

$

Not available

4

Ariens 08261500

ENGINE, 5HP TEC. OHV-RECOIL

$

$

Not available

5

Ariens 03238000

COVER, BELT

$44.99

$

In Stock, only 1 left!

0

6

Ariens 07411600

@SCR-TAP .25-20X.37 HWH YWZ TR
(Superseded to 07400125)

$0.99

$

In Stock, Qty 6

0

7

Ariens 06439100

WSHR-FL-STL .328X.87X.179 YWZC
(Superseded to 06401103)

$3.49

$

In Stock, only 1 left!

0

8

Ariens 03209251

BELT FINGER

$25.99

$

Usually ships in 4-12 days

0

9

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, only 4 left!

0

10

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06300100

WSHR-LK .313X.093 MED HICLR

$

$

Not available

12

Ariens 06005500

SCR-SET .31-18X.38 SKHCUPDL

$2.99

$

In Stock, Qty 17

0

13

Ariens 03207700

ENGINE SHEAVE

$146.99

$

Usually ships in 4-12 days

0

14

Ariens 06601300

KEY-SQ .188X1.0X.188 SAE 8630

$1.49

$

In Stock, Qty 5

0

15

Ariens 07211400

V-BELT, 4L-COGGED

$28.99

$

In Stock, Qty 5

0

16

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 06806700

RVT-TBLR .187X.437 RH ST PL

$1.49

$

In Stock, Qty 15

0

18

Ariens 53202300

BRAKE CLUTCH ARM W/LINING

$

$

Not available

19

Ariens 06212100

@BLT-RDHDSQNK .31-18X1.50 G5YZ
(Superseded to 06200233)

$1.49

$

In Stock, Qty 9

0

20

Ariens 08322000

SG-TORS .148X1.0X1.53

$14.99

$

Usually ships in 4-12 days

0

21

Ariens 07414100

@SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

$3.99

$

In Stock, Qty 20+

0

22

Ariens 06221600

@BLT-RDHDSQNK .31-18X2.25 G5YZ
(Superseded to 06200408)

$2.99

$

Usually ships in 4-12 days

0

23

Ariens 06439400

WSHR-FL-STL .328X.875X.062YWZC

$3.99

$

Usually ships in 4-12 days

0

24

Ariens 07531700

KNOB - WING .312-18 UNC
(Superseded to 07534800)

$7.99

$

In Stock, Qty 13

0

25

Ariens 03242051

HANDLEBAR, LOWER

$

$

Not available

26

Ariens 06945800

CABLE, AUGER DRIVE

$81.99

$

Usually ships in 4-12 days

0

27

Ariens 07047100

BLT SERHFWH .31-18X.62 GR5YWZC

$1.49

$

In Stock, only 3 left!

0

28

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, only 2 left!

0

29

Ariens 01208600

CAP, .50 ROD YWZC

$2.99

$

Usually ships in 4-12 days

0

30

Ariens 05708300

RG-RTNG-EXT .625X.042

$0.99

$

In Stock, only 4 left!

0

31

Ariens 06434900

WSHR-FL-STL .562X1.156X.095 YW

$

$

Not available

32

Ariens 07155200

WHEEL, 14 X 1.75 X .56
(Superseded to 53216400)

$134.99

$

Usually ships in 4-12 days

0

33

Ariens 03240800

SPACER, AXLE .571X.755X1.815

$13.99

$

Usually ships in 4-12 days

0

34

Ariens 03231200

AXLE

$14.99

$

Usually ships in 4-12 days

0

35

Ariens 03238800

FRAME, MAIN - ST 520

$

$

Not available

36

Ariens 03215151

ARM

$

$

Not available

37

Ariens 02217800

BRAKE LINING

$9.49

$

In Stock, only 1 left!

0

38

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 14

0

39

Ariens 01213100

SPCR, BRG .315X.50X.688X.281

$3.49

$

In Stock, Qty 6

0

40

Ariens 02457400

IDLER
(Superseded to 52007000)

$39.99

$

In Stock, Qty 15

0

41

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

42

Ariens 05513400

BSHG-FLG .265X.437X.250X.750

$2.49

$

In Stock, only 1 left!

0

43

Ariens 05932000

BLT-HEX .25-20X.63

$1.99

$

In Stock, only 1 left!

0

44

Ariens 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, only 4 left!

0

45

Ariens 06446800

WASHER,SADDLE-.320 X.937 X.062

$0.99

$

Usually ships in 4-12 days

0
