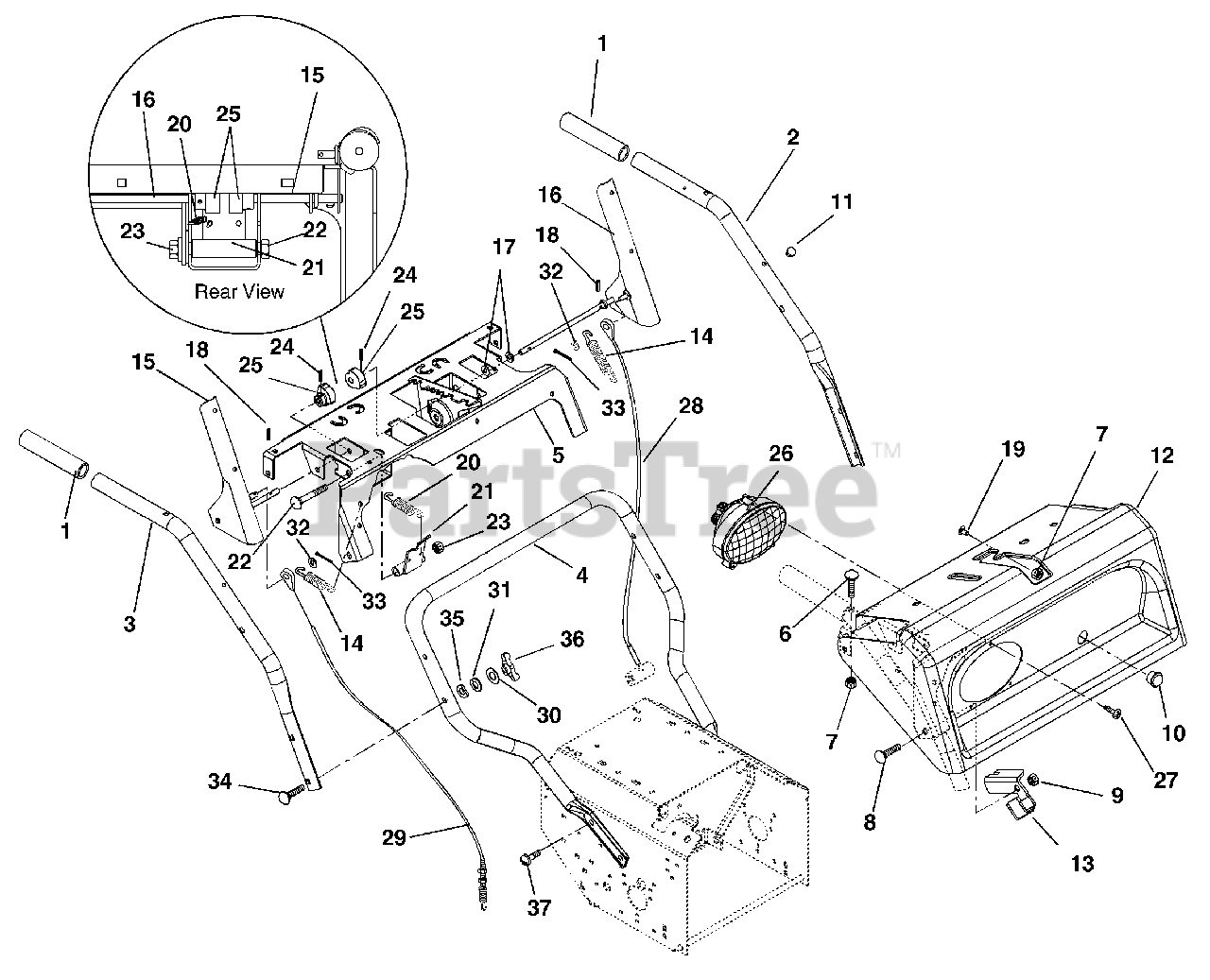

932503 (ST 724) - Ariens 24" Snow Blower, 7hp Tecumseh (SN: 000101 & Above) Handlebars And Controls Parts Diagram

24" Snow Blower, 7hp Tecumseh

Handlebars And Controls Parts Diagram

  • Title

1

Ariens 07518700

HANDLE GRIP
(Superseded to 07500239)

$3.99

$

In Stock, Qty 20+

0

2

Ariens 02491951

HANDLEBAR, UPPER-RH

$

$

Not available

3

Ariens 02492051

HANDLEBAR, UPPER-LH
(Superseded to 00428451)

$76.99

$

Usually ships in 4-12 days

0

4

Ariens 03242951

HANDLEBAR, LOWER

$

$

Not available

5

Ariens 02491651

PANEL, SUB

$265.99

$

Usually ships in 4-12 days

0

6

Ariens 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5ZC

$2.99

$

In Stock, only 2 left!

0

7

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

8

Ariens 06220200

@BLT-RDHDSQNK .31-18X1.75 G5YZ
(Superseded to 06200324)

$3.49

$

In Stock, Qty 10

0

9

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

10

Ariens 07511200

SNAP BUSHING

Note: (Models 101, 309)

$1.49

$

In Stock, Qty 5

0

11

Ariens 07511800

BUMPER

$3.99

$

Usually ships in 4-12 days

0

12

Ariens 53210800

PANEL W/DECAL - 824

Note: (Models 101, 309)

$

$

Not available

12

Ariens 53210900

PANEL W/DECAL - 724

Note: (Models 035, 503)

$

$

Not available

13

Ariens 03244951

BRACKET, CABLE ANCHOR

$5.99

$

Usually ships in 4-12 days

0

14

Ariens 08337100

SPRING-EXT .056X.50X3.76

$14.99

$

Usually ships in 4-12 days

0

15

Ariens 02493100

LEVER, RH-COATED
(Superseded to 52416600)

$62.99

$

In Stock, only 2 left!

0

16

Ariens 02493200

LEVER, LH-COATED
(Superseded to 52416700)

$83.99

$

In Stock, only 2 left!

0

17

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 05803400

PIN-ROLL .125X.75

$0.99

$

In Stock, only 2 left!

0

19

Ariens 06214300

BLT-RDHDSQSHNK.25-20X.50 YWZC
(Superseded to 06200305)

$1.99

$

In Stock, Qty 13

0

20

Ariens 08337000

SPRING-EXT .047X.438X1.45

Note: (Models 101, 309)

$6.49

$

In Stock, Qty 10

0

21

Ariens 02492200

ARM, INTERLOCK

Note: (Models 101, 309)

$

$

Not available

22

Ariens 05957800

@BLT-HEX .38-16X3.00 GR5 YWZC
(Superseded to 05901814)

Note: (Models 101, 309)

$2.99

$

In Stock, Qty 19

0

23

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

Note: (Models 101, 309)

$1.49

$

In Stock, Qty 20+

0

24

Ariens 05803400

PIN-ROLL .125X.75

Note: (Models 101, 309)

$0.99

$

In Stock, only 2 left!

0

25

Ariens 02492100

CAM, INTERLOCK
(Superseded to 03888100)

Note: (Models 101, 309)

$8.49

$

In Stock, only 2 left!

0

26

Ariens 02485000

HEADLAMP, OVAL W/ 1156 BULB
(Superseded to 52423200)

Note: (Models 101, 309)

$58.99

$

Usually ships in 4-12 days

0

27

Ariens 07416700

SCR-TAP 10-16X.75 HI-LO PPH

Note: (Models 101, 309)

$0.99

$

Usually ships in 4-12 days

0

28

Ariens 06947300

CABLE, TRACTION

Note: (Model 932101 [#101-19499], Model 932309 [#101-1500], Model 932035 [#101-5099], Model 932503 [101-1299])

$52.99

$

Usually ships in 4-12 days

0

28

Ariens 06948900

CABLE, TRACTION

Note: (Model 932101 [#19500-], Model 932309 [#1501-], Model 932035 [#5100-], Model 932503 [1300-])

$21.99

$

In Stock, only 2 left!

0

29

Ariens 06947600

CABLE, AUGER

$65.99

$

Usually ships in 4-12 days

0

30

Ariens 06439400

WSHR-FL-STL .328X.875X.062YWZC

$3.99

$

Usually ships in 4-12 days

0

31

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 5

0

32

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, only 3 left!

0

33

Ariens 06707400

@PIN-CTR .09X.50 EXTPRSQCT YWZ

$0.99

$

Usually ships in 4-12 days

0

34

Ariens 06221600

@BLT-RDHDSQNK .31-18X2.25 G5YZ
(Superseded to 06200408)

$3.49

$

Usually ships in 4-12 days

0

35

Ariens 06446800

WASHER,SADDLE-.320 X.937 X.062

$0.99

$

Usually ships in 4-12 days

0

36

Ariens 07531700

KNOB - WING .312-18 UNC
(Superseded to 07534800)

$3.99

$

In Stock, Qty 20+

0

37

Ariens 07047100

BLT SERHFWH .31-18X.62 GR5YWZC

$1.99

$

In Stock, Qty 5
