932504 (ST 524) - Ariens 24" Snow Blower, 5hp Tecumseh (SN: 000101 - 000999)

24" Snow Blower, 5hp Tecumseh

932504 (ST 524) - Ariens 24" Snow Blower, 5hp Tecumseh (SN: 000101 - 000999) > Parts Diagrams (7) > Engine And Belt Drive

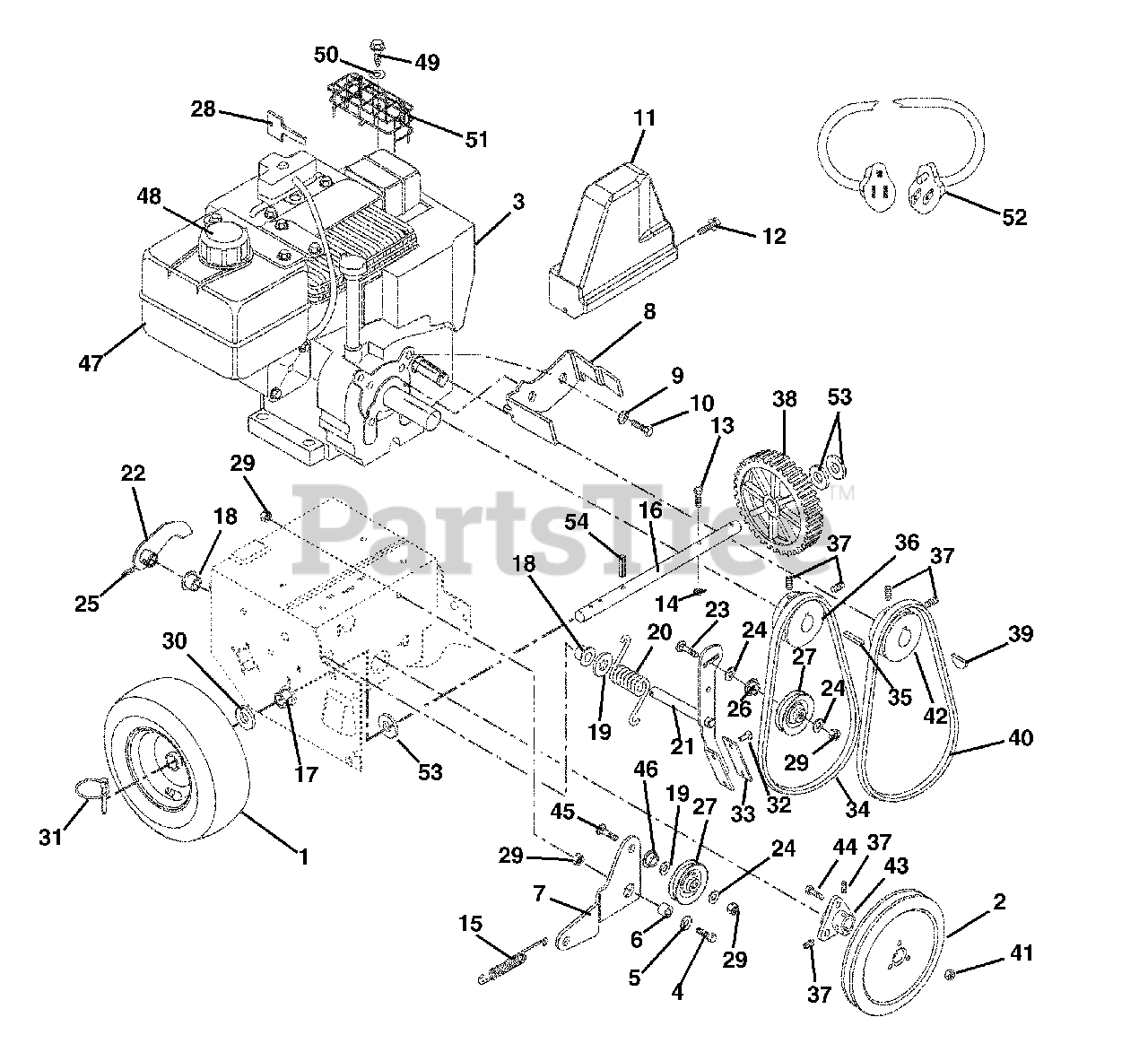

  • Title
07155800

1

WHEEL 5.00 X 6.00

Part# 07155800 (Superseded to 07100024)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $55.34

07105000

1

TUBE

Part# 07105000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $38.79

07121300

1

TIRE

Part# 07121300 (Superseded to 07160000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $55.84

07160000

1

TIRE/WHEEL ASSY 4.10-6 PIN-LOK

Part# 07160000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $55.84

07307400

2

PLY-V 8.0 X 1.25 3BLT SALEM

Part# 07307400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $33.48

08267700

3

ENGINE, TECUMSEH HSSK50 120V

Part# 08267700

Note: (036)

OEM Warranty Repair Part for Ariens

Not available

08264800

3

ENGINE, 7HP OHV TEC. - 120V

Part# 08264800

Note: (037)

OEM Warranty Repair Part for Ariens

Not available

08267900

3

ENGINE, TECUMSEH HSSK50

Part# 08267900

Note: (504)

OEM Warranty Repair Part for Ariens

Not available

08261400

3

ENGINE, 7HP OHV TEC. - RECOIL

Part# 08261400

Note: (505)

OEM Warranty Repair Part for Ariens

Not available

05947000

4

@BLT-HEX .31-18X.75 GR5 YWZC

Part# 05947000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06435700

5

@WSHR-FL-STL.38X.875X.083 YWZC

Part# 06435700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

01035800

6

SPACER BUSHING .5 X .32 X .163

Part# 01035800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

03206900

7

IDLER ARM

Part# 03206900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $18.39

03229051

8

FINGER, BELT

Part# 03229051

Note: (036, 504)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $22.30

03238151

8

FINGER, BELT

Part# 03238151

Note: (037, 505)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $19.23

06308600

9

@WSHR-LK .31X.078 REG YWZC

Part# 06308600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

05947300

10

BLT-HEX .31-24X.75 YWZC GR5

Part# 05947300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

03238000

11

COVER, BELT

Part# 03238000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $40.19

07411600

12

@SCR-TAP .25-20X.37 HWH YWZ TR

Part# 07411600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

05953000

13

BLT-HEX .25-20X1.75 GR8 YWZC

Part# 05953000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

06529700

14

@NUT-LK-CTR .25-20 YWZC

Part# 06529700

OEM Warranty Repair Part for Ariens

Not available

08317200

15

SG-TENS .047X.44X3.37 WLD 1.47

Part# 08317200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $14.48

03235800

16

AXLE SHAFT

Part# 03235800

Note: (Serial No.: 101-7999)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $74.35

03249500

16

SHAFT, AXLE - COMPACT PIN-LOCK

Part# 03249500

Note: (Serial No.: 8000-999999)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $22.30

05521600

17

BSHG-FLG .750X.873HEXX.53X1.18

Part# 05521600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

05503700

18

BSHG-FLG.500X.625X.312X.750NY

Part# 05503700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

06439600

19

WSHR-FL-STL .520X.810X.033YWZC

Part# 06439600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

08322000

20

SG-TORS .148X1.0X1.53

Part# 08322000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

53205100

21

CLUTCH ARM W/BRAKE PAD

Part# 53205100

Note: (Includes items 32 & 33)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $60.82

03231900

22

ARM-CLUTCH

Part# 03231900 (Superseded to 03231951)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $36.84

06219200

23

@BLT-RDHDSQNK .31-18X1.25 G5YZ

Part# 06219200

OEM Warranty Repair Part for Ariens

Not available

06435700

24

@WSHR-FL-STL.38X.875X.083 YWZC

Part# 06435700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

05802600

25

PIN-ROLL .156X.88

Part# 05802600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

01213100

26

SPCR, BRG .315X.50X.688X.281

Part# 01213100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

02457400

27

IDLER

Part# 02457400 (Superseded to 52007000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $42.43

07532000

28

KEY, PUSH/PULL - TECUMSEH

Part# 07532000 (Superseded to 07500108)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

06529800

29

@NUT-LK-CTR .31-18 YWZC

Part# 06529800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06441400

30

WSHR-FL-STL.754X1.125X.062YWZC

Part# 06441400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

07053700

31

PIN-LOK .31X1.75

Part# 07053700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

06806700

32

RVT-TBLR .187X.437 RH ST PL

Part# 06806700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

03229100

33

BRAKE LINING

Part# 03229100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $14.48

07219100

34

BELT,4L TO BE REPLACED07200021

Part# 07219100 (Superseded to 07200021)

Note: (036, 504)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $35.72

07232500

34

V-BELT, 4L-RAW EDGE

Part# 07232500

Note: (037, 505)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $22.30

06601300

35

KEY-SQ .188X1.0X.188 SAE 8630

Part# 06601300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

03225000

36

SHEAVE-ENGINE

Part# 03225000

Note: (036, 504)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $86.03

03229200

36

SHEAVE - ENGINE

Part# 03229200

Note: (037, 505)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $81.11

06005500

37

SCR-SET .31-18X.38 SKHCUPDL

Part# 06005500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

03226000

38

GEAR

Part# 03226000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $51.37

06601500

39

KEY-WDRF .125X.625X.250 SAE5

Part# 06601500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

07210600

40

V-BELT, 3L-COGGED

Part# 07210600

Note: (036, 504)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $20.07

07210700

40

V-BELT, 3L-COGGED

Part# 07210700

Note: (037, 505)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $20.07

06530400

41

@NUT-SPNLK-FLG .312-18 YWZC

Part# 06530400

OEM Warranty Repair Part for Ariens

Not available

03228400

42

SHEAVE - CAMSHAFT

Part# 03228400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $55.01

03205000

43

HUB

Part# 03205000

OEM Warranty Repair Part for Ariens

Not available

07005300

44

BLT-SERRDHD SL .31-18X.75 YZ

Part# 07005300 (Superseded to 07028700)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

06219200

45

@BLT-RDHDSQNK .31-18X1.25 G5YZ

Part# 06219200

OEM Warranty Repair Part for Ariens

Not available

01305900

46

BSHG, FLG .325X.499X.26X.88

Part# 01305900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

21533400

47

PLUG, SPARK

Part# 21533400

Note: (036, 504)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.02

21533500

47

PLUG, SPARK

Part# 21533500

Note: (037, 505)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.99

07531800

48

CAP, FUEL - TECUMSEH

Part# 07531800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $6.65

07413600

49

SCR-TAP 10-16X.75 YWZC

Part# 07413600

Note: (504)

OEM Warranty Repair Part for Ariens

Not available

06442700

50

@WSHR-FL-STL.219X.50X.049 YWZC

Part# 06442700

Note: (504)

OEM Warranty Repair Part for Ariens

Not available

03227000

51

MUFFLER GUARD 5 HP

Part# 03227000

Note: (504)

OEM Warranty Repair Part for Ariens

Not available

02483100

52

CORD, ELECTRIC START CORD 120V

Part# 02483100

Note: (036, 037)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $16.71

06444200

53

WSHR-FL-STL .755X1.25X.125 YZ

Part# 06444200 (Superseded to 06441500)

OEM Warranty Repair Part for Ariens

Not available

05800300

54

PIN-ROLL .188X1.25

Part# 05800300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40
