932505 (ST 724) - Ariens 24" Snow Blower, 7hp Tecumseh (SN: 001501 - 002300) Discharge Chute Crank Parts Diagram

24" Snow Blower, 7hp Tecumseh

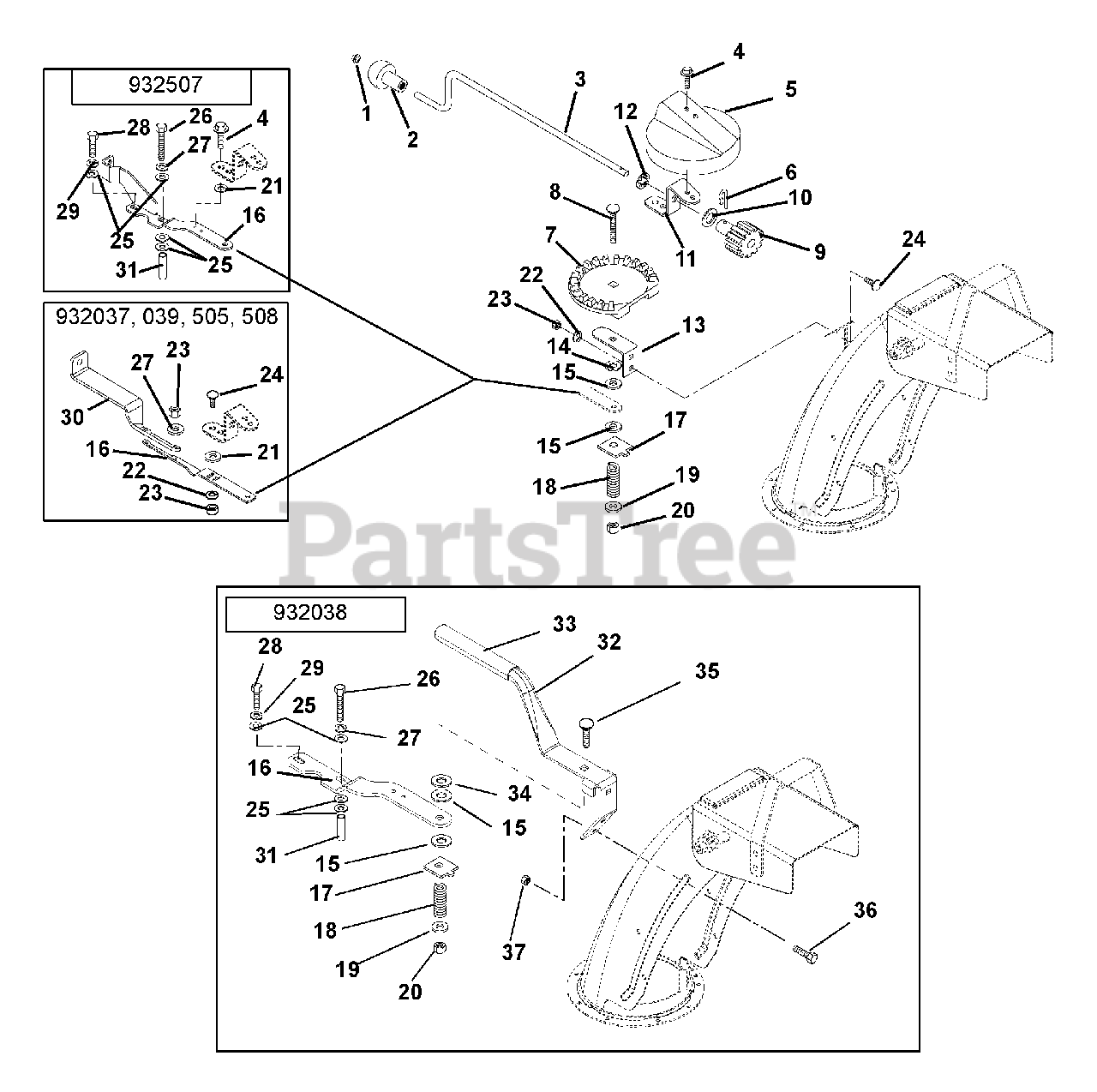

Discharge Chute Crank Parts Diagram

  • Title

1

Ariens 01019800

CAP, 3/8 ROD YWZC

Note: (037, 039, 505, 507, 508)

$2.99

$

In Stock, only 1 left!

0

2

Ariens 07508300

KNOB

Note: (037, 039, 505, 507, 508)

$14.99

$

In Stock, only 2 left!

0

3

Ariens 03247700

CRANK, CHUTE

Note: (037, 039, 505, 507, 508)

$37.99

$

Usually ships in 4-12 days

0

4

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

Note: (037, 039, 505, 508)

$0.99

$

In Stock, Qty 20+

0

4

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

Note: (507)

$0.99

$

In Stock, Qty 20+

0

5

Ariens 03223000

GEAR COVER

Note: (037, 039, 505, 507, 508)

$13.99

$

In Stock, only 2 left!

0

6

Ariens 06714500

PIN, SPRING CLIP

Note: (037, 039, 505, 507, 508)

$2.99

$

In Stock, Qty 18

0

7

Ariens 03222900

CHUTE GEAR

Note: (037, 039, 505, 507, 508)

$11.99

$

In Stock, Qty 8

0

8

Ariens 06224400

@BLT-RDHDSQNK .38-16X2.50 G5YZ
(Superseded to 06200234)

Note: (037, 039, 505, 507, 508)

$4.99

$

In Stock, Qty 10

0

9

Ariens 53204400

PINION GEAR W/BRACKET
(Superseded to 53214200)

Note: (contains Items 10-12)

$50.99

$

In Stock, only 2 left!

0

10

Ariens 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

Note: (037, 039, 505, 507, 508)

$0.99

$

In Stock, Qty 11

0

11

Ariens 03220551

BRACKET-GEAR
(Superseded to 53214200)

Note: (037, 039, 505, 507, 508)

$50.99

$

In Stock, only 2 left!

0

12

Ariens 03224300

PUSHNUT .625

Note: (037, 039, 505, 507, 508)

$2.49

$

In Stock, Qty 5

0

13

Ariens 03220751

GEAR STRAP

Note: (037, 039, 505, 507, 508)

$27.99

$

Usually ships in 4-12 days

0

14

Ariens 06439300

WSHR-FL-STL .380X1.50X.062 YWZ
(Superseded to 06401028)

Note: (037, 039, 505, 507, 508)

$3.49

$

In Stock, Qty 20+

0

15

Ariens 01123800

FRICTION WASHER

$4.99

$

In Stock, Qty 13

0

16

Ariens 03247851

BRACKET, CRANK SUPPORT

Note: (507)

$

$

Not available

16

Ariens 03242751

BRACKET, CHUTE SUPPORT

Note: (037, 039, 505, 508)

$

$

Not available

16

Ariens 03243051

BRACE, CHUTE CONTROL

Note: (038)

$

$

Not available

17

Ariens 03219000

FRICTION PLATE

$32.99

$

In Stock, only 2 left!

0

18

Ariens 08320900

SG-COMP .187X.56X1.62

$5.49

$

In Stock, Qty 6

0

19

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

Note: (037, 039, 505, 507, 508)

$0.99

$

In Stock, only 3 left!

0

22

Ariens 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

Note: (507)

$0.99

$

In Stock, Qty 11

0

22

Ariens 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

Note: (037, 039, 505, 508)

$0.99

$

In Stock, Qty 11

0

23

Ariens 06533200

@NUT-HEX .25-20 YWZC
(Superseded to 06500916)

Note: (507)

$0.99

$

In Stock, Qty 8

0

23

Ariens 06533200

@NUT-HEX .25-20 YWZC
(Superseded to 06500916)

Note: (037, 039, 505, 508)

$0.99

$

In Stock, Qty 8

0

24

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

Note: (507)

$1.49

$

Usually ships in 4-12 days

0

24

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

Note: (037, 039, 505, 508)

$1.49

$

Usually ships in 4-12 days

0

25

Ariens 06439400

WSHR-FL-STL .328X.875X.062YWZC

Note: (038)

$3.99

$

Usually ships in 4-12 days

0

25

Ariens 06439400

WSHR-FL-STL .328X.875X.062YWZC

Note: (507)

$3.99

$

Usually ships in 4-12 days

0

26

Ariens 05952500

@BLT-HEX .25-20X1.50 GR5 YWZC
(Superseded to 05901739)

Note: (038, 507)

$1.99

$

In Stock, only 4 left!

0

27

Ariens 06308000

WSHR-LK .250X.077 HVY YWZC

Note: (038, 507)

$0.99

$

Usually ships in 4-12 days

0

27

Ariens 06308000

WSHR-LK .250X.077 HVY YWZC

Note: (037, 039, 505, 508)

$0.99

$

Usually ships in 4-12 days

0

28

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

Note: (038, 507)

$1.99

$

In Stock, Qty 20+

0

29

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

Note: (038, 507)

$0.99

$

In Stock, Qty 5

0

30

Ariens 03241151

SUPPORT, CHUTE CRANK

Note: (037, 039, 505, 508)

$11.99

$

Usually ships in 4-12 days

0

31

Ariens 03217300

SPACER .280X.625X.640

Note: (038, 507)

$15.99

$

Usually ships in 4-12 days

0

32

Ariens 03238951

CHUTE HANDLE, PAINTED
(Superseded to 53215000)

Note: (038)

$

$

Not available

33

Ariens 00345700

GRIP, CHUTE HANDLE, ORANGE

Note: (038)

$

$

Not available

34

Ariens 06442000

@WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

Note: (038)

$2.99

$

In Stock, Qty 20+

0

35

Ariens 06213400

@BLT-RDHDSQNK .38-16X2.25 G5YZ
(Superseded to 06200301)

Note: (038)

$4.99

$

In Stock, Qty 20+

0

36

Ariens 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

Note: (038)

$0.99

$

In Stock, only 3 left!

0

37

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

Note: (038)

$0.99

$

In Stock, Qty 20+

0
