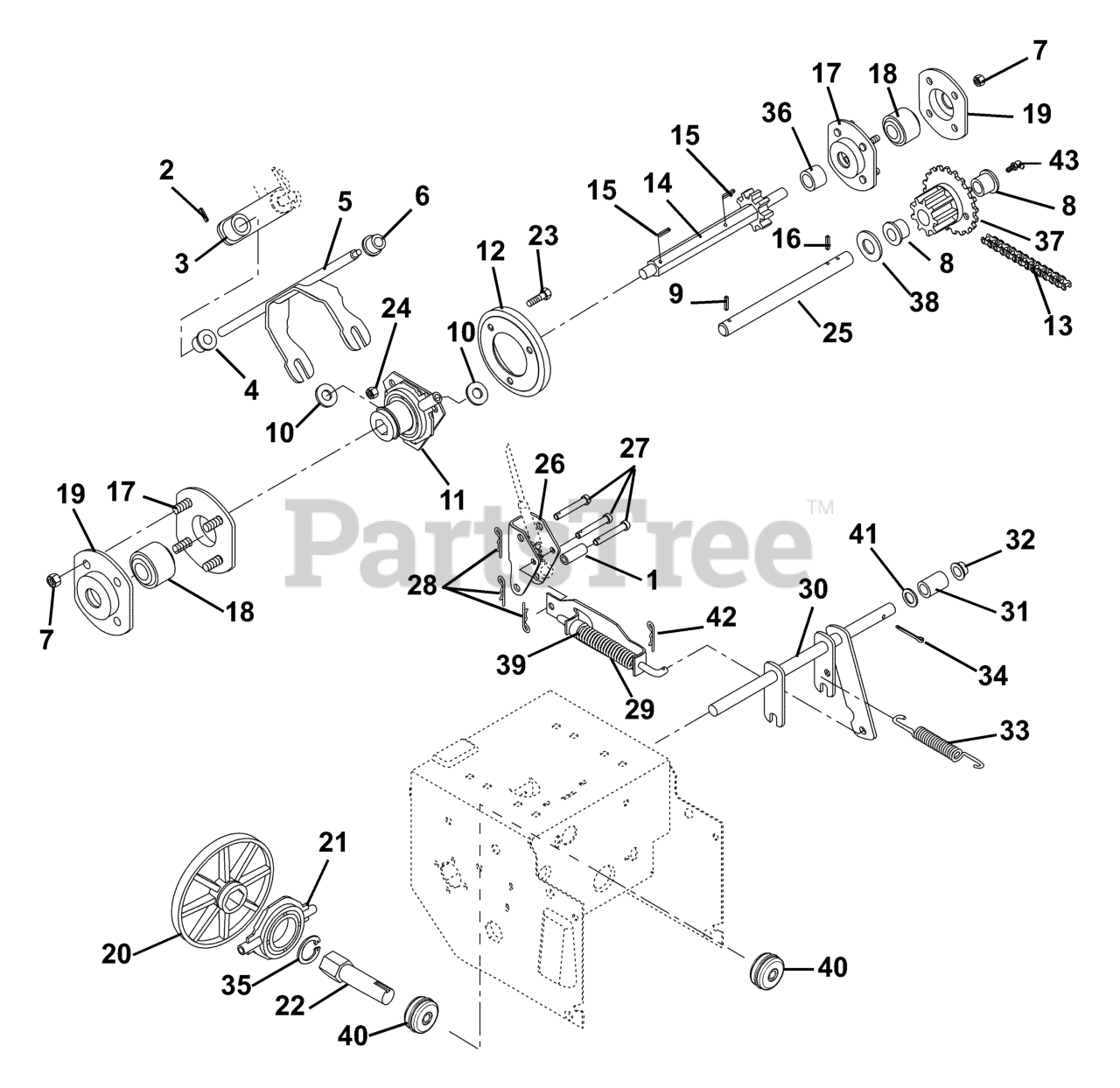

932506 (ST 8526) - Ariens 26" Snow Blower, 8.5hp Tecumseh (SN: 000101 & Above) Friction Drive Parts Diagram

26" Snow Blower, 8.5hp Tecumseh

Friction Drive Parts Diagram

  • Title

1

Ariens 03242100

SPACER .325 X.625 X.455

$3.99

$

Usually ships in 4-12 days

0

2

Ariens 05802600

PIN-ROLL .156X.88

$2.49

$

In Stock, Qty 5

0

3

Ariens 03248500

WMT,SPEED CHANGE ARM

$81.99

$

Usually ships in 4-12 days

0

4

Ariens 05502100

BSHG-FLG .500X.625X.500X.750

$3.99

$

In Stock, Qty 19

0

5

Ariens 03231700

FORK-SPEED

$131.99

$

In Stock, only 1 left!

0

6

Ariens 05514500

BSHG-FLG .325X.444X.440X.560

$3.99

$

In Stock, Qty 9

0

7

Ariens 06530600

NUT-LK-DUAL FACE 10-24 YWZC

$0.99

$

In Stock, only 3 left!

0

8

Ariens 05500022

BSHG-FLG .625X.750X.500X.875
(Superseded to 05500111)

$2.49

$

In Stock, Qty 20+

0

9

Ariens 05802900

PIN-ROLL .156X1.00

$0.99

$

In Stock, Qty 16

0

10

Ariens 06439200

WSHR-FL-STL .505X1.00X.062YWZC
(Superseded to 06401112)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 03235300

SHIFT CARRIER

$

$

Not available

12

Ariens 03248300

DISC, FRICTION - 730 MAT'L

$41.99

$

In Stock, Qty 20+

0

13

Ariens 03248600

CHAIN, ROLLER #41 X 27 P

$14.99

$

Usually ships in 4-12 days

0

14

Ariens 03248400

WMT, HEX SHAFT
(Superseded to 53214900)

$131.99

$

In Stock, only 3 left!

0

15

Ariens 05804700

PIN-ROLL .125X.88

$0.99

$

In Stock, Qty 6

0

16

Ariens 05800900

PIN-ROLL .125X1.00

$0.99

$

In Stock, only 4 left!

0

17

Ariens 00308500

BEARING FLANGE

$23.99

$

In Stock, only 2 left!

0

18

Ariens 05435200

BRG-BALL .437X1.375X.437

$10.99

$

In Stock, Qty 20+

0

19

Ariens 03226900

BEARING FLANGE

$18.99

$

In Stock, only 2 left!

0

20

Ariens 03201100

FRICTION PLATE

$76.99

$

In Stock, only 2 left!

0

21

Ariens 03225900

BEARING ASSEMBLY

$83.99

$

In Stock, only 4 left!

0

22

Ariens 00291600

SPINDLE SHAFT, 932 DRIVE PLATE

$

$

Not available

23

Ariens 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, only 3 left!

0

24

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

25

Ariens 03232600

SHAFT-PINION
(Superseded to 53216000)

Note: (105-S/N 000101-024182 & 024301 - 024322, 506 - S/N 000101 - 000846)

$73.99

$

Usually ships in 4-12 days

0

25

Ariens 00368300

SHAFT, PINION
(Superseded to 53216000)

Note: (105-S/N 024183-024300 & 024323 & up, 506-S/N 000847 & Up)

$73.99

$

Usually ships in 4-12 days

0

26

Ariens 03248000

BRACKET, TRACTION ARM

$56.99

$

Usually ships in 4-12 days

0

27

Ariens 06714700

PIN,CLEVIS .243/.248 X 1.38 YZ

$2.99

$

Usually ships in 4-12 days

0

28

Ariens 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 5

0

29

Ariens 53209100

TRACTION CLUTCH ASSEMBLY

$96.99

$

Usually ships in 4-12 days

0

30

Ariens 03221100

CLUTCH FORK

$84.99

$

Usually ships in 4-12 days

0

31

Ariens 03231500

SPACER .504X.748X.321

$15.99

$

Usually ships in 4-12 days

0

32

Ariens 01208600

CAP, .50 ROD YWZC

$2.99

$

Usually ships in 4-12 days

0

33

Ariens 08314100

SG-TENS .063X.44X1.56

$6.49

$

In Stock, Qty 6

0

34

Ariens 06707100

@PIN-CTR .12X1.00 EXTPRSQCT YZ

$0.99

$

In Stock, Qty 10

0

35

Ariens 05704300

RG-RTNG-EXT 1.250X.050

$4.99

$

In Stock, only 2 left!

0

36

Ariens 03248700

SPACER,.45 X .62 X 1.23

$3.99

$

Usually ships in 4-12 days

0

37

Ariens 53211000

ASSY,PINION & SPROCKET

Note: (Includes Item 8)

$119.99

$

In Stock, only 2 left!

0

38

Ariens 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

$0.99

$

In Stock, Qty 12

0

39

Ariens 03242100

SPACER .325 X.625 X.455

$3.99

$

Usually ships in 4-12 days

0

40

Ariens 05400004

BRG-BALL,.625X1.38X.43 SNAP RG

$12.99

$

Usually ships in 4-12 days

0

41

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, only 4 left!

0

42

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

43

Ariens 07029700

DRIVE FITTING, HYD. BRIGHT ZC

Note: (105 - S/N 000101-024182 & 024301-024322, 506- S/N 000101 - 000846)

$12.99

$

Usually ships in 4-12 days

0
