932506 (ST 8526) - Ariens 26" Snow Blower, 8.5hp Tecumseh (SN: 000101 & Above) Gear Case And Impeller Parts Diagram

26" Snow Blower, 8.5hp Tecumseh

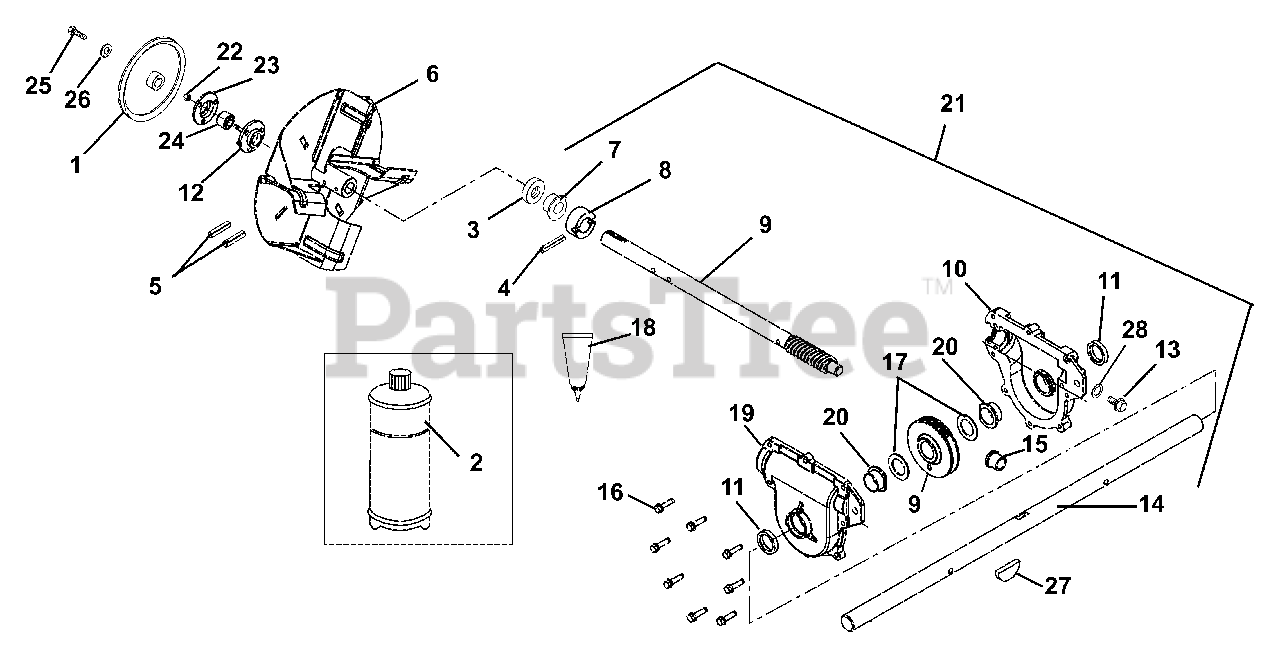

Gear Case And Impeller Parts Diagram

  • Title

1

Ariens 00258500

PULLEY, 4L W/HUB, .87 X 8.5
(Superseded to 52610800)

$60.99

$

Usually ships in 4-12 days

0

2

Ariens 00008000

ARIENS 16 OZ.BOTTLE OF L2 LUBE
(Superseded to 00068800)

$17.99

$

In Stock, Qty 13

0

3

Ariens 05600001

SEAL-OIL .875X1.375X.25 RBR OD

$5.99

$

In Stock, Qty 10

0

4

Ariens 05806800

PIN-GRV .250X1.50 TP E

$3.49

$

In Stock, only 1 left!

0

5

Ariens 05803700

PIN-ROLL .250X1.75

$0.99

$

In Stock, only 2 left!

0

6

Ariens 00258251

IMPELLER-14" 4 BLADE

$232.99

$

Usually ships in 4-12 days

0

7

Ariens 05500008

BSHG-FLG .876 X 1.500 X .750

$10.99

$

In Stock, only 3 left!

0

8

Ariens 00255100

THRUST COLLAR, .875" ID

$6.49

$

In Stock, only 1 left!

0

9

Ariens 52419600

ASSY, WORM SHAFT & GEAR

$162.99

$

In Stock, only 1 left!

0

10

Ariens 00254100

GEARCASE, ALUMINUM, LH
(Superseded to 52104900)

$86.99

$

Usually ships in 4-12 days

0

11

Ariens 05618800

SEAL-OIL 1.000X1.375X.250

$10.99

$

In Stock, Qty 10

0

12

Ariens 00301700

BEARING FLANGE

$17.99

$

In Stock, Qty 8

0

13

Ariens 07417000

SCR-TAP .38-16X.75 ROLOK YZ WX
(Superseded to 07400201)

$3.49

$

In Stock, only 1 left!

0

14

Ariens 00257500

SHAFT, RAKE-26"

$125.99

$

Usually ships in 4-12 days

0

15

Ariens 05500007

BSHG-FLG .629 X 1.000 X .750

$10.99

$

In Stock, only 3 left!

0

16

Ariens 07412400

@SCR-TAP .25-20X1.00 HWH TR YZ
(Superseded to 07400133)

$2.99

$

In Stock, Qty 5

0

17

Ariens 06416600

WSHR-HRD-THRS 1.007X1.542X.062

$2.99

$

In Stock, Qty 20+

0

18

Ariens 00031700

LOCTITE 518 GASKET--6ML TUBE

$17.99

$

In Stock, Qty 8

0

19

Ariens 00254000

GEARCASE, ALUMINUM, RH

$96.99

$

Usually ships in 4-12 days

0

20

Ariens 05520500

BSHG-FLG 1.003X1.5X.625

$9.99

$

In Stock, Qty 6

0

21

Ariens 53213600

GEARCASE ASS'Y - 26" ALUMINUM

$373.99

$

Usually ships in 4-12 days

0

22

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

23

Ariens 01014200

BEARING FLANGE

$5.99

$

In Stock, only 3 left!

0

24

Ariens 05409300

BRG-BALL .876 X 1.750 X .50

$34.99

$

In Stock, Qty 10

0

25

Ariens 05900012

BLT-HEX .31-24X1.0 GR5 YZ EP80
(Superseded to 05947300)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, only 4 left!

0

27

Ariens 06600800

KEY-WDRF .25X.875X.375 SAE A

$3.99

$

In Stock, only 2 left!

0

28

Ariens 06442500

WSHR-FIBER .437X.656X.032

$0.99

$

Usually ships in 4-12 days

0
