932506 (ST 8526) - Ariens 26" Snow Blower, 8.5hp Tecumseh (SN: 000101 & Above) Handlebars And Controls Parts Diagram

26" Snow Blower, 8.5hp Tecumseh

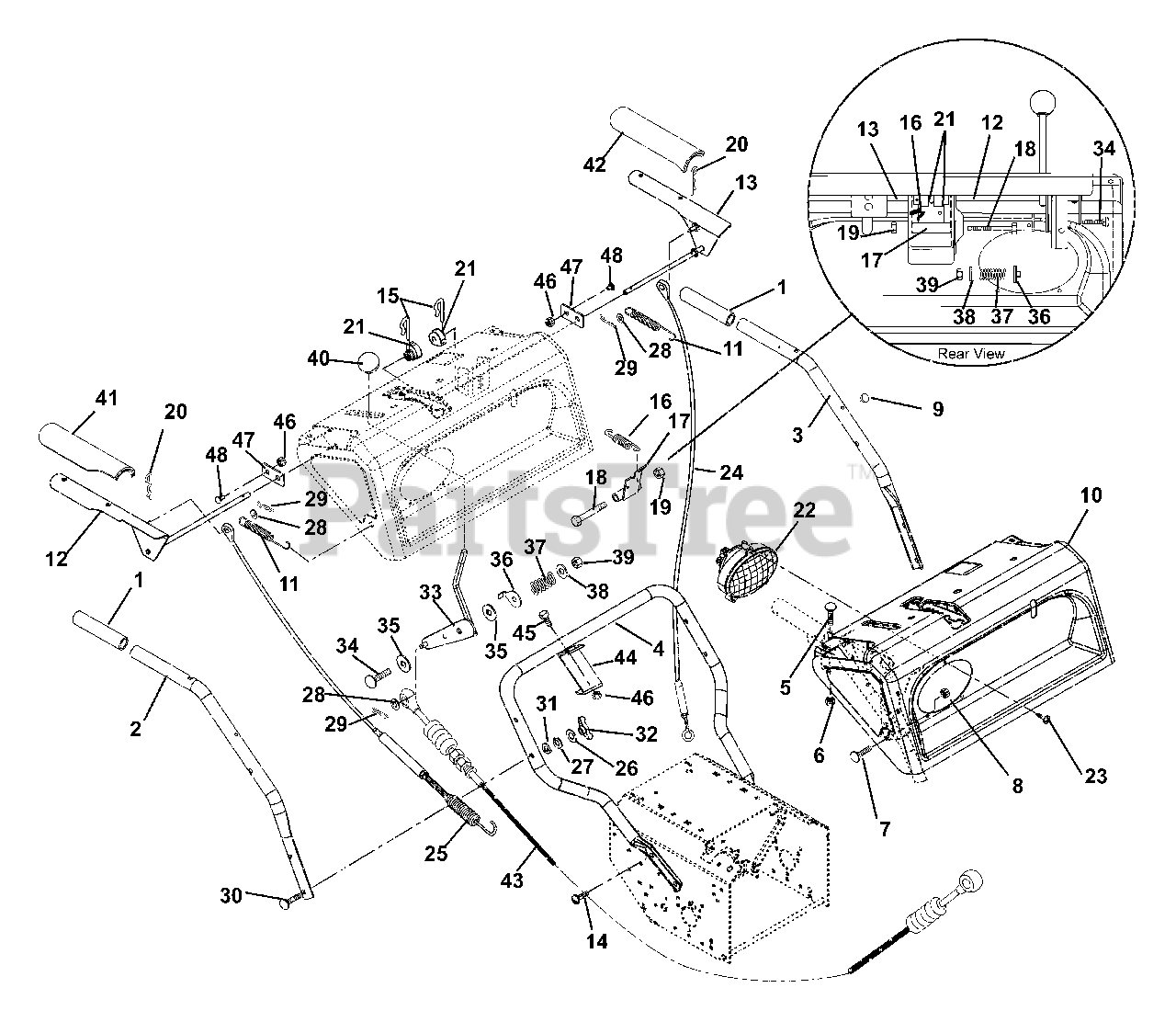

Handlebars And Controls Parts Diagram

  • Title

1

Ariens 07518700

HANDLE GRIP
(Superseded to 07500239)

$3.99

$

In Stock, Qty 20+

0

2

Ariens 02491951

HANDLEBAR, UPPER-RH

$

$

Not available

3

Ariens 02492051

HANDLEBAR, UPPER-LH
(Superseded to 00428451)

$76.99

$

Usually ships in 4-12 days

0

4

Ariens 03242951

HANDLEBAR, LOWER

$

$

Not available

5

Ariens 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5ZC

$2.99

$

In Stock, only 2 left!

0

6

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 06220200

@BLT-RDHDSQNK .31-18X1.75 G5YZ
(Superseded to 06200324)

$3.49

$

In Stock, Qty 10

0

8

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

9

Ariens 07511800

BUMPER

$3.99

$

Usually ships in 4-12 days

0

10

Ariens 53213700

PANEL W/DECALS - HYBRID

$

$

Not available

11

Ariens 08335400

SG-TENS .051X.50X4.87

$16.99

$

In Stock, only 3 left!

0

12

Ariens 00274251

LEVER, RH
(Superseded to 52419900)

$65.99

$

In Stock, Qty 19

0

13

Ariens 00274351

LEVER, LH
(Superseded to 52419800)

$79.99

$

In Stock, only 2 left!

0

14

Ariens 07047100

BLT SERHFWH .31-18X.62 GR5YWZC

$1.99

$

In Stock, Qty 5

0

15

Ariens 06714500

PIN, SPRING CLIP

$2.99

$

In Stock, Qty 19

0

16

Ariens 08337000

SPRING-EXT .047X.438X1.45

$6.49

$

In Stock, Qty 10

0

17

Ariens 00356900

ARM, INTERLOCK

$40.99

$

Usually ships in 4-12 days

0

18

Ariens 05957800

@BLT-HEX .38-16X3.00 GR5 YWZC
(Superseded to 05901814)

$2.99

$

In Stock, Qty 19

0

19

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, only 4 left!

0

21

Ariens 02492100

CAM, INTERLOCK
(Superseded to 03888100)

$8.49

$

In Stock, only 2 left!

0

22

Ariens 02485000

HEADLAMP, OVAL W/ 1156 BULB
(Superseded to 52423200)

$58.99

$

Usually ships in 4-12 days

0

23

Ariens 07416700

SCR-TAP 10-16X.75 HI-LO PPH

$0.99

$

Usually ships in 4-12 days

0

24

Ariens 06948900

CABLE, TRACTION

$21.99

$

In Stock, only 2 left!

0

25

Ariens 06900007

CABLE, AUGER-HYBRID

$25.99

$

In Stock, only 2 left!

0

26

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

27

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 5

0

28

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, only 3 left!

0

29

Ariens 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 5

0

30

Ariens 06221600

@BLT-RDHDSQNK .31-18X2.25 G5YZ
(Superseded to 06200408)

$3.49

$

Usually ships in 4-12 days

0

31

Ariens 06446800

WASHER,SADDLE-.320 X.937 X.062

$0.99

$

Usually ships in 4-12 days

0

32

Ariens 07531700

KNOB - WING .312-18 UNC
(Superseded to 07534800)

$3.99

$

In Stock, Qty 20+

0

33

Ariens 00273600

LEVER, DEFLECTOR

$61.99

$

Usually ships in 4-12 days

0

34

Ariens 06224300

@BLT-RDHDSQNK .38-16X2.00 G5YZ
(Superseded to 06200314)

$3.99

$

In Stock, Qty 10

0

35

Ariens 01123800

FRICTION WASHER

$4.99

$

In Stock, Qty 13

0

36

Ariens 00184100

FLANGE, PRESSURE

$27.99

$

In Stock, only 1 left!

0

37

Ariens 08320900

SG-COMP .187X.56X1.62

$5.49

$

In Stock, Qty 6

0

38

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

39

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

40

Ariens 07533500

KNOB,BALL -BLACK 1.47" .375-16

$10.99

$

In Stock, only 2 left!

0

41

Ariens 02496400

GRIP, CLUTCH LEVER RH

$8.49

$

Usually ships in 4-12 days

0

42

Ariens 02496500

GRIP, CLUTCH LEVER LH

$10.99

$

Usually ships in 4-12 days

0

43

Ariens 06945001

CABLE, DEFLECTOR CONTROL

$73.99

$

In Stock, only 2 left!

0

44

Ariens 00292751

BRACKET, CHUTE CABLE

$

$

Not available

45

Ariens 05952500

@BLT-HEX .25-20X1.50 GR5 YWZC
(Superseded to 05901739)

$1.99

$

In Stock, only 4 left!

0

46

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

47

Ariens 00184751

BRACKET, RETAINING

$24.99

$

In Stock, only 1 left!

0

48

Ariens 06220600

@BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$1.49

$

In Stock, Qty 20+

0
