932514 - Ariens Sno-Brush 28" Power Brush, 5.5hp Tecumseh (SN: 000101 & Above) Handlebars And Controls Parts Diagram

Sno-Brush 28" Power Brush, 5.5hp Tecumseh

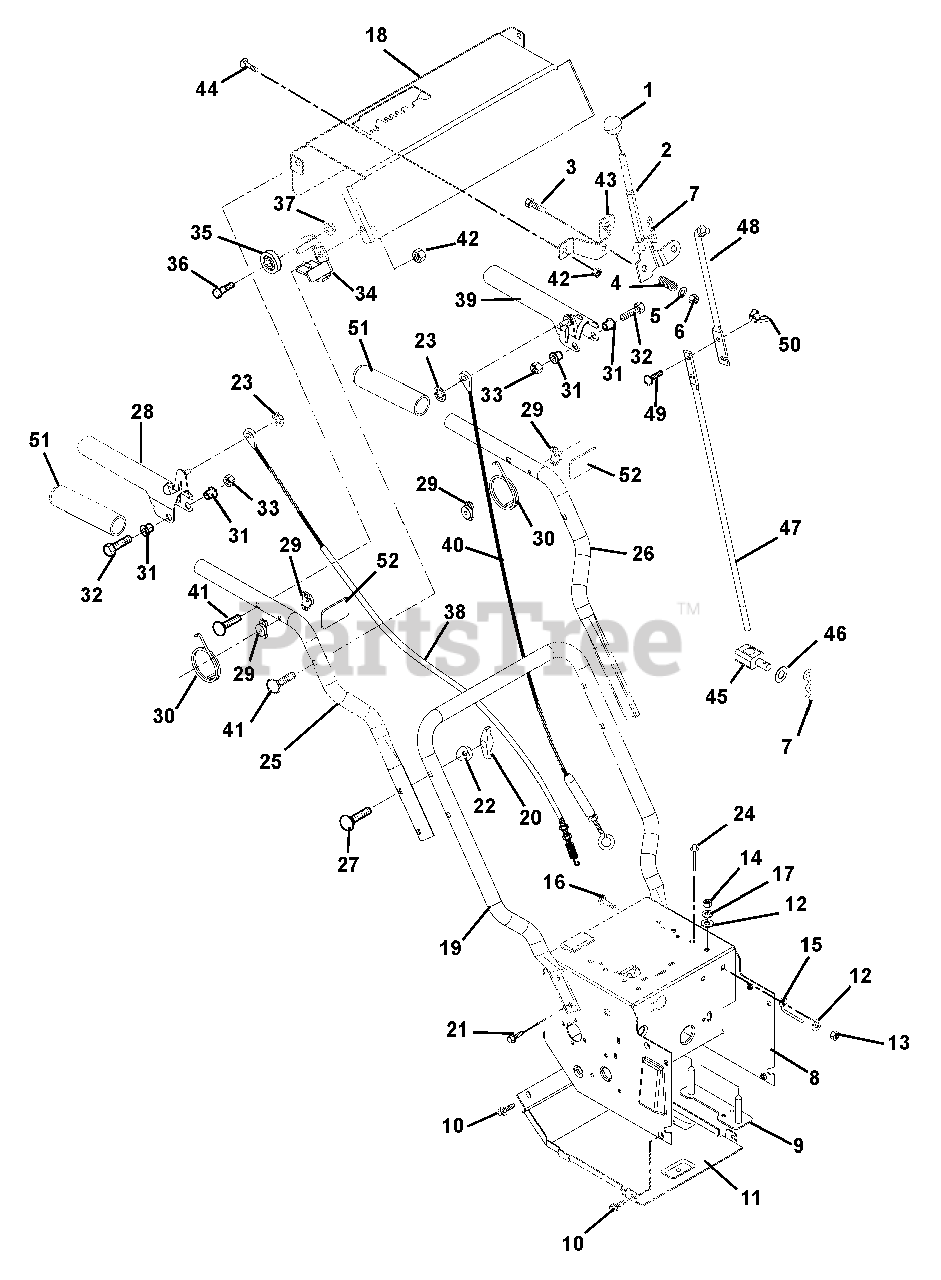

Handlebars And Controls Parts Diagram

  • Title
1

Ariens 07533500

KNOB,BALL -BLACK 1.47" .375-16

$9.45

$

In Stock, Qty 6

0

2

Ariens 03247900

WMT, SHIFT LEVER

$65.96

$

Usually ships in 4-12 days

0

3

Ariens 05963300

@BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$2.80

$

In Stock, only 1 left!

0

4

Ariens 08335700

SG-COMP .125X.781X1.250

$8.89

$

In Stock, only 1 left!

0

5

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$2.24

$

In Stock, Qty 20+

0

6

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$2.24

$

In Stock, Qty 20+

0

7

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$1.96

$

In Stock, Qty 20+

0

8

Ariens 00397359

WELDMENT, FRAME - COMPACT SNOW

$

$

Not available

9

Ariens 00188400

STRAP, ENGINE BOLT-WELDMENT

$19.12

$

Usually ships in 4-12 days

0

10

Ariens 07411600

@SCR-TAP .25-20X.37 HWH YWZ TR
(Superseded to 07400125)

$1.96

$

In Stock, Qty 20+

0

11

Ariens 03232459

COVER BOTTOM

$49.14

$

In Stock, Qty 6

0

12

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$2.18

$

In Stock, Qty 20+

0

13

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$2.52

$

In Stock, Qty 20+

0

14

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.96

$

In Stock, Qty 20+

0

15

Ariens 03236300

BELT FINGER LOWER

$5.53

$

Usually ships in 4-12 days

0

16

Ariens 06220800

@BLT-RHDSSQNK .31-18X.75 G5YZ
(Superseded to 06200309)

$2.80

$

In Stock, Qty 20+

0

17

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$2.24

$

In Stock, Qty 20+

0

18

Ariens 53214300

CONTROL PANEL W/DECAL

$77.42

$

Usually ships in 4-12 days

0

19

Ariens 00426951

HANDLEBAR, LOWER - COMPACT

$86.03

$

Usually ships in 4-12 days

0

20

Ariens 07531700

KNOB - WING .312-18 UNC
(Superseded to 07534800)

$9.89

$

In Stock, Qty 5

0

21

Ariens 07028500

BLT-SERHFWH .38-16X.75 YWZC
(Superseded to 07001824)

$2.80

$

In Stock, Qty 20+

0

22

Ariens 07500005

SPACER, HANDLEBAR

$2.18

$

In Stock, Qty 20+

0

23

Ariens 05717600

RG-RTNG-EXT .250X.010

$1.96

$

In Stock, Qty 20+

0

24

Ariens 06813600

RVT-POP .187X.45 DOME SS FBF64
(Superseded to 06800140)

$1.96

$

In Stock, Qty 5

0

25

Ariens 00427051

HANDLEBAR, UPPER - RH COMPACT

$55.29

$

Usually ships in 4-12 days

0

26

Ariens 00427151

HANDLEBAR, UPPER - LH COMPACT

$55.29

$

Usually ships in 4-12 days

0

27

Ariens 06221600

@BLT-RDHDSQNK .31-18X2.25 G5YZ
(Superseded to 06200408)

$2.99

$

Usually ships in 4-12 days

0

28

Ariens 00398351

PADDLE, CLUTCH - RH COMPACT

$24.54

$

Usually ships in 4-12 days

0

29

Ariens 05500040

SPACER, HANDLEBAR

$3.47

$

Usually ships in 4-12 days

0

30

Ariens 08300026

SPRING, TORSION

$5.53

$

Usually ships in 4-12 days

0

31

Ariens 00399300

BSHG, FLG .266X.42X.150 PM

$3.30

$

In Stock, only 3 left!

0

32

Ariens 05956700

@BLT-HEX .25-20X2.25 GR5 YWZC
(Superseded to 05901636)

$2.18

$

In Stock, only 1 left!

0

33

Ariens 06530900

NUT-JAM-NYL .250-20 W/INSERTYZ

$1.96

$

In Stock, Qty 5

0

34

Ariens 00398700

BRACKET, CABLE MOUNT

$

$

Not available

35

Ariens 07300012

PULLEY, CABLE

$6.65

$

In Stock, Qty 9

0

36

Ariens 07000021

BOLT, SHLDR-.375X.375X.25-20
(Superseded to 07001737)

$3.58

$

Usually ships in 4-12 days

0

37

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$2.24

$

In Stock, Qty 20+

0

38

Ariens 06900022

CABLE, AUGER

$35.72

$

In Stock, only 1 left!

0

39

Ariens 00398151

PADDLE, CLUTCH - LH COMPACT

$24.54

$

In Stock, only 1 left!

0

40

Ariens 06900023

CABLE, TRACTION

$15.93

$

In Stock, only 1 left!

0

41

Ariens 06200009

BLT-RDHDXLSQNK .31-18X1.5 G5YZ
(Superseded to 06119100)

$

$

Not available

42

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$2.80

$

In Stock, Qty 20+

0

43

Ariens 00398451

BRACKET, SHIFT MOUNT

$

$

Not available

44

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$2.46

$

In Stock, Qty 20+

0

45

Ariens 00386700

PIVOT,SHIFT ROD .375-16(TRUNN)

$7.55

$

In Stock, only 1 left!

0

46

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$1.96

$

In Stock, Qty 20+

0

47

Ariens 00423300

ROD, SHIFT - LOWER

$44.22

$

Usually ships in 4-12 days

0

48

Ariens 00399700

ROD, SHIFT - UPPER

$36.84

$

Usually ships in 4-12 days

0

49

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.96

$

In Stock, Qty 19

0

50

Ariens 06537500

NUT-LK WING .250-20 YWZC
(Superseded to 06500805)

$4.42

$

In Stock, Qty 20+

0

51

Ariens 07518700

HANDLE GRIP
(Superseded to 07500239)

$3.63

$

In Stock, Qty 20+

0

52

Ariens 00446700

BUMPER PAD
(Superseded to 07500103)

$3.30

$

Usually ships in 4-12 days

0
