933 E (12AE751-100) - Cub Cadet Walk-Behind Mower Starter (933E) Parts Diagram

Walk-Behind Mower

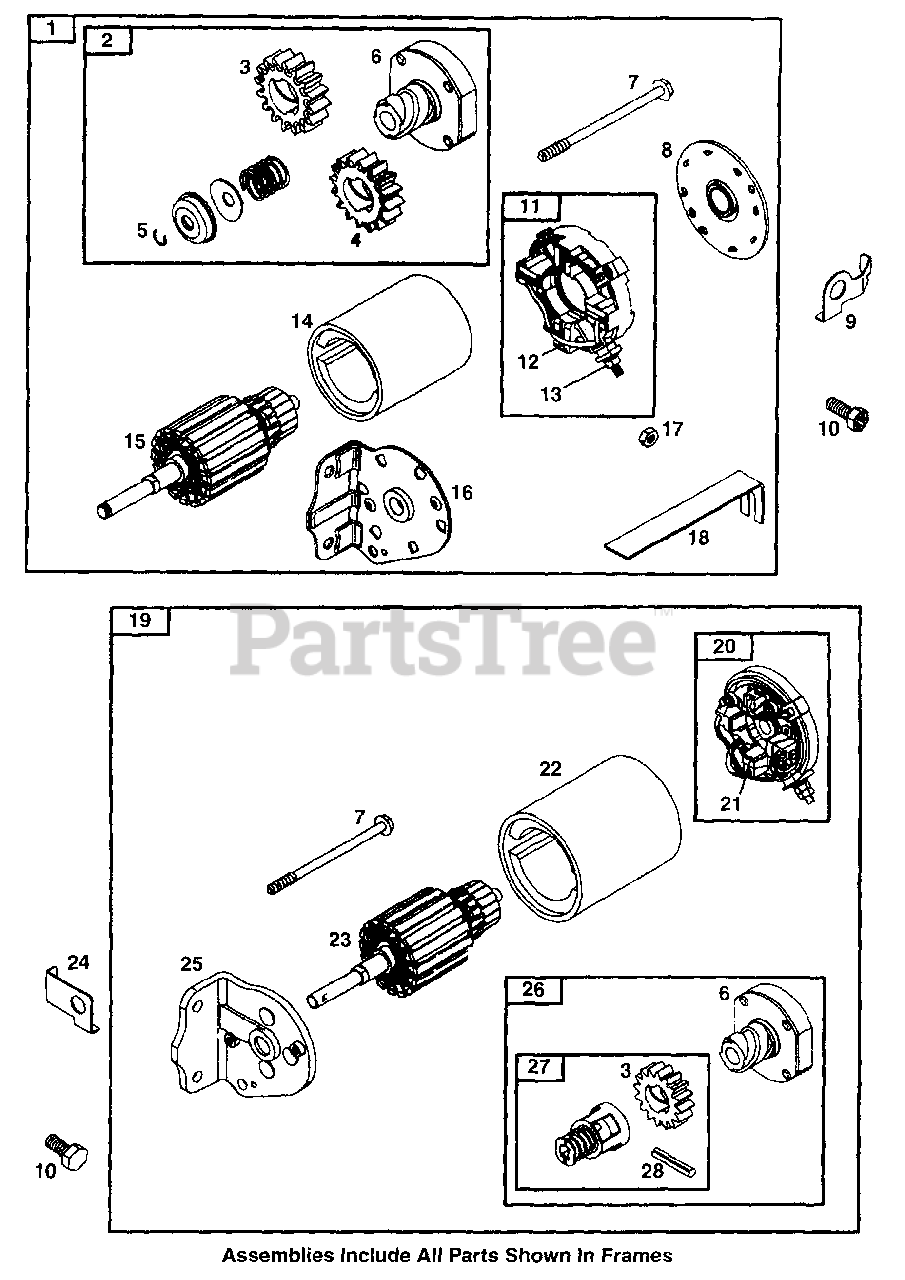

Starter (933E) Parts Diagram

  • Title

1

Cub Cadet BS-693054

Starter (3 5/8 Hsg, Aluminum Ring Gear)
(Superseded to BS-497595)

$110.99

$

In Stock, only 3 left!

0

Cub Cadet BS-497401

Starter
(Superseded to BS-795121)

$143.99

$

In Stock, Qty 18

0

Cub Cadet BS-497595

Starter (3 5/8 Hsg, Plastic Ring Gear)

$110.99

$

In Stock, only 3 left!

0

Cub Cadet BS-499521

Starter
(Superseded to BS-795121)

$143.99

$

In Stock, Qty 18

0

2

Cub Cadet BS-497606

Starter Drive
(Superseded to BS-696541)

$

$

Not available

3

Cub Cadet BS-693058

Starter Gear (for Plastic Ring Gear Only),
(Superseded to BS-695708)

$6.99

$

In Stock, Qty 20+

0

Cub Cadet BS-693059

Pinion Gear (Aluminum Ring Gear Only)
(Superseded to BS-695708)

$6.99

$

In Stock, Qty 20+

0

4

Cub Cadet BS-693059

Pinion Gear (Aluminum Ring Gear Only)
(Superseded to BS-695708)

$6.99

$

In Stock, Qty 20+

0

5

Cub Cadet BS-263080

Retaining Ring
(Superseded to BS-691265)

$5.49

$

In Stock, Qty 7

0

6

Cub Cadet BS-398003

Starter Assembly Clutch
(Superseded to BS-692024)

$21.99

$

Usually ships in 2-12 days

0

7

Cub Cadet BS-95035

Hex Washer Hd Screw (4 3/8" Housing)

$

$

Not available

Cub Cadet BS-94003

Hex Washer Hd Screw (3 5/8" Housing)

$

$

Currently unavailable

8

Cub Cadet BS-497607

End Cap

$

$

Not available

9

Cub Cadet BS-281159

Wire Clip

$

$

Not available

Cub Cadet BS-225170

Wire Clip

$

$

Not available

10

Cub Cadet BS-94773

Hex Head Torque Screw

$

$

Currently unavailable

Cub Cadet BS-94627

Sem Hex Head Screw

$

$

Not available

11

Cub Cadet BS-497605

Brush Retainer
(Superseded to BS-691293)

$29.99

$

In Stock, Qty 6

0

12

Cub Cadet BS-497608

Brush Set

$27.99

$

In Stock, only 4 left!

0

13

Cub Cadet BS-693167

Nut

$4.49

$

Usually ships in 2-12 days

0

14

Cub Cadet BS-497604

Housing Assembly (3 5/8" Housing)

$

$

Not available

15

Cub Cadet BS-497603

Armature Assembly (3 5/8" Housing)

$

$

Not available

16

Cub Cadet BS-497626

Drive Cap
(Superseded to BS-691283)

$83.99

$

Usually ships in 2-12 days

0

17

Cub Cadet BS-92278

Hex Nut, 1/4-20
(Superseded to 912-0121)

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet BS-806000

Ground Strap (4 3/8" Housing)
(Superseded to BS-691532)

$6.49

$

Usually ships in 2-12 days

0

19

See Ref #1 for Replacement Starter

$

$

Not available

20

Cub Cadet BS-395537

End Cap (3 5/8" Housing)

$54.99

$

In Stock, only 1 left!

0

Cub Cadet BS-494988

End Cap (4 3/8" Housing)

$57.99

$

Usually ships in 2-12 days

0

21

Cub Cadet BS-395538

Brush Set

$24.99

$

Usually ships in 2-12 days

0

22

Cub Cadet BS-398159

Starter Housing (3 5/8" Housing)

$80.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-494205

Starter Housing

$73.99

$

In Stock, only 1 left!

0

23

Cub Cadet BS-390837

Armature Assembly (3 5/8" Housing)

$159.99

$

In Stock, only 1 left!

0

Cub Cadet BS-490309

Armature Assembly

$74.99

$

Usually ships in 2-12 days

0

24

Cub Cadet BS-224723

Wire Retainer

$5.99

$

In Stock, only 1 left!

0

25

Cub Cadet BS-394856

Drive Cap

$

$

Not available

26

Cub Cadet BS-495878

Starter Drive (4 3/8" Housing)
(Superseded to BS-696540)

$29.99

$

Usually ships in 2-12 days

0

27

Cub Cadet BS-495877

Gear Kit (4 3/8" Housing)
(Superseded to BS-696540)

$29.99

$

Usually ships in 2-12 days

0

28

Cub Cadet BS-94288

Spiral Pin, Copper
(Superseded to BS-691641)

$4.99

$

In Stock, only 1 left!

0
