933 SWE (31AH9JSV710) - Cub Cadet 33" Snow Thrower (2008) Engine Assembly 933SWE 1 Parts Diagram

33" Snow Thrower

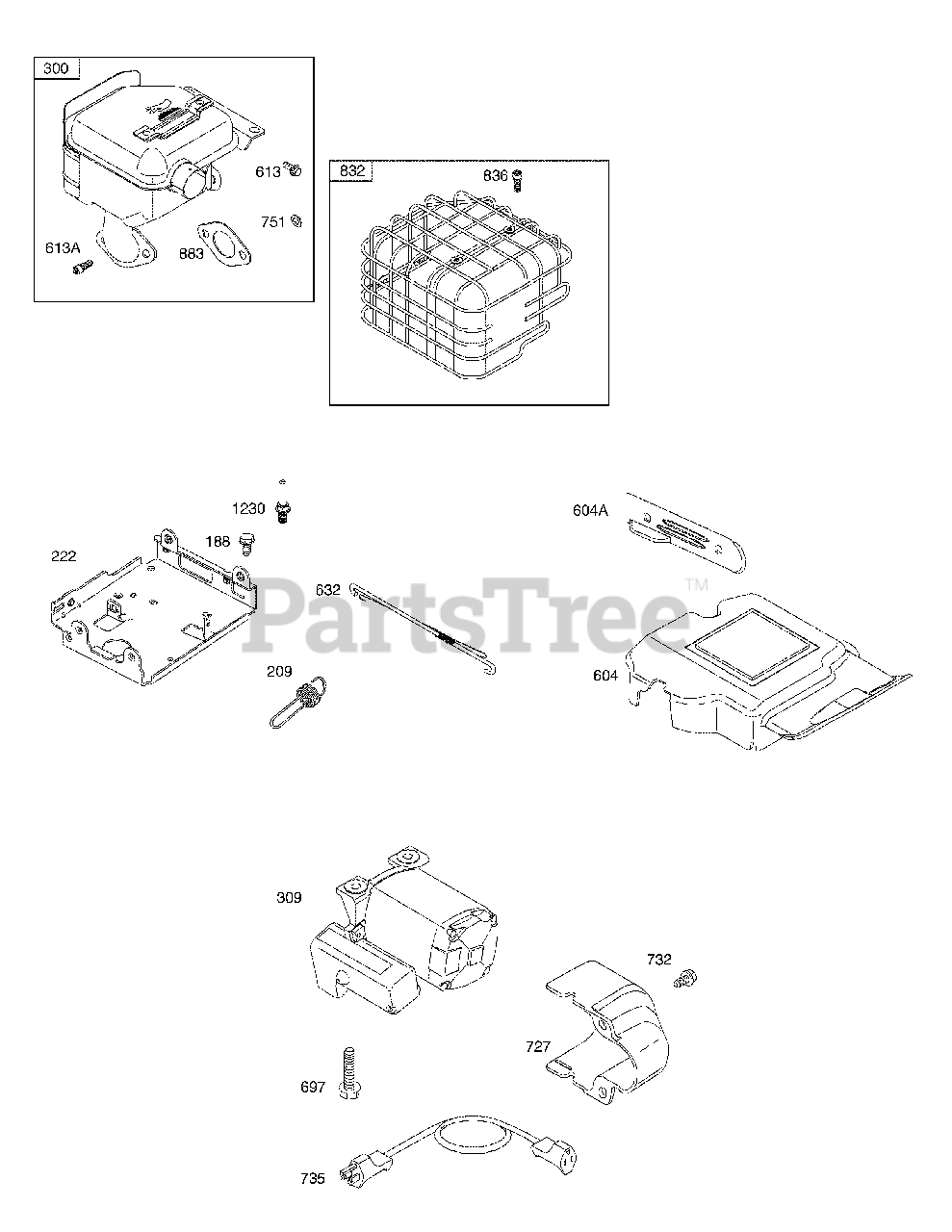

Engine Assembly 933SWE 1 Parts Diagram

  • Title

1

Cub Cadet BS-794850

Cylinder Assembly

$328.99

$

Usually ships in 2-12 days

0

2

Cub Cadet BS-698340

Kit-Bushing/Seal (Magneto Side)

$22.99

$

In Stock, only 1 left!

0

3

Cub Cadet BS-391086S

Seal-Oil (Magneto Side)

Note: Included in Ref No. 358

$6.49

$

In Stock, Qty 20+

0

5

Cub Cadet BS-794871

Head-Cylinder
(Superseded to BS-799858)

$166.99

$

Usually ships in 2-12 days

0

7

Cub Cadet BS-697690

Gasket-Cylinder Head

Note: Included in Ref No. 358, 1095

$14.99

$

In Stock, only 1 left!

0

11

Cub Cadet BS-696750

Tube-Breather

$10.99

$

Usually ships in 2-12 days

0

12

Cub Cadet BS-694953

Gasket-Crankcase

Note: Included in Ref No. 358

$9.99

$

In Stock, only 1 left!

0

13

Cub Cadet BS-794829

Screw (Cylinder Head)

$3.99

$

In Stock, Qty 7

0

15

Cub Cadet BS-691686

Plug-Oil Drain

$5.49

$

In Stock, only 1 left!

0

16

Cub Cadet BS-794716

Crankshaft

$272.99

$

Usually ships in 2-12 days

0

18

Cub Cadet BS-791965

Cover-Crankcase

$199.99

$

Usually ships in 2-12 days

0

19

Cub Cadet BS-698340

Kit-Bushing/Seal (PTO Side)

$22.99

$

In Stock, only 1 left!

0

20

Cub Cadet BS-391086S

Seal-Oil (PTO Side)

Note: Included in Ref No. 358

$6.49

$

In Stock, Qty 20+

0

21

Cub Cadet BS-281658S

Cap-Oil Fill

$4.49

$

In Stock, only 2 left!

0

22

Cub Cadet BS-794825

Screw (Crankcase Cover/Sump)

$4.99

$

Usually ships in 2-12 days

0

23

Cub Cadet BS-794812

Flywheel

$

$

Not available

24

Cub Cadet BS-222698S

Key-Flywheel

$2.99

$

In Stock, Qty 20+

0

25

Cub Cadet BS-793318

Piston Assembly (Standard)

$111.99

$

In Stock, only 2 left!

0

25

Cub Cadet BS-793325

Piston Assembly (.020" Oversize)

$142.99

$

Usually ships in 2-12 days

0

26

Cub Cadet BS-793319

Ring Set (Standard)

$49.99

$

Usually ships in 2-12 days

0

26

Cub Cadet BS-793324

Ring Set (.020" Oversize)

$64.99

$

Usually ships in 2-12 days

0

27

Cub Cadet BS-690975

Lock-Piston Pin

$3.99

$

In Stock, only 1 left!

0

28

Cub Cadet BS-696581

Pin-Piston

$17.99

$

In Stock, only 1 left!

0

29

Cub Cadet BS-694691

Rod-Connecting

$60.99

$

In Stock, only 3 left!

0

30

Cub Cadet BS-694692

Dipper-Connecting Rod

$6.99

$

Usually ships in 2-12 days

0

32

Cub Cadet BS-690976

Screw (Connecting Rod)

$4.49

$

Usually ships in 2-12 days

0

33

Cub Cadet BS-499596

Valve-Exhaust
(Superseded to BS-697576)

$43.99

$

In Stock, only 3 left!

0

34

Cub Cadet BS-795199

Valve-Intake

$35.99

$

In Stock, only 1 left!

0

35

Cub Cadet BS-694865

Spring-Valve (Intake)

$5.49

$

Usually ships in 2-12 days

0

36

Cub Cadet BS-694865

Spring-Valve (Exhaust)

$5.49

$

Usually ships in 2-12 days

0

37

Cub Cadet BS-795715

Guard-Flywheel

$

$

Currently unavailable

42

Cub Cadet BS-499586

Keeper-Valve

$7.49

$

In Stock, only 2 left!

0

45

Cub Cadet BS-690977

Tappet-Valve

$7.99

$

Usually ships in 2-12 days

0

46

Cub Cadet BS-795697

Camshaft

$

$

Not available

48

Cub Cadet BS-794914

Short Block

$456.99

$

Usually ships in 2-12 days

0

51

Cub Cadet BS-694874

Gasket-Intake

Note: Included in Ref No. 358, 1095

$4.99

$

In Stock, only 2 left!

0

51A

Cub Cadet BS-694875

Gasket-Intake

Note: Included in Ref No. 358, 1095

$4.49

$

In Stock, only 1 left!

0

53

Cub Cadet BS-795017

Stud (Carburetor)

$8.49

$

Usually ships in 2-12 days

0

55

Cub Cadet BS-696710

Housing-Rewind Starter

$45.99

$

Usually ships in 2-12 days

0

58

Cub Cadet BS-693389

Rope-Starter

Note: (Cut To Req. Length)

$9.49

$

In Stock, Qty 8

0

60

Cub Cadet BS-699334

Grip-Starter Rope

$13.99

$

In Stock, only 1 left!

0

65

Cub Cadet BS-699851

Screw (Rewind Starter)

$3.99

$

In Stock, only 4 left!

0

95

Cub Cadet BS-690718

Screw (Throttle Valve)

Note: Included in Ref No. 121

$5.99

$

In Stock, only 1 left!

0

97

Cub Cadet BS-696387

Shaft-Throttle

$41.99

$

Usually ships in 2-12 days

0

98

Cub Cadet BS-695408

Kit-Idle Speed

$13.99

$

In Stock, only 2 left!

0

104

Cub Cadet BS-694918

Pin-Float Hinge

Note: Included in Ref No. 121

$7.49

$

In Stock, only 1 left!

0

105

Cub Cadet BS-696136

Valve-Float Needle

Note: Included in Ref No. 121

$15.99

$

In Stock, Qty 15

0

108

Cub Cadet BS-696736

Valve-Choke

$9.49

$

Usually ships in 2-12 days

0

109

Cub Cadet BS-793520

Shaft-Choke

$30.99

$

Usually ships in 2-12 days

0

117

Cub Cadet BS-796080

Jet-Main (Standard)

Note: (Used After Code Date: 08050600)

$18.99

$

Usually ships in 2-12 days

0

117

Cub Cadet BS-696134

Jet-Main (Standard)

Note: (Used Before Code Date: 08050700)

$18.99

$

In Stock, Qty 6

0

118

Cub Cadet BS-796128

Jet-Main (High Altitude)

Note: (Used After Code Date: 08050600)

$17.99

$

Usually ships in 2-12 days

0

118

Cub Cadet BS-696135

Jet-Main (High Altitude)

Note: (Used Before Code Date: 08050700)

$17.99

$

Usually ships in 2-12 days

0

121

Cub Cadet BS-698787

Kit-Carburetor Overhaul
(Superseded to BS-796184)

Note: Incl. Ref. No. 95,104,105,127,135(Used After Code Date: 08050600)

$63.99

$

Usually ships in 2-12 days

0

121A

Cub Cadet BS-696146

Kit-Carburetor Overhaul

Note: Incl. Ref. No. 122,163,137(Used Before Code Date: 08050700)

$50.99

$

In Stock, only 1 left!

0

122

Cub Cadet BS-694876

Spacer-Carburetor

Note: Included in Ref No. 121A

$

$

Not available

125

Cub Cadet BS-796122

Carburetor

Note: (Used After Code Date: 08050600)

$136.99

$

Usually ships in 2-12 days

0

125

Cub Cadet BS-794593

Carburetor
(Superseded to BS-796122)

Note: (Used Before Code Date: 08050700)

$136.99

$

Usually ships in 2-12 days

0

127

Cub Cadet BS-690727

Plug-Welch

Note: Included in Ref No. 121

$4.49

$

In Stock, only 1 left!

0

130

Cub Cadet BS-696139

Valve-Throttle

$10.99

$

In Stock, only 2 left!

0

133

Cub Cadet BS-694914

Float-Carburetor

$28.99

$

In Stock, Qty 5

0

135

Cub Cadet BS-698780

Tube-Fuel Transfer

Note: Included in Ref No. 121(Used After Code Date: 08050600)

$95.99

$

In Stock, only 4 left!

0

135

Cub Cadet BS-696142

Tube-Fuel Transfer

Note: (Used Before Code Date: 08050700)

$41.99

$

In Stock, Qty 8

0

137

Cub Cadet BS-698781

Gasket-Float Bowl

Note: Included in Ref No. 121A(Used After Code Date: 08050600)

$9.99

$

Usually ships in 2-12 days

0

137

Cub Cadet BS-695426

Gasket-Float Bowl

Note: (Used Before Code Date: 08050700)

$9.49

$

In Stock, Qty 10

0

146

Cub Cadet BS-690979

Key-Timing

$3.49

$

In Stock, only 3 left!

0

163

Cub Cadet BS-692277

Gasket-Air Cleaner

Note: Included in Ref No. 358, 121A

$6.99

$

In Stock, Qty 6

0

170

Cub Cadet BS-794833

Stud (Crankcase Cover/Sump)

$9.99

$

Usually ships in 2-12 days

0

177

Cub Cadet BS-795015

Seal-O Ring (Dipstick)

$11.99

$

Usually ships in 2-12 days

0

187

Cub Cadet BS-699479

Line-Fuel

$3.99

$

Usually ships in 2-12 days

0

188

Cub Cadet BS-691693

Screw (Control Bracket)

$3.99

$

In Stock, only 3 left!

0

192

Cub Cadet BS-690083

Adjuster-Rocker Arm

$11.99

$

In Stock, only 2 left!

0

209

Cub Cadet BS-695491

Spring-Governor

$

$

Not available

219

Cub Cadet BS-693578

Gear-Governor

$26.99

$

In Stock, only 1 left!

0

220

Cub Cadet BS-691724

Washer (Governor Gear)

$5.49

$

In Stock, only 2 left!

0

222

Cub Cadet BS-794801

Bracket-Control

$40.99

$

Usually ships in 2-12 days

0

227

Cub Cadet BS-694864

Lever-Governor Control

$16.99

$

Usually ships in 2-12 days

0

232

Cub Cadet BS-691842

Spring-Governor Link

$11.99

$

In Stock, Qty 6

0

238

Cub Cadet BS-691843

Cap-Valve

$8.49

$

In Stock, Qty 10

0

278

Cub Cadet BS-792008

Washer (Governor Control Lever)

$8.49

$

Usually ships in 2-12 days

0

287

Cub Cadet BS-699269

Screw (Dipstick Tube)

$

$

Currently unavailable

300

Cub Cadet BS-794948

Muffler

$122.99

$

Usually ships in 2-12 days

0

304

Cub Cadet BS-795699

Housing-Blower

$90.99

$

In Stock, only 1 left!

0

305

Cub Cadet BS-699480

Screw (Blower Housing)
(Superseded to BS-699481)

$3.99

$

In Stock, only 4 left!

0

306

Cub Cadet BS-697240

Shield-Cylinder

$22.99

$

Usually ships in 2-12 days

0

307

Cub Cadet BS-794822

Screw (Cylinder Shield)

$3.99

$

Usually ships in 2-12 days

0

309

Cub Cadet BS-793524

Motor-Starter
(Superseded to BS-795909)

$274.99

$

Usually ships in 2-12 days

0

332

Cub Cadet BS-794824

Nut (Flywheel)

$5.49

$

Usually ships in 2-12 days

0

333

Cub Cadet BS-492341

Armature-Magneto
(Superseded to BS-591459)

$53.99

$

In Stock, Qty 20+

0

334

Cub Cadet BS-699477

Screw (Magneto Armature)

$3.99

$

In Stock, only 1 left!

0

337

Cub Cadet 759-3336

Plug-Spark
(Superseded to RC12YC)

$3.49

$

In Stock, Qty 20+

0

347

Cub Cadet BS-698338

Switch-Rocker
(Superseded to BS-795333)

$13.99

$

In Stock, only 1 left!

0

358

Cub Cadet BS-795201

Gasket Set-Engine

Note: Incl. Ref No. 3,7,12,20,51,51A,163,686,883&1022

$70.99

$

In Stock, only 4 left!

0

363

Cub Cadet N/A

Puller-Flywheel

$

$

Currently unavailable

369

Cub Cadet BS-695422

Spring-Float Bowl

Note: (Used Before Code Date: 08050700)

$8.49

$

In Stock, Qty 12

0

383

Cub Cadet BS-19374S

Wrench-Spark Plug
(Superseded to BS-19576S)

$5.99

$

In Stock, only 4 left!

0

404

Cub Cadet BS-795759

Washer (Governor Crank)

$5.49

$

In Stock, only 1 left!

0

455

Cub Cadet BS-795011

Cup-Flywheel

$11.99

$

Usually ships in 2-12 days

0

456

Cub Cadet BS-692299

Plate-Pawl Friction

$4.99

$

In Stock, Qty 20+

0

459

Cub Cadet BS-281505S

Pawl-Ratchet

$3.49

$

In Stock, Qty 20+

0

472

Cub Cadet BS-791948

Knob-Choke Shaft

$7.99

$

In Stock, Qty 6

0

474

Cub Cadet BS-793118

Alternator

$102.99

$

Usually ships in 2-12 days

0

505

Cub Cadet BS-691251

Nut (Governor Control Lever)

$3.49

$

In Stock, Qty 11

0

523

Cub Cadet BS-790477

Dipstick

$17.99

$

Usually ships in 2-12 days

0

524

Cub Cadet BS-691876

Seal-Dipstick Tube

$5.49

$

In Stock, only 1 left!

0

525

Cub Cadet BS-792041

Tube-Dipstick

$13.99

$

Usually ships in 2-12 days

0

528

Cub Cadet BS-793006

Hose-Primer

$8.49

$

In Stock, only 1 left!

0

529

Cub Cadet BS-791822

Grommet

$7.99

$

In Stock, only 1 left!

0

552

Cub Cadet BS-694674

Bushing-Governor Crank

$9.49

$

In Stock, only 1 left!

0

562

Cub Cadet BS-793216

Bolt (Governor Control Lever)

$6.49

$

Usually ships in 2-12 days

0

578

Cub Cadet BS-792576

Wire Assembly

$8.49

$

Usually ships in 2-12 days

0

597

Cub Cadet BS-691696

Screw (Pawl Friction Plate)

$11.99

$

In Stock, only 4 left!

0

601

Cub Cadet BS-791850

Hose-Clamp

$3.49

$

In Stock, Qty 20+

0

604

Cub Cadet BS-696758

Cover-Control

$24.99

$

Usually ships in 2-12 days

0

604A

Cub Cadet BS-790473

Cover-Control

$6.99

$

In Stock, only 1 left!

0

608

Cub Cadet BS-699335

Starter-Rewind

$87.99

$

In Stock, only 3 left!

0

610

Cub Cadet BS-794541

Arrester-Intake

$49.99

$

Usually ships in 2-12 days

0

613

Cub Cadet BS-794846

Screw (Muffler) (Short)

$4.99

$

Usually ships in 2-12 days

0

613A

Cub Cadet BS-691678

Screw (Muffler) (Torx)

$4.99

$

In Stock, only 3 left!

0

614

Cub Cadet BS-691620

Pin-Cotter (Governor Crank)
(Superseded to BS-93306)

$

$

Not available

616

Cub Cadet BS-795758

Crank-Governor

$15.99

$

Usually ships in 2-12 days

0

632

Cub Cadet BS-695917

Spring/Link-Mechanical Governor

$8.49

$

Usually ships in 2-12 days

0

633

Cub Cadet BS-690998

Seal-Choke/Throttle Shaft

$7.99

$

In Stock, only 1 left!

0

635

Cub Cadet BS-691909

Boot-Spark Plug

$4.99

$

In Stock, Qty 10

0

668

Cub Cadet BS-794539

Spacer (Snow Hood)

$8.49

$

In Stock, Qty 5

0

689

Cub Cadet BS-691855

Spring-Friction

$4.49

$

In Stock, Qty 7

0

695

Cub Cadet BS-698807

Screw (Ring Gear)

$3.99

$

In Stock, only 4 left!

0

697

Cub Cadet BS-795012

Screw (Drive Cap)

$5.49

$

In Stock, only 3 left!

0

718

Cub Cadet BS-690959

Pin-Locating (Cylinder)

$6.99

$

Usually ships in 2-12 days

0

718A

Cub Cadet BS-695178

Pin-Locating (Cylinder Head)

$6.99

$

Usually ships in 2-12 days

0

725

Cub Cadet BS-696756

Shield-Heat

$28.99

$

Usually ships in 2-12 days

0

727

Cub Cadet BS-697465

Cover-Starter Drive

$7.99

$

Usually ships in 2-12 days

0

731

Cub Cadet BS-794540

Hood-Snow (Bottom)

$69.99

$

Usually ships in 2-12 days

0

731A

Cub Cadet BS-793621

Hood-Snow

$61.99

$

Usually ships in 2-12 days

0

732

Cub Cadet BS-699200

Screw (Starter Drive Cover)

$3.99

$

Usually ships in 2-12 days

0

735

Cub Cadet BS-795901

Cord-Starter

$

$

Currently unavailable

741

Cub Cadet BS-691288

Gear-Timing

$21.99

$

Usually ships in 2-12 days

0

742

Cub Cadet BS-692564

Retainer-E Ring

$4.49

$

In Stock, only 1 left!

0

746

Cub Cadet BS-694679

Gear-Idler

$18.99

$

Usually ships in 2-12 days

0

751

Cub Cadet BS-794839

Washer (Stop Wire)

$5.49

$

Usually ships in 2-12 days

0

798

Cub Cadet BS-697890

Screw (Rocker Arm)

$3.49

$

In Stock, only 3 left!

0

832

Cub Cadet BS-795078

Guard-Muffler

$

$

Not available

836

Cub Cadet BS-699234

Screw (Muffler Guard)

$3.99

$

In Stock, only 4 left!

0

842

Cub Cadet BS-691031

Seal-O Ring (Dipstick Tube)

$5.49

$

In Stock, Qty 12

0

847

Cub Cadet BS-795087

Dipstick/Tube Assembly

$

$

Currently unavailable

851

Cub Cadet BS-692424

Terminal-Spark Plug

$5.99

$

In Stock, only 2 left!

0

868

Cub Cadet BS-794086

Seal-Valve

Note: Included in Ref No. 358, 1095

$11.99

$

In Stock, only 1 left!

0

878

Cub Cadet BS-398661

Wire/Connector-Alternator

$34.99

$

Usually ships in 2-12 days

0

883

Cub Cadet BS-695398

Gasket-Exhaust

Note: Included in Ref No. 358, 1095

$7.99

$

In Stock, Qty 6

0

892

Cub Cadet BS-791944

Switch-Key

$14.99

$

In Stock, only 2 left!

0

914

Cub Cadet BS-794827

Screw (Rocker Cover)

$4.99

$

In Stock, only 1 left!

0

930

Cub Cadet BS-696709

Guard-Rewind

$

$

Not available

957

Cub Cadet BS-795027

Cap-Fuel Tank

$10.99

$

In Stock, only 2 left!

0

957A

Cub Cadet BS-792647

Cap-Fuel Tank

Note: (Fresh Start)

$

$

Not available

972

Cub Cadet BS-694260

Tank-Fuel
(Superseded to BS-799863)

$89.99

$

In Stock, Qty 18

0

975

Cub Cadet BS-698783

Bowl-Float

Note: (Used After Code Date: 08050600)

$30.99

$

Usually ships in 2-12 days

0

975

Cub Cadet BS-696138

Bowl-Float

Note: (Used Before Code Date: 08050700)

$45.99

$

Usually ships in 2-12 days

0

976

Cub Cadet BS-695756

Primer-Carburetor
(Superseded to BS-794696)

$7.49

$

In Stock, Qty 7

0

990

Cub Cadet BS-794696

Key Set

$7.49

$

In Stock, Qty 7

0

998

Cub Cadet BS-696683

Pipe-Oil

$

$

Not available

1005

Cub Cadet BS-794815

Fan-Flywheel

$17.99

$

In Stock, only 1 left!

0

1022

Cub Cadet BS-690971

Gasket-Rocker Cover

Note: Included in Ref No. 358, 1095

$7.49

$

In Stock, Qty 20+

0

1023

Cub Cadet BS-698042

Cover-Rocker

$26.99

$

Usually ships in 2-12 days

0

1026

Cub Cadet BS-695177

Rod-Push
(Superseded to BS-592673)

$8.99

$

In Stock, Qty 15

0

1029

Cub Cadet BS-690972

Arm-Rocker

$12.99

$

In Stock, only 2 left!

0

1036

Cub Cadet N/A

Label-Emissions

Note: (Available from a Briggs & Stratton )

$

$

Currently unavailable

1058

Cub Cadet N/A

Operator’s Manual

$

$

Currently unavailable

1070

Cub Cadet BS-794821

Screw (Flywheel Fan)

$4.49

$

Usually ships in 2-12 days

0

1095

Cub Cadet BS-795200

Gasket Set-Valve

Note: Incl. Ref. No. 7,51,51A,868&883

$74.99

$

Usually ships in 2-12 days

0

1100

Cub Cadet BS-791959

Pivot-Rocker Arm

$6.99

$

Usually ships in 2-12 days

0

1119

Cub Cadet BS-699772

Screw (Alternator)

$3.99

$

Usually ships in 2-12 days

0

1127

Cub Cadet BS-695407

Screw (Float Bowl)

$4.49

$

In Stock, only 4 left!

0

1171

Cub Cadet BS-794828

Stud (Rocker Cover)

$5.99

$

In Stock, only 1 left!

0

1196

Cub Cadet BS-696692

Screw (Snow Hood)
(Superseded to BS-798785)

$3.99

$

In Stock, only 2 left!

0

1210

Cub Cadet BS-498144

Pulley/Spring Assembly (Pulley)

$19.99

$

In Stock, Qty 5

0

1211

Cub Cadet BS-498144

Pulley/Spring Assembly (Spring)

$19.99

$

In Stock, Qty 5

0

1230

Cub Cadet BS-699847

Stud (Control Bracket)

$5.99

$

Usually ships in 2-12 days

0

1251

Cub Cadet BS-696762

Shield-Snow

$9.99

$

Usually ships in 2-12 days

0

1251A

Cub Cadet BS-790471

Shield-Snow

$9.49

$

Usually ships in 2-12 days

0

1252

Cub Cadet BS-699480

Screw (Snow Shield)
(Superseded to BS-699481)

$3.99

$

In Stock, only 4 left!

0

1288

Cub Cadet BS-794383

Nut (Snow Shield)

$

$

Currently unavailable

1318

Cub Cadet BS-698111

Knob-Snow Hood

$8.49

$

Usually ships in 2-12 days

0

1329

Cub Cadet N/A

Replacement Engine

$

$

Currently unavailable

1351

Cub Cadet BS-794847

Stud (Cylinder Shield)

$3.99

$

Usually ships in 2-12 days

0

1352

Cub Cadet BS-795016

Nut (Spark Plug Shield)

$3.49

$

Usually ships in 2-12 days

0

1427

Cub Cadet BS-695757

Cap-Pipe

$6.99

$

Usually ships in 2-12 days

0
