9335-0 - Generac 4,000 Watt Portable Generator Generator & Cradle No. 80244 Parts Diagram

4,000 Watt Portable Generator

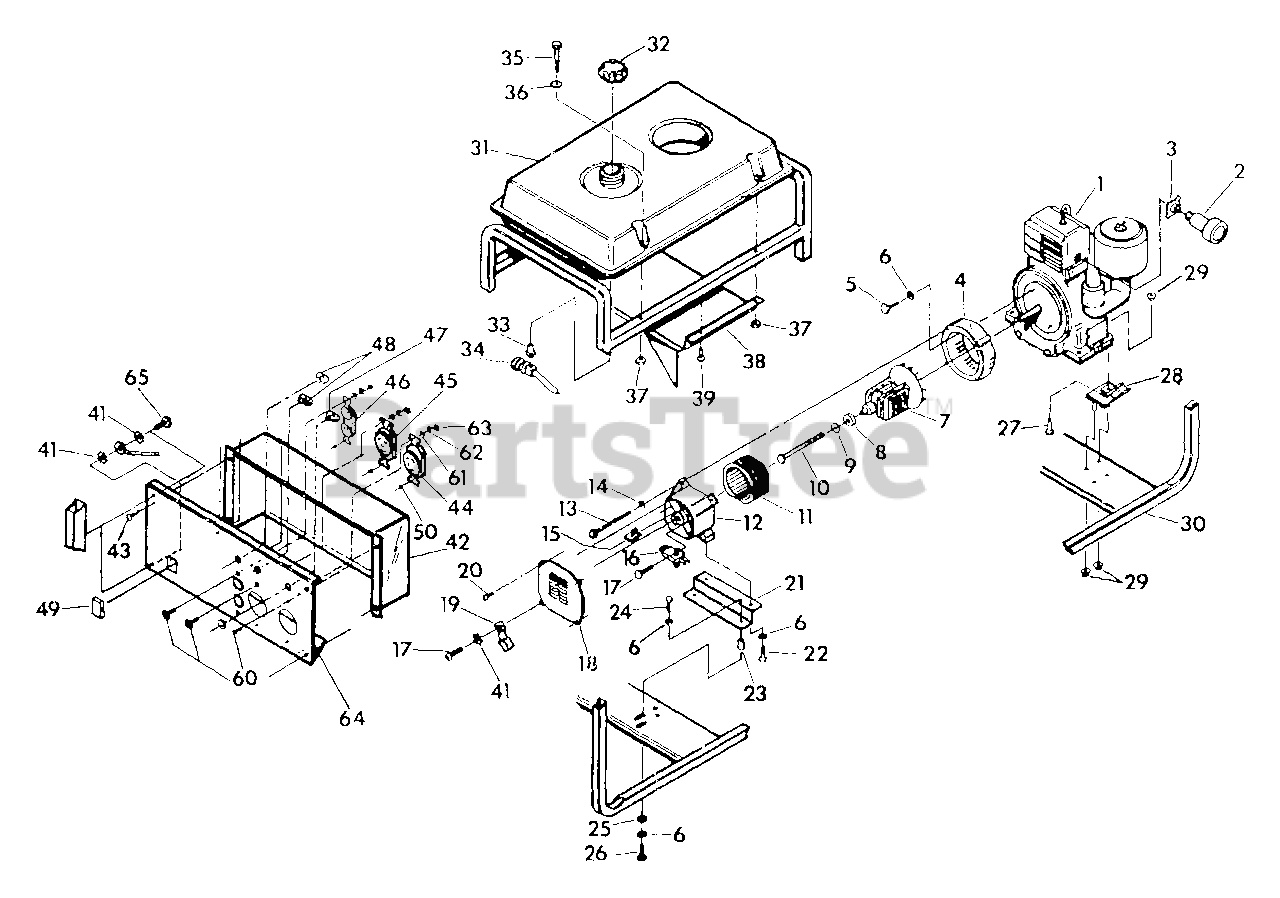

Generator & Cradle No. 80244 Parts Diagram

  • Title

1

Briggs & Stratton 79589

Briggs & Stratton 8 h.p. Engine
(Superseded to 7090892YP)

$4.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 79003

Briggs & Stratton Muffler
(Superseded to 79003GS)

$

$

Not available

3

Briggs & Stratton 78297

Muffler Lock Nut
(Superseded to 7078297YP)

$3.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 66365G

Housing Adaptor
(Superseded to 66365GGS)

$69.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 22336

5/16"-24 x 3/4" Hex Head Screw

$

$

Not available

6

Briggs & Stratton 22129

M8 Lock Washer
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

7

Briggs & Stratton 74716

Rotor Assembly

$

$

Not available

8

Briggs & Stratton 65791

Bearing
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 67451

Special Washer

$

$

Currently unavailable

10

Briggs & Stratton 75431

5/16"-24 x 8-1/2" Bolt
(Superseded to 75431GS)

$4.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 74709

Stator Assembly

$

$

Currently unavailable

12

Briggs & Stratton 66825

Rear Bearing Carrier

$

$

Currently unavailable

13

Briggs & Stratton 66449D

M6-1.0 x 130mm Bolt

$

$

Currently unavailable

14

Briggs & Stratton 22097

M6 Lock Washer
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 66850

Rectifier Bridge
(Superseded to 66850GS)

$70.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 66386

Brush Holder Assembly
(Superseded to 66386GS)

$23.99

$

In Stock, only 4 left!

0

17

Briggs & Stratton 66849

M5-0.8 x 15mm Screw
(Superseded to 66849GS)

$4.99

$

In Stock, only 1 left!

0

18

Briggs & Stratton 67025

Bearing Carrier Cover

$

$

Currently unavailable

19

Briggs & Stratton 25433

Grounding Lug

$

$

Not available

20

Briggs & Stratton 74908

M5-0.8 x 10mm Hex Head Screw
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 73078

Altornator Support

$

$

Currently unavailable

22

Briggs & Stratton 39253

M8-1.25 x 20 Hex Head Screw
(Superseded to 39253GS)

$3.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 44624

Vibration Mount

$

$

Not available

24

Briggs & Stratton 36223

5/16"-18 x 1/2" Hex Head Screw

$

$

Currently unavailable

25

Briggs & Stratton 22145

M8 Flat Washer

$

$

Not available

26

Briggs & Stratton 30332

5/16"-18 x 3/4" Hex Head Screw

$

$

Currently unavailable

27

Briggs & Stratton 76222

M8 x 40mm Pan Head Screw
(Superseded to 76222GS)

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 70642

Vibration Mount
(Superseded to 70642GS)

$31.99

$

In Stock, only 3 left!

0

29

Briggs & Stratton 52858

M8-1.25 Flanged Lock Nut
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

30

Briggs & Stratton 77840

Cradle Assembly

$

$

Not available

31

Briggs & Stratton 77374

Fuel Tank

$

$

Currently unavailable

32

Briggs & Stratton 78824

Fuel Tank Cap

$

$

Currently unavailable

33

Briggs & Stratton 78299

Plastic Tank Bushing
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

34

Briggs & Stratton 78298

Plastic Tank Valve
(Superseded to 7078298YP)

$192.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 78831

M6-1.0 x 55mm Hex Head Screw

$

$

Currently unavailable

36

Briggs & Stratton 78830

Special Black Washer
(Superseded to 78830GS)

$1.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 77395

M6 Hex Lock Nut
(Superseded to 77395GS)

$3.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 78951A

Heat Shield

$

$

Currently unavailable

39

Briggs & Stratton 56892

No. 10-24 x 3/8" Crimptite Screw
(Superseded to 56892GS)

$3.49

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 22769

No. 10 Shakeproof Washer
(Superseded to 22769GS)

$3.49

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 78952

Control Panel Cover

$

$

Not available

43

Briggs & Stratton 63036

No. 8-32 x 1/4" Crimptite Screw
(Superseded to 63036GS)

$2.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 68868

120 volts, 30 amp Twistlock Outlet
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 68867

120/240 volts, 20 amp Twistlock Outlet
(Superseded to 68867GS)

$46.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 68759

120 volts, 20 amp Duplex Outlets
(Superseded to 68759GS)

$24.99

$

In Stock, only 2 left!

0

47

75207A

30 amp Circuit Breaker

$

$

Not available

48

Briggs & Stratton 75207

20 Amp Circuit Breaker
(Superseded to 209872GS)

$9.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 77263

Engine Run/Stop Switch

$

$

Not available

50

Briggs & Stratton 23365

No. 8 Shakeproof Washer
(Superseded to 5023365)

$462.99

$

In Stock, only 2 left!

0

60

Briggs & Stratton 75475

M4-0.7 x 10mm Pan Head Screw

$

$

Not available

61

Briggs & Stratton 38150

No. 8 Flat Washer
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 22264

No. 8 Lock Washer

$

$

Not available

63

Briggs & Stratton 51715

M4-0.7 Hex Nut
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

64

Briggs & Stratton 77846

Control Panel
(Superseded to 7077846YP)

$35.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 75494

No. 10 x 5/8" Self-Drill Screw

$

$

Not available
