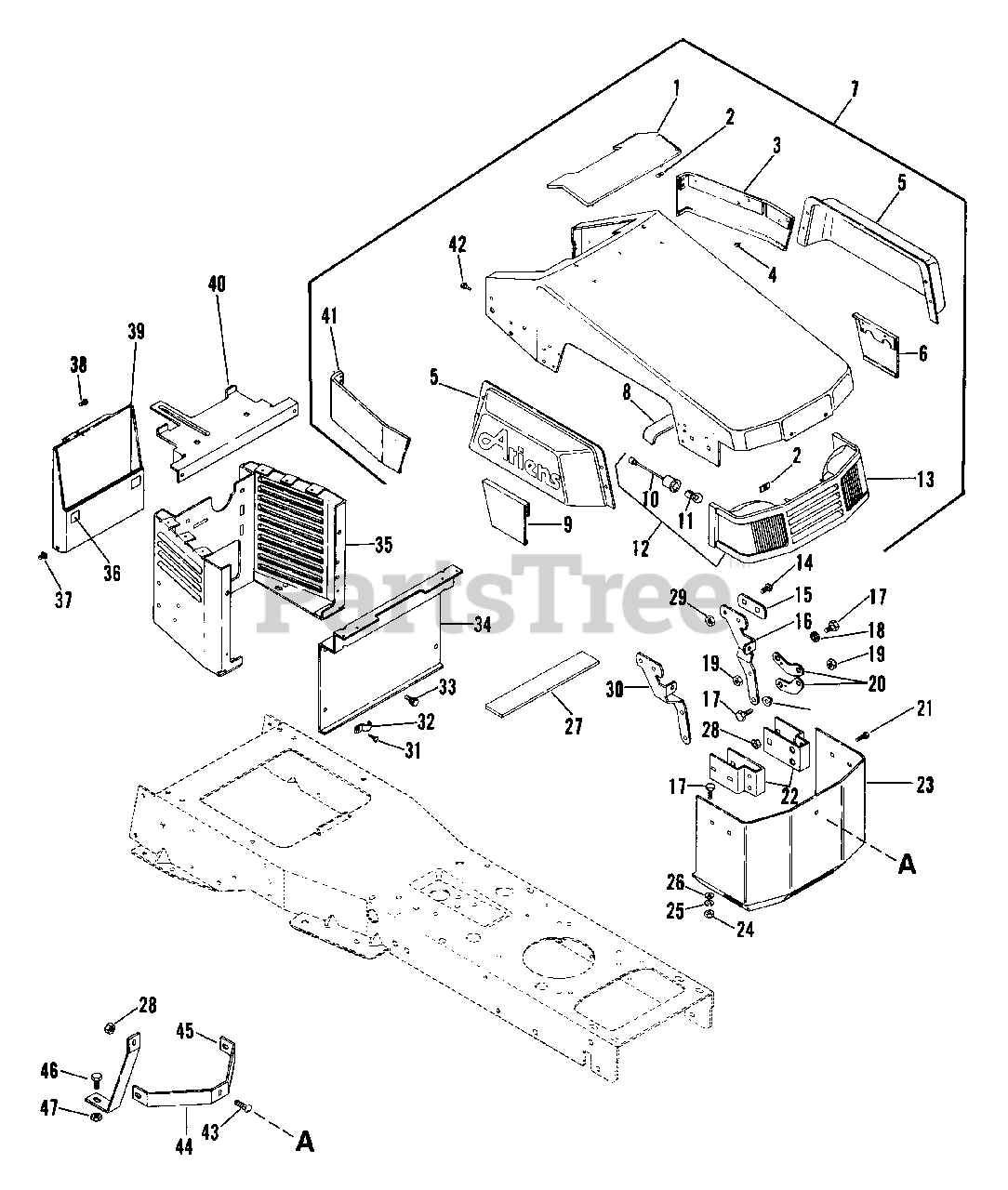

934001 - Ariens High Sierra Garden Tractor, 16hp Briggs & Stratton, Gear (SN: 000101 & Above) Hood And Console Parts Diagram

High Sierra Garden Tractor, 16hp Briggs & Stratton, Gear

Hood And Console Parts Diagram

  • Title
1

Ariens 03417700

HAND HOLD TRIM

$

$

Not available

2

Ariens 07008000

NUT-SELF-THRDNG FITS.25 STUDPL

$2.66

$

In Stock, only 1 left!

0

3

Ariens 03417500

REAR HOOD MOLDING L H

$

$

Not available

4

Ariens 06806600

RVT-BRIV .153 X .179 DOME AL
(Superseded to 06812500)

$3.58

$

Usually ships in 4-12 days

0

5

Ariens 03425000

ENGINE SHROUD

$

$

Not available

6

Ariens 03417300

FRONT HOOD MOLDING L H

$

$

Not available

7

Ariens 53402900

HOOD ASSEMBLY

$

$

Not available

8

Ariens 03441900

FOAM TAPE

$

$

Not available

9

Ariens 03417200

FRONT HOOD MOLDING R H

$

$

Not available

10

Ariens 03419700

SOCKET & HARNESS
(Superseded to 03335600)

$

$

Not available

11

Ariens 03420500

HEADLIGHT BULB, 1156

$28.95

$

In Stock, only 1 left!

0

12

Ariens 03417100

HEAD LIGHT SYSTEM
(Superseded to 03335600)

$

$

Not available

13

Ariens 03419800

GRILL & LENS ASSEMBLY
(Superseded to 03335600)

$

$

Not available

14

Ariens 06201100

BLT-RDHDSQNK .31-18X.75 GR5 PL
(Superseded to 06200232)

$2.24

$

In Stock, Qty 10

0

15

Ariens 03417900

SPACER STRAP

$

$

Not available

16

Ariens 03414900

HINGE ARM L H

$5.53

$

Usually ships in 4-12 days

0

17

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.96

$

In Stock, Qty 20+

0

18

Ariens 01305900

BSHG, FLG .325X.499X.26X.88

$3.52

$

In Stock, only 2 left!

0

19

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$2.52

$

In Stock, Qty 20+

0

20

$

$

Not available

21

Ariens 06205300

BLT-RDHDSQNK .25-20X.50 SHT PL
(Superseded to 06220600)

$1.96

$

In Stock, Qty 20+

0

22

Ariens 03414600

HINGE BRACKET

$

$

Not available

23

Ariens 03420400

GRILL
(Superseded to 03445400)

$

$

Not available

24

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$

$

Not available

25

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$

$

Not available

26

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

$2.40

$

In Stock, Qty 5

0

27

Ariens 03442100

FOAM GASKET

$

$

Not available

28

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$1.96

$

In Stock, Qty 20+

0

29

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$

$

Not available

30

Ariens 03414800

HINGE ARM R H

$

$

Not available

31

Ariens 07404300

SCR-TAP 10-16X.50 HWH PL AB

$

$

Not available

32

Ariens 06913500

HOSE CLAMP

$

$

Not available

33

Ariens 07401400

SCR-TAP .312-18X.50 HWH PL TR
(Superseded to 07411500)

$2.24

$

In Stock, Qty 20+

0

34

Ariens 03420100

BULKHEAD
(Superseded to 03458300)

$

$

Not available

35

Ariens 03412700

DASH TOWER
(Superseded to 03440400)

$

$

Not available

35

Ariens 03440400

DASH TOWER

$

$

Not available

36

Ariens 03418400

CATCH ASSEMBLY

$

$

Not available

37

Ariens 07507600

PLASTIC GROMMET

$3.30

$

In Stock, Qty 5

0

38

Ariens 07400100

SCR-TAP 10-12X.50 CRPH PL A

$

$

Not available

39

Ariens 03412800

NOTE BOX

$

$

Not available

40

Ariens 03419900

BATTERY SUPPORT

$

$

Not available

41

Ariens 03417400

REAR HOOD MOLDING R H

$

$

Not available

42

$

$

Not available

43

Ariens 06204200

BLT-RDHDSQNK .25-20X.75 GR5PL
(Superseded to 06219900)

$1.96

$

In Stock, Qty 19

0

44

Ariens 03446300

BRACE

Note: (03,04)

$

$

Not available

45

Ariens 03446400

BRACE

Note: (03,04)

$

$

Not available

46

Ariens 06207800

BLT-RDHDSQNK .375-16X.75 GR5PL
(Superseded to 06223900)

$2.24

$

In Stock, Qty 10

0

47

Ariens 06508000

NUT-LK-FLG .375-16 PL

$3.58

$

Usually ships in 4-12 days

0
