934006 - Ariens High Sierra Garden Tractor, 18hp Kohler, Hydro (SN: 000101 & Above) Hydro Model 850 Transaxle Parts Diagram

High Sierra Garden Tractor, 18hp Kohler, Hydro

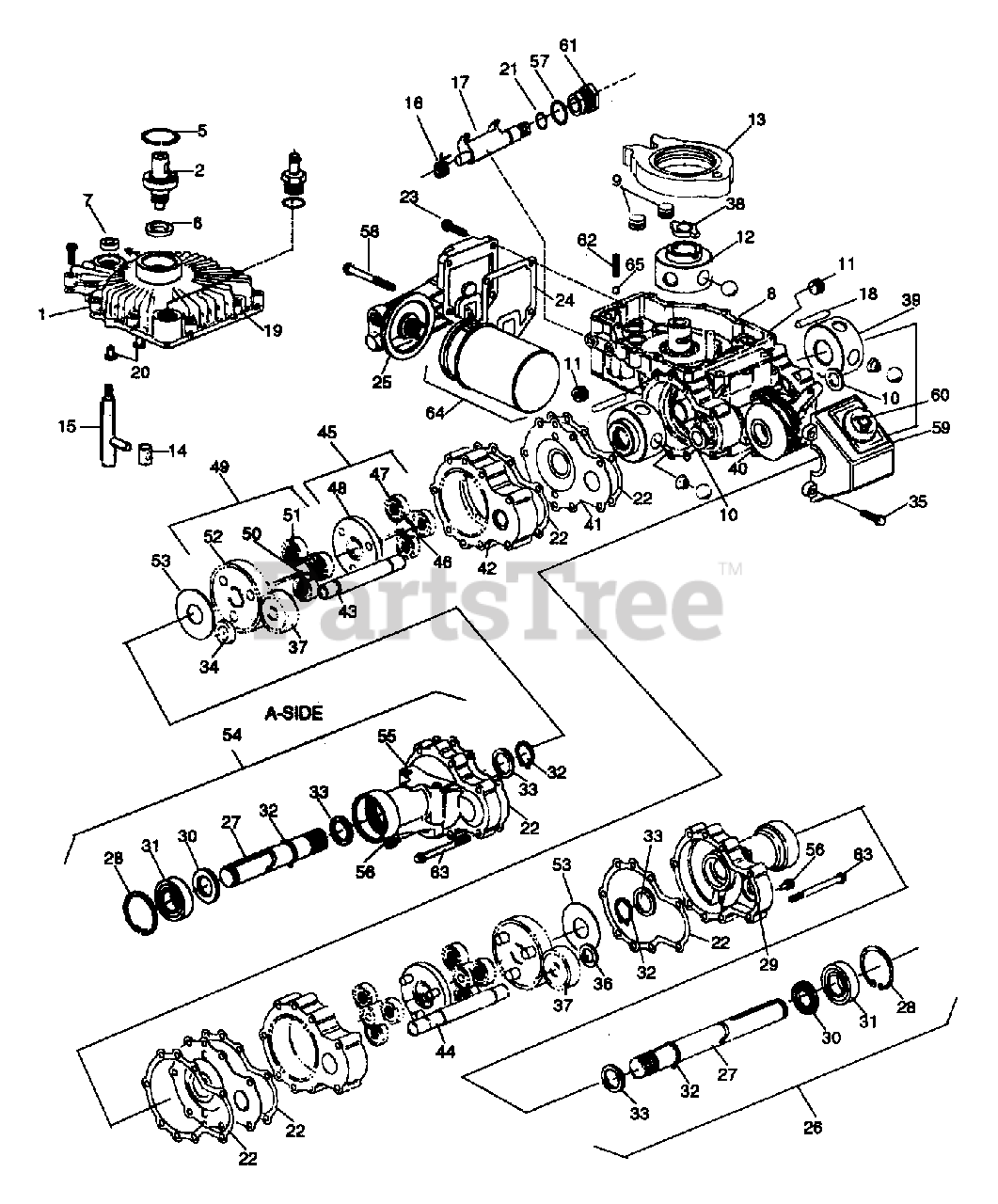

Hydro Model 850 Transaxle Parts Diagram

  • Title

1

Ariens 53508900

COVER, SUBASSEMBLY
(Superseded to 53403700)

$

$

Not available

2

Ariens 53509000

INPUT SHAFT SUBASSEMBLY

$

$

Not available

5

Ariens 03593200

RING RETAINING, INT

$

$

Not available

6

Ariens 03593300

SEAL, INPUT SHAFT

$

$

Not available

7

Ariens 03593400

SEAL, CONTROL SHAFT

$

$

Not available

8

Ariens 53404300

HOUSING SUBASSEMBLY

$

$

Not available

9

Ariens 03593500

PISTON, DAMPENING SUBASSEMBLY

$

$

Not available

10

Ariens 03593600

SEAL, BRAKE SHAFT

$

$

Not available

11

Ariens 03478900

.625 RT ANGLE FITTING/O-RING

$

$

Not available

12

Ariens 03465900

PUMP, ROTOR-BALL-PIN S/A

$

$

Not available

13

Ariens 03466000

CAM RING S/A

$

$

Not available

14

Ariens 03594100

INSERT

$

$

Not available

15

Ariens 03594200

CONTROL SHAFT SUBASSEMBLY

$

$

Not available

16

Ariens 03466100

SPRING, DUMP VALVE

$

$

Not available

17

Ariens 03466200

BRACKET, DUMP VALVE

$

$

Not available

18

Ariens 03594400

DOWEL

$

$

Not available

19

Ariens 03594500

GASKET, COVER
(Superseded to 21001900)

$

$

Not available

20

Ariens 03594600

BUTTON

$

$

Not available

21

Ariens 03466300

O-RING, DUMP VALVE BRACKET

$

$

Not available

22

Ariens 03594700

GASKET, AXLE HOUSING
(Superseded to 20919500)

$

$

Not available

23

Ariens 03594800

SCREW, 1/4 -20 HEX FLANGE

$

$

Not available

24

Ariens 03466400

GASKET, FILTER BASE
(Superseded to 21002400)

$

$

Not available

25

Ariens 03466500

FILTER BASE S/A

$

$

Not available

26

Ariens 53404400

AXLE HOUSING, S/A - B

$

$

Not available

27

Ariens 03466600

SHAFT, AXLE - A&B

$

$

Not available

28

Ariens 03595200

RETAINING RING, INT.

$

$

Not available

29

Ariens 03595300

HOUSING, AXLE - B

$

$

Not available

30

Ariens 03595400

SEAL, AXLE SHAFT

$34.99

$

In Stock, only 1 left!

0

31

Ariens 03595500

BEARING, AXLE SHAFT

$

$

Not available

32

Ariens 03595600

RETAINING RING, EXT. - B
(Superseded to 21003200)

$

$

Not available

33

Ariens 03595700

WASHER, THRUST

$

$

Not available

34

Ariens 53509500

AXLE HOUSING SUBASSEMBLY - A

$

$

Not available

35

Ariens 03595800

SCREW, 1/4-20 SELF TAP

$

$

Not available

36

Ariens 53509200

AXLE HOUSING SUBASSEMBLY - B

$

$

Not available

37

Ariens 03595900

BRAKE GEAR

$

$

Not available

38

Ariens 03596000

DRIVE

$

$

Not available

39

Ariens 03466700

15T MOTOR, ROTOR-BALL S/A

$

$

Not available

40

Ariens 03596200

BRAKE ASSEMBLY - 50 DEGREE

$

$

Not available

41

Ariens 03596300

PLATE, WEAR

$

$

Not available

42

Ariens 03466800

57T RING GEAR S/A

$

$

Not available

43

Ariens 03596500

BRAKE SHAFT - A

$

$

Not available

44

Ariens 03596600

BRAKE SHAFT - B

$

$

Not available

45

Ariens 53404600

PLANETARY GEAR, FITST S/A

$

$

Not available

46

Ariens 03466900

15T SUN GEAR, FIRST

$

$

Not available

47

Ariens 03467000

21T PLANET GEAR, FIRST S/A

$

$

Not available

48

Ariens 03467100

15T PRIMARY CRARIER S/A

$

$

Not available

49

Ariens 53404700

PLANETARY GEAR, SECOND S/A

$

$

Not available

50

Ariens 03467200

15T SUN GEAR, SECOND

$

$

Not available

51

Ariens 03467300

21T PLANET GEAR, SEC. S/A

$

$

Not available

52

Ariens 03597100

SECONDARY CARRIER, S/A 18T

$

$

Not available

53

Ariens 53509500

AXLE HOUSING SUBASSEMBLY - A

$

$

Not available

Ariens 53509200

AXLE HOUSING SUBASSEMBLY - B

$

$

Not available

54

Ariens 53404500

AXLE HOUSING, S/A-A

$

$

Not available

55

Ariens 03597400

HOUSING, AXLE - A

$

$

Not available

56

Ariens 03597600

PLUG MAGNETIC

$

$

Not available

57

Ariens 03598100

O-RING

$8.99

$

In Stock, only 1 left!

0

58

Ariens 03467500

SCREW, 1/4-20 HEX FLG.
(Superseded to 21508900)

$

$

Not available

59

Ariens 03597800

COVER, BRAKE

$

$

Not available

60

Ariens 03597900

DUST BOOT

$

$

Not available

61

Ariens 03467600

DUMP VALVE NUT

$

$

Not available

62

Ariens 03467700

SPRING, RELIEF VALVE

$

$

Not available

63

Ariens 03597700

SCREW, 1/4-20 HEX FLANGE

$

$

Not available

64

Ariens 03467800

FILTER, OIL (WISEAL)

Note: (w/seal)

$60.99

$

In Stock, only 1 left!

0

65

Ariens 03467900

BALL, GRADE 200

$

$

Not available
