934006 - Ariens High Sierra Garden Tractor, 18hp Kohler, Hydro (SN: 000101 & Above) Hydro Transaxles Models 751 & 851 Parts Diagram

High Sierra Garden Tractor, 18hp Kohler, Hydro

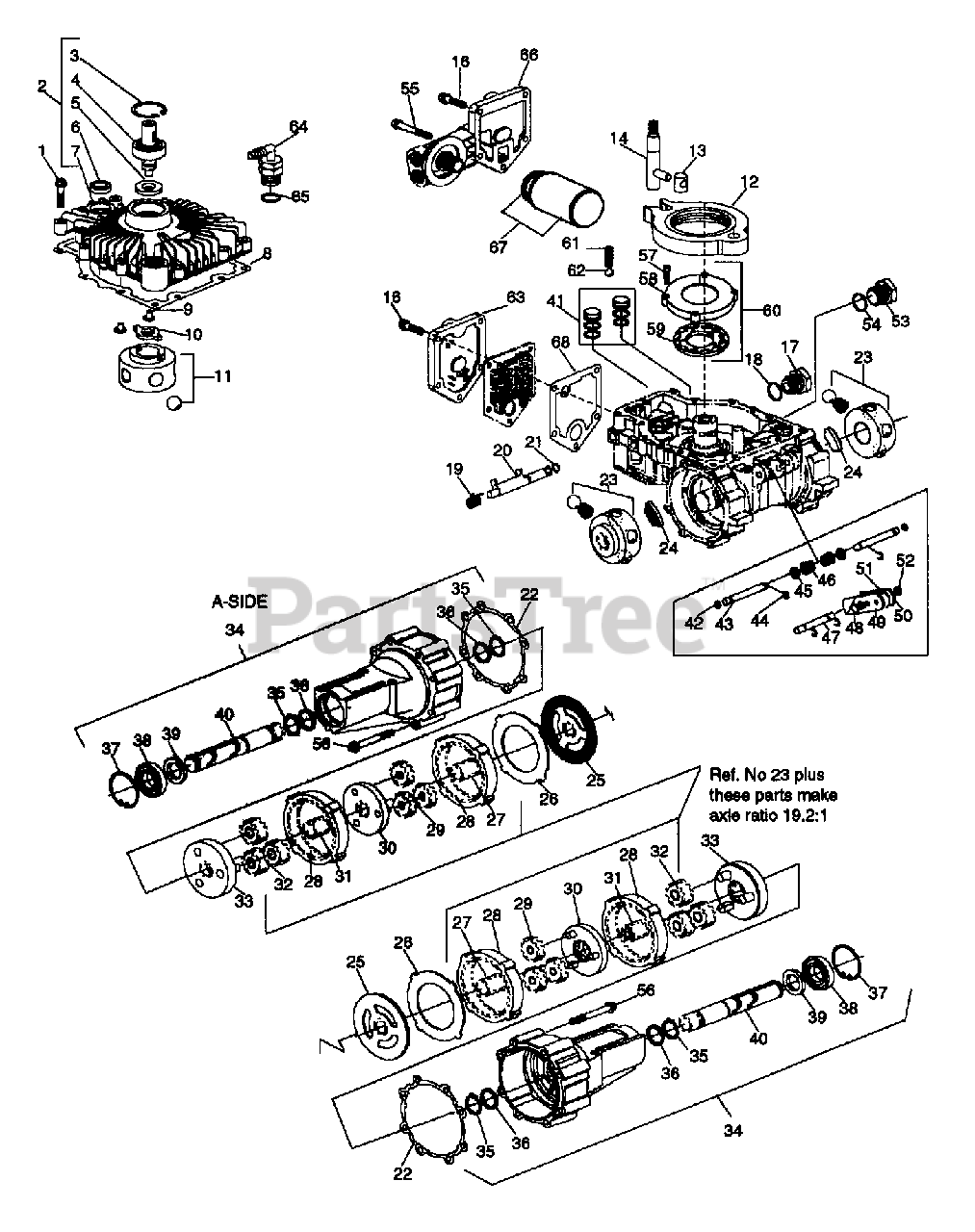

Hydro Transaxles Models 751 & 851 Parts Diagram

  • Title

1

Ariens 03595800

SCREW, 1/4-20 SELF TAP

$

$

Not available

2

Ariens 53403700

COVER

$

$

Not available

3

Ariens 03593200

RING RETAINING, INT

$

$

Not available

4

Ariens 53404900

INPUT SHAFT

$

$

Not available

5

Ariens 03416100

SEAL, INPUT SHAFT
(Superseded to 21005200)

$

$

Not available

6

Ariens 03593400

SEAL, CONTROL SHAFT

$

$

Not available

7

Ariens 03428300

COVER
(Superseded to 21040400)

$

$

Not available

8

Ariens 03436700

GASKET, COVER
(Superseded to 21001900)

$

$

Not available

9

Ariens 03439100

BUTTON

$

$

Not available

10

Ariens 03596000

DRIVE

$

$

Not available

11

Ariens 03465900

PUMP, ROTOR-BALL-PIN S/A

Note: (05,06,08)

$

$

Not available

11

Ariens 03453300

PUMP ROTOR/BALL/PIN

Note: (07)

$

$

Not available

12

Ariens 03455300

CAM RING
(Superseded to 03466000)

Note: (05,06,08)

$

$

Not available

12

Ariens 03454700

CAM RING

Note: (07)

$

$

Not available

13

Ariens 03594100

INSERT

$

$

Not available

14

Ariens 03594200

CONTROL SHAFT SUBASSEMBLY

$

$

Not available

16

Ariens 03594800

SCREW, 1/4 -20 HEX FLANGE

$

$

Not available

17

Ariens 03467600

DUMP VALVE NUT

$

$

Not available

18

Ariens 03598100

O-RING

$8.99

$

In Stock, only 1 left!

0

19

Ariens 03466100

SPRING, DUMP VALVE

$

$

Not available

20

Ariens 03466200

BRACKET, DUMP VALVE

$

$

Not available

21

Ariens 03466300

O-RING, DUMP VALVE BRACKET

$

$

Not available

22

Ariens 03463000

GASKET, AXLE HOUSING

$

$

Not available

23

Ariens 03466700

15T MOTOR, ROTOR-BALL S/A

Note: (05,06,08)

$

$

Not available

23

Ariens 03596100

MOTOR ROTOR-BALL SUBASSEMBLY

Note: (07)

$

$

Not available

24

Ariens 03465700

PAD, FRICTION
(Superseded to 21041000)

$59.99

$

Usually ships in 4-12 days

0

25

Ariens 03479100

PLATE, REACTION

Note: (05,06,08)

$

$

Not available

25

Ariens 03465800

PLATE, REACTION

Note: (07)

$

$

Not available

26

Ariens 03475900

PLATE, BACKUP

$

$

Not available

27

Ariens 03477300

SUN GEAR 15T, FIRST

Note: (05,06,08)

$

$

Not available

27

Ariens 03476000

SUN GEAR, 18T, FIRST

Note: (07)

$

$

Not available

28

Ariens 03476200

RING GEAR 57T

Note: (05,06,08)

$

$

Not available

28

Ariens 03476200

RING GEAR 57T

Note: (07)

$

$

Not available

28

Ariens 03476100

RING GEAR 54T

Note: (07)

$

$

Not available

29

Ariens 03476700

PLANET GEAR 21T

Note: (05,06,08)

$

$

Not available

29

Ariens 03476800

PLANET GEAR 18T

Note: (07)

$

$

Not available

30

Ariens 03476300

PRIMARY CARRIER 15T

$

$

Not available

31

Ariens 03476400

SUN GEAR 1ST, SECOND

$

$

Not available

32

Ariens 03479000

PLANET GEAR 21T, SECOND

$

$

Not available

33

Ariens 03476500

PLANET GEAR 21T, SECOND

$

$

Not available

34

Ariens 03476600

AXLE HOUSING

Note: (05,06,08)

$

$

Not available

34

Ariens 03476600

AXLE HOUSING

Note: (07)

$

$

Not available

35

Ariens 03595600

RETAINING RING, EXT. - B
(Superseded to 21003200)

$

$

Not available

36

Ariens 03595700

WASHER, THRUST

$

$

Not available

37

Ariens 03595200

RETAINING RING, INT.

$

$

Not available

38

Ariens 03595500

BEARING, AXLE SHAFT

$

$

Not available

39

Ariens 03595400

SEAL, AXLE SHAFT

$35.99

$

In Stock, only 1 left!

0

40

Ariens 03477100

AXLE SHAFT

$

$

Not available

41

Ariens 03477200

PISTON

$

$

Not available

42

Ariens 03477400

QUAD SEAL

$

$

Not available

43

Ariens 03477500

PUSH ROD

$

$

Not available

44

Ariens 03477600

E-RING

$

$

Not available

45

Ariens 03477700

SPRING BASE

$

$

Not available

46

Ariens 03477800

CONICAL SPRING

$

$

Not available

47

Ariens 03477900

BRAKE SHAFT
(Superseded to 21042700)

$

$

Not available

48

Ariens 05908200

BLT-HEX .25-20X.75 PL GR5
(Superseded to 05946800)

$1.49

$

In Stock, Qty 12

0

49

Ariens 03478000

BRAKE LEVER, RH

$

$

Not available

50

Ariens 03478100

BRAKE LEVER, LH

$

$

Not available

51

Ariens 03478200

SHIMS

$

$

Not available

52

Ariens 06507000

NUT-LK TOP .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

53

Ariens 03478900

.625 RT ANGLE FITTING/O-RING

Note: (05,06,08)

$

$

Not available

54

Ariens 03598100

O-RING

Note: (05,06,08)

$8.99

$

In Stock, only 1 left!

0

55

Ariens 03478800

SCREW 1/4-20 HEX FLANGE

Note: (05,06,08)

$

$

Not available

56

Ariens 03476900

SCREW 5/16 HEX FLANGE

$

$

Not available

57

Ariens 03478300

SCREW, SOCKET, CAP

Note: (05,06,08)

$

$

Not available

58

Ariens 03478400

PUMP PLATE

Note: (05,06,08)

$

$

Not available

59

Ariens 03478500

GEROTOR

Note: (05,06,08)

$

$

Not available

60

Ariens 03478600

PLATE, PUMP & GEROTOR

Note: (05,06,08)

$

$

Not available

61

Ariens 03467700

SPRING, RELIEF VALVE

Note: (05,06,08)

$

$

Not available

62

Ariens 03467900

BALL, GRADE 200

Note: (05,06,08)

$

$

Not available

63

Ariens 03455800

COVER, VALVE

Note: (07)

$

$

Not available

64

Ariens 03598000

ADAPTER, RESERVOIR, 90 DEGREE

Note: (07)

$

$

Not available

65

Ariens 03598100

O-RING

Note: (07)

$8.99

$

In Stock, only 1 left!

0

66

Ariens 03466500

FILTER BASE S/A

Note: (05,06,08)

$

$

Not available

67

Ariens 03467800

FILTER, OIL (WISEAL)

Note: (05,06,08)

$66.99

$

In Stock, only 1 left!

0

68

Ariens 03466400

GASKET, FILTER BASE
(Superseded to 21002400)

Note: (05,06,08)

$

$

Not available

68

Ariens 03479400

GASKET

Note: (07)

$

$

Not available
