934006 - Ariens High Sierra Garden Tractor, 18hp Kohler, Hydro (SN: 000101 & Above) Jackshaft (PTO) Parts Diagram

High Sierra Garden Tractor, 18hp Kohler, Hydro

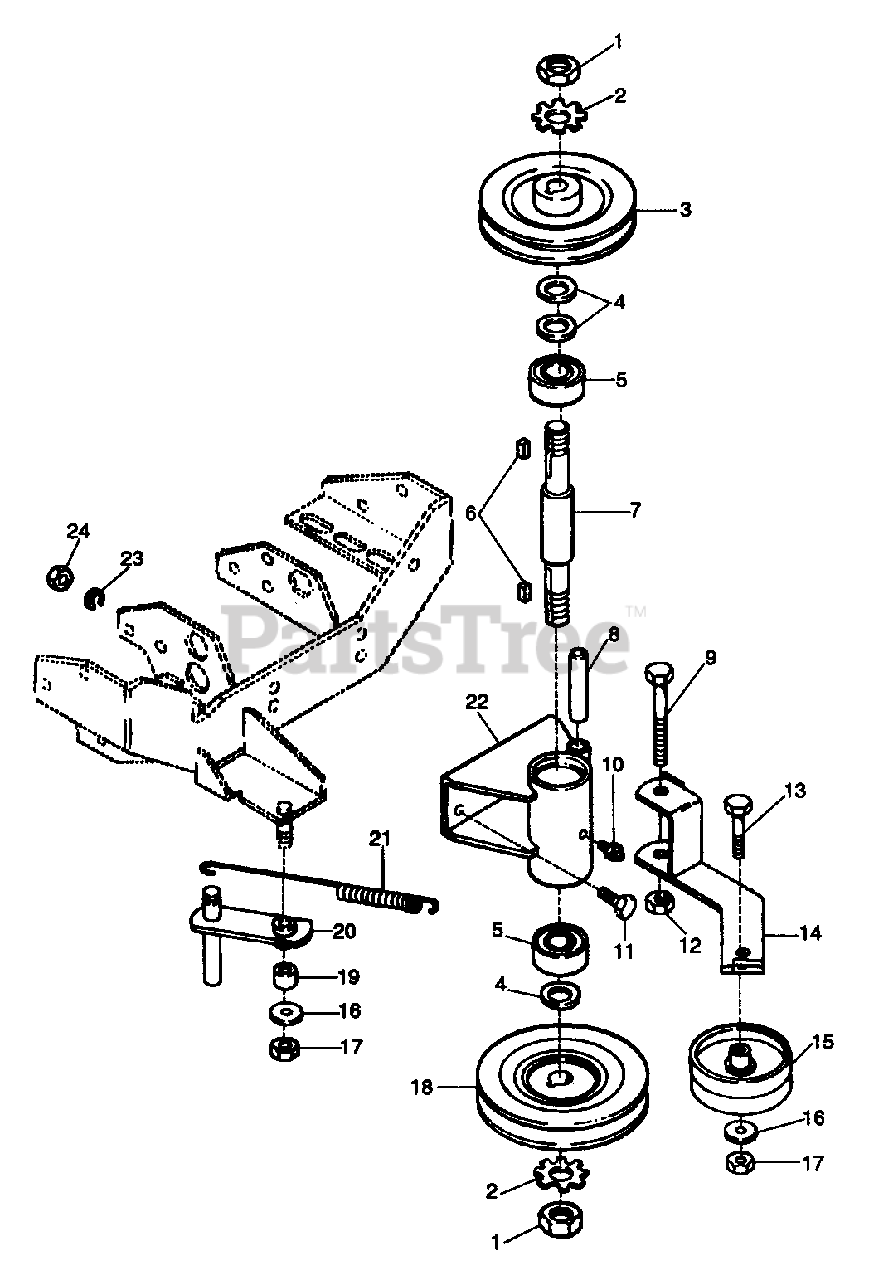

Jackshaft (PTO) Parts Diagram

  • Title

1

Ariens 06502500

NUT-JAM .75-10 PL
(Superseded to 06537700)

$2.49

$

In Stock, Qty 20+

0

2

Ariens 03559000

STAR WASHER

$19.99

$

Usually ships in 4-12 days

0

3

Ariens 03454400

SHEAVE

$

$

Not available

4

Ariens 06408800

WSHR-FL-STL .755X1.250X.125
(Superseded to 06441500)

$3.99

$

In Stock, Qty 16

0

5

Ariens 05412000

BRG-BALL .750X1.781X.61

$13.99

$

In Stock, Qty 20+

0

6

Ariens 06606100

KEY-SQ .188X.75X.188

$3.99

$

In Stock, only 1 left!

0

7

Ariens 03453200

JACKSHAFT

$

$

Not available

8

Ariens 03455900

TUBE .392 X .50 X 2.20

$5.99

$

Usually ships in 4-12 days

0

9

Ariens 05916000

BLT-HEX .38-16X2.75 PL GR5
(Superseded to 05961400)

$3.99

$

In Stock, Qty 20+

0

10

Ariens 02209300

SPIN DRIVE ZERK FITTING
(Superseded to 07012600)

$

$

Not available

11

Ariens 05918100

BLT-HEX .31-18X1.00 PL GR5
(Superseded to 05946900)

$1.49

$

In Stock, Qty 8

0

12

Ariens 06506000

NUT-LK-JAM-CTR .375-16 PL
(Superseded to 06537200)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 05916100

BLT-HEX .38-16X1.75 PL GR5
(Superseded to 05958500)

$1.49

$

Usually ships in 4-12 days

0

14

Ariens 03475100

IDLER ARM

$70.99

$

Usually ships in 4-12 days

0

15

Ariens 07314000

IDLER-FLAT 3.25 X .38 NWHAMSHR

$31.99

$

Usually ships in 4-12 days

0

16

Ariens 06414500

WSHR-FL-STL .390X.750X.125 PL
(Superseded to 06444300)

$7.99

$

In Stock, Qty 9

0

17

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 03454800

SHEAVE

$

$

Not available

19

Ariens 03455700

.392 X .50 X .56

$

$

Not available

20

Ariens 03455500

SPRING ARM

$

$

Not available

21

Ariens 08325600

SG-TENS .095X.62X9.25 WLD ??

$

$

Not available

22

Ariens 03453100

SPINDLE HOUSING

$

$

Not available

23

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, only 4 left!

0

24

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 16

0
