934010 - Gravely GEM Lawn Tractor, 12.5hp Briggs & Stratton, Hydro Drive (SN: 000101 & Above) ENGINE, FUEL AND EXHAUST SYSTEM Parts Diagram

GEM Lawn Tractor, 12.5hp Briggs & Stratton, Hydro Drive

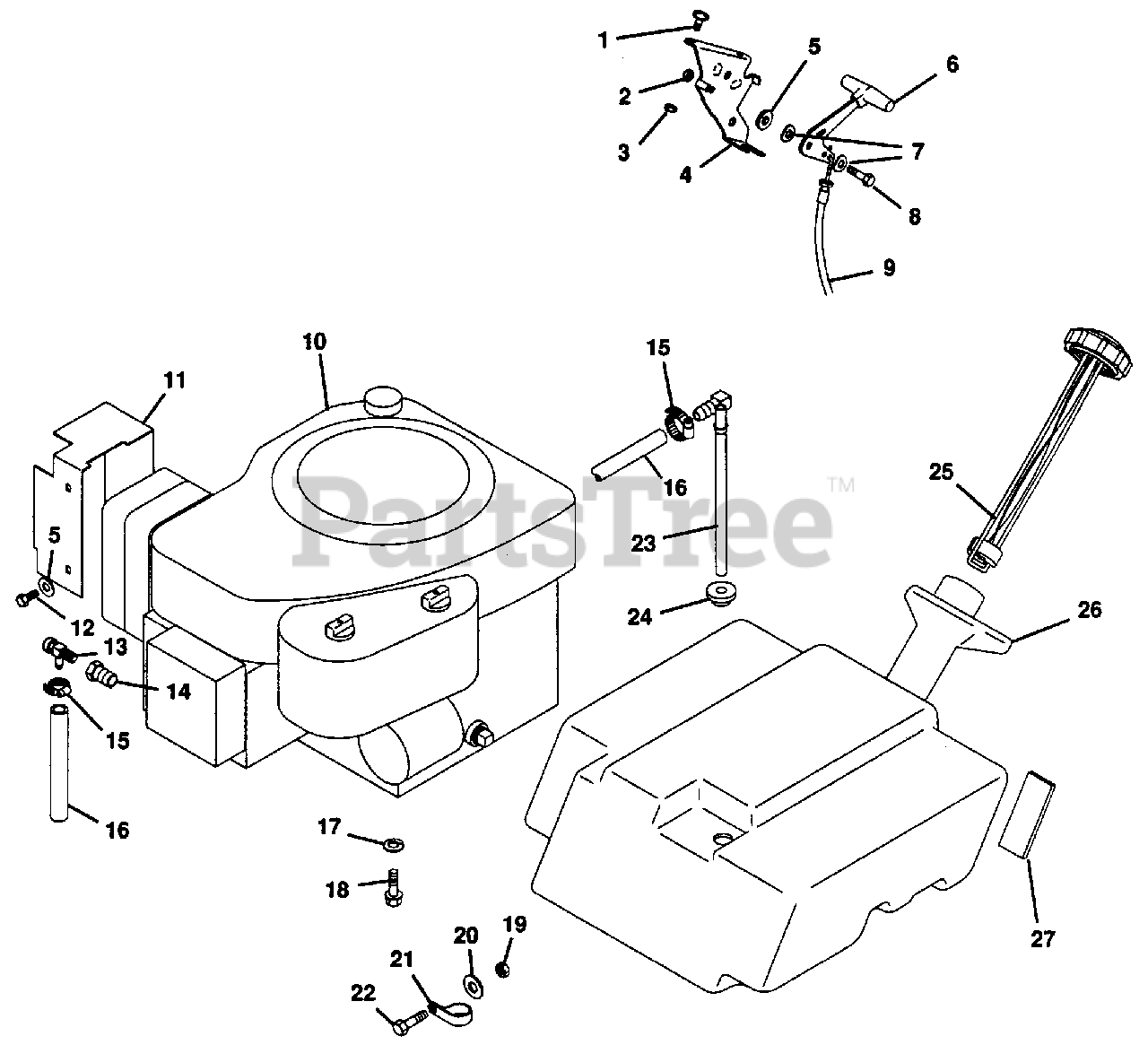

ENGINE, FUEL AND EXHAUST SYSTEM Parts Diagram

  • Title

1

Gravely 159929

SCR-MCH 10-24X.62 P/HD
(Superseded to 06111100)

$1.49

$

In Stock, Qty 10

0

2

Gravely 416430

NUT-LK-CTR .250-28 YWZC
(Superseded to 06533400)

$2.49

$

In Stock, Qty 10

0

3

Gravely 190254

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 011770

BRACKET - TROTTLE CABLE
(Superseded to 03493300)

$

$

Not available

5

Gravely 120392

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 011773

KNOB & LEVER ASS'Y
(Superseded to 06917100)

$

$

Not available

7

Gravely 011774

SPRING WASHER
(Superseded to 03493400)

$

$

Not available

8

Gravely 181003

BLT-HEX .25-28X.63
(Superseded to 05931900)

$

$

Not available

9

Gravely 049655

CABLE
(Superseded to 06920800)

$

$

Not available

10

Gravely 051389

12.5 B&S ENGINE

$

$

Not available

10

Gravely 051390

ENG,14-HP B&S

$

$

Not available

11

Gravely 051881

HEAT SHIELD
(Superseded to 03496700)

$

$

Not available

12

Gravely 047745

BLT-HEX M6 X 1.0X12 YWZC
(Superseded to 05969800)

$2.49

$

In Stock, Qty 10

0

13

Gravely 035329

DRAIN, 1/2" OIL
(Superseded to 00429000)

$40.99

$

In Stock, only 3 left!

0

14

Gravely 035328

ADAPTER, OIL DRAIN
(Superseded to 03493100)

$6.49

$

Usually ships in 4-12 days

0

15

Gravely 032045

HOSE CLAMP
(Superseded to 06924300)

$7.99

$

Usually ships in 4-12 days

0

16

Gravely 021134

HOSE, .25 LOW-PERM BULK GAS
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 120214

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 051732

SCR-TAP .38-16X1.25 HWH TR YZ
(Superseded to 07400128)

$3.49

$

In Stock, Qty 20+

0

19

Gravely 419455

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

20

Gravely 446354

WSHR-FL-STL .313X.875X.065
(Superseded to 06430700)

$

$

Not available

21

Gravely 050394

CLAMP, CUSHIONED STEEL
(Superseded to 06908200)

$6.49

$

Usually ships in 4-12 days

0

22

Gravely 180079

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

23

Gravely 050247

TANK FITTING
(Superseded to 03415900)

$

$

Not available

24

Gravely 050246

BSHG-FLG .375 X 1.062 X .625 R
(Superseded to 07511400)

$3.99

$

In Stock, Qty 20+

0

25

Gravely 050245

FUEL GAUGE & CAP
(Superseded to 03458400)

$

$

Not available

26

Gravely 050244

FUEL TANK
(Superseded to 03468000)

$

$

Not available

27

Gravely 031884

PAD, GAS TANK
(Superseded to 03301900)

$

$

Not available
