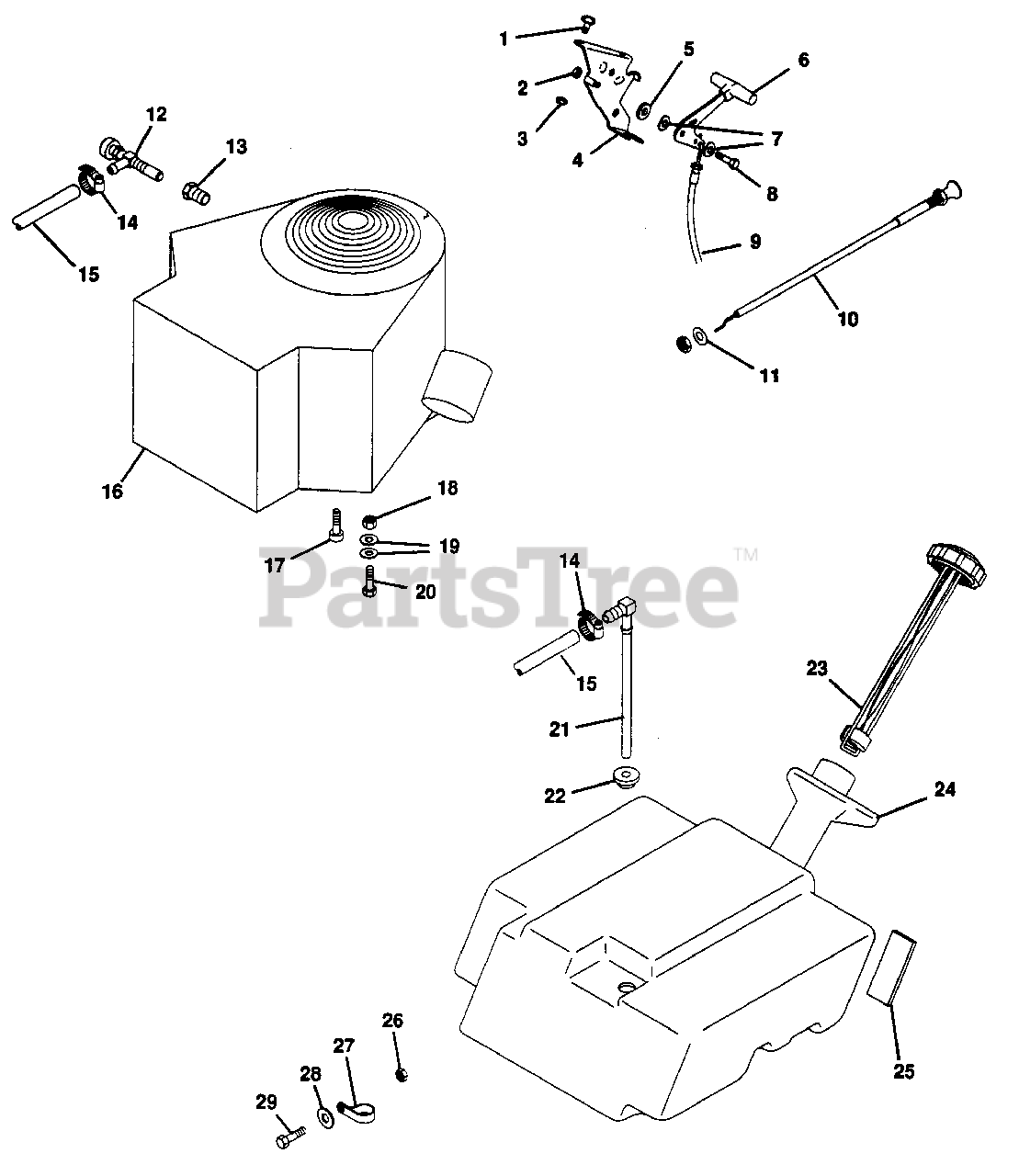

934018 - Gravely GEM Lawn Tractor, 16hp Briggs & Stratton, Hydro Drive (SN: 000101 & Above) > Parts Diagrams (13) > ENGINE, FUEL, AND EXHAUST SYSTEM

  • Title
159929

1

Screw, Mach. 10-24 x .625 PHD

Part# 159929 (Superseded to 06111100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

416430

2

Nut, Lock 1/4-28

Part# 416430 (Superseded to 06533400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

190254

3

Nut, Lock 10-24

Part# 190254 (Superseded to 06536000)

OEM Warranty Repair Part for Gravely

Not available

011770

4

Bracket, Mounting L.H.

Part# 011770 (Superseded to 03493300)

OEM Warranty Repair Part for Gravely

Not available

120392

5

Washer, Flat .281 x .625 x .065

Part# 120392 (Superseded to 06437300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

011773

6

Assembly, Knob and Lever

Part# 011773 (Superseded to 06917100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $33.48

011774

7

Washer, Spring

Part# 011774 (Superseded to 03493400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

181003

8

Bolt, Hex 1/4-28 x .625

Part# 181003 (Superseded to 05931900)

OEM Warranty Repair Part for Gravely

Not available

051536

9

Assembly, Conduit

Part# 051536 (Superseded to 06922600)

OEM Warranty Repair Part for Gravely

Not available

051537

10

Control, Choke

Part# 051537 (Superseded to 06918300)

OEM Warranty Repair Part for Gravely

Not available

120394

11

Washer, Flat .406 x .812 x .065

Part# 120394 (Superseded to 06436200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

035329

12

Cock, Oil Drain

Part# 035329 (Superseded to 00429000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $39.07

035328

13

Adaptor, Oil Drain

Part# 035328 (Superseded to 03493100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

032045

14

Clamp, Hose

Part# 032045 (Superseded to 06924300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.65

021134

15

Line, Fuel .5 OD x .25 ID

Part# 021134 (Superseded to 03278100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $0.45

051003

16

Engine, 16 HP B & S

Part# 051003

OEM Warranty Repair Part for Gravely

Not available

051666

17

Screw, M8 x 1.25 x 20mm SOC HD

Part# 051666 (Superseded to 05931800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.85

419455

18

Nut, Lock 5/16-18

Part# 419455 (Superseded to 06530200)

OEM Warranty Repair Part for Gravely

Not available

120393

19

Washer, Flat .344 x .688 x .065

Part# 120393 (Superseded to 06437200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

180085

20

Bolt, Hex 5/16-18 x 1.75

Part# 180085 (Superseded to 05957400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

050247

21

Fitting, Tank

Part# 050247 (Superseded to 03415900)

OEM Warranty Repair Part for Gravely

Not available

050246

22

Bush., .563 x 1.06 x .688

Part# 050246 (Superseded to 07511400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

050245

23

Fuel Gage and Cap

Part# 050245 (Superseded to 03458400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $39.07

050244

24

Tank, Fuel

Part# 050244 (Superseded to 03468000)

OEM Warranty Repair Part for Gravely

Not available

031884

25

Pad, Gas Tank

Part# 031884 (Superseded to 03301900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

419455

26

Nut, Lock 5/16-18

Part# 419455 (Superseded to 06530200)

OEM Warranty Repair Part for Gravely

Not available

050394

27

Clamp, Steel .625

Part# 050394 (Superseded to 06908200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

446354

28

Washer, Flat .313 x .875 x .065

Part# 446354 (Superseded to 06430700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $2.18

180079

29

Bolt, Hex 5/16-18 x 1.00

Part# 180079 (Superseded to 05946900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40
