934018 - Gravely GEM Lawn Tractor, 16hp Briggs & Stratton, Hydro Drive (SN: 000101 & Above)

GEM Lawn Tractor, 16hp Briggs & Stratton, Hydro Drive

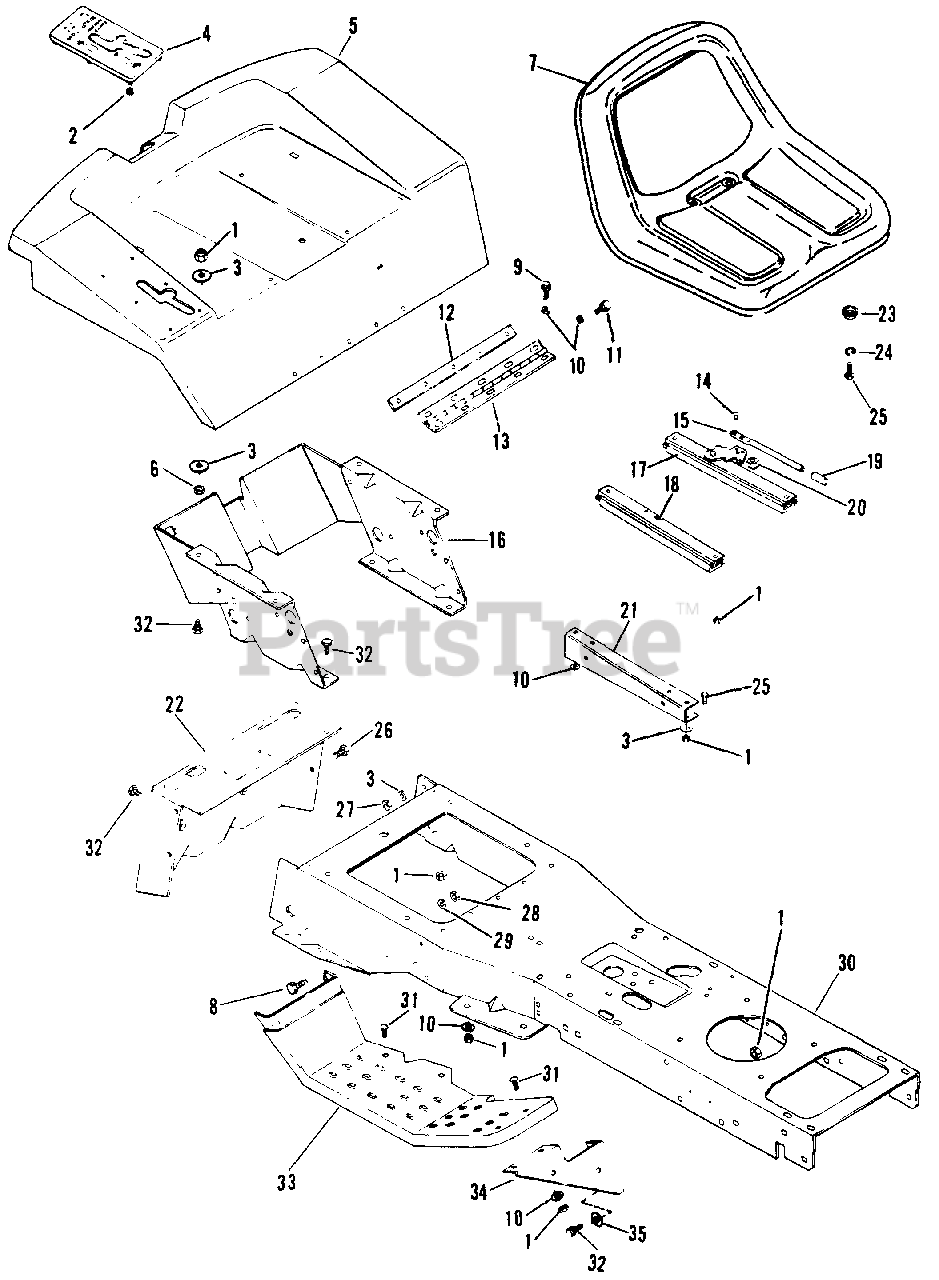

934018 - Gravely GEM Lawn Tractor, 16hp Briggs & Stratton, Hydro Drive (SN: 000101 & Above) > Parts Diagrams (13) > FRAME AND REAR DECK

  • Title
419455

1

Nut, Lock 5/16-18

Part# 419455 (Superseded to 06530200)

OEM Warranty Repair Part for Gravely

Not available

050378

2

Palnut, 1/4

Part# 050378 (Superseded to 07017900)

OEM Warranty Repair Part for Gravely

Not available

446470

3

Washer, Flat .375 x 1.125 x .065

Part# 446470 (Superseded to 06425500)

OEM Warranty Repair Part for Gravely

Not available

050154

4

Speed Selector Insert

Part# 050154 (Superseded to 03450000)

OEM Warranty Repair Part for Gravely

Not available

050155

5

Deck, Rear

Part# 050155 (Superseded to 03449353)

OEM Warranty Repair Part for Gravely

Not available

120376

6

Nut, Hex 5/16-18

Part# 120376 (Superseded to 06529200)

OEM Warranty Repair Part for Gravely

Not available

045610

7

Seat, High Back

Part# 045610 (Superseded to 59100200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $362.84

180020

8

Bolt, Hex 1/4-20 x .750

Part# 180020 (Superseded to 05946800)

OEM Warranty Repair Part for Gravely

Not available

039094

9

Screw, Taptite 5/16-18 x .75

Part# 039094 (Superseded to 07414400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

120393

10

Washer, Flat .344 x .688 x.065

Part# 120393 (Superseded to 06437200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

036905

11

Screw, Taptite 5/16-18 x .50

Part# 036905 (Superseded to 07411500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

050162

12

Strap

Part# 050162 (Superseded to 03457400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

039090

13

Hinge

Part# 039090 (Superseded to 03102800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $24.54

159929

14

Screw, Mach. 10-24 x .625 PHD

Part# 159929 (Superseded to 06111100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

039063

15

Handle, Seat Slide

Part# 039063 (Superseded to 03416500)

OEM Warranty Repair Part for Gravely

Not available

050161

16

Deck, Support

Part# 050161 (Superseded to 03448500)

OEM Warranty Repair Part for Gravely

Not available

035641

17

Adjuster, Seat w/Latch

Part# 035641 (Superseded to 03600800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $90.00

035642

18

Adjuster, Seat

Part# 035642 (Superseded to 03600800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $90.00

043192

19

Tips, Brake Lock Lever

Part# 043192 (Superseded to 07503800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.23

190254

20

Nut, Lock 10-24

Part# 190254 (Superseded to 06536000)

OEM Warranty Repair Part for Gravely

Not available

048604

21

Spacer, Seat

Part# 048604 (Superseded to 03340200)

OEM Warranty Repair Part for Gravely

Not available

049363

22

Weldment, Tailboard

Part# 049363 (Superseded to 03448900)

OEM Warranty Repair Part for Gravely

Not available

035670

23

Bushing, Flange Steel

Part# 035670 (Superseded to 03418300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

120214

24

Washer, Lock 5/16 Reg.

Part# 120214 (Superseded to 06308600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

180077

25

Bolt, Hex 5/16-18 x .75

Part# 180077 (Superseded to 05947000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

180121

26

Bolt, Hex 3/8-16 x .875

Part# 180121 (Superseded to 05932600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

456004

27

Nut, Lock 3/8-16

Part# 456004 (Superseded to 06535800)

OEM Warranty Repair Part for Gravely

Not available

419454

28

Nut, Lock 1/4-20

Part# 419454 (Superseded to 06531000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

120392

29

Washer, Flat .281 x .625 x .065

Part# 120392 (Superseded to 06437300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

049126

30

Frame

Part# 049126 (Superseded to 03448800)

OEM Warranty Repair Part for Gravely

Not available

126358

31

Bolt, Carriage 5/16-18 x 1.0

Part# 126358 (Superseded to 06216100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

180079

32

Bolt, Hex 5/16-18 x 1.00

Part# 180079 (Superseded to 05946900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

050163

33

Foot Rest, R.H.

Part# 050163 (Superseded to 03408253)

OEM Warranty Repair Part for Gravely

Not available

050164

33

Foot Rest, L.H.

Part# 050164

OEM Warranty Repair Part for Gravely

Not available

050167

34

Foot Rest Brace, R.H.

Part# 050167 (Superseded to 03473600)

OEM Warranty Repair Part for Gravely

Not available

050166

34

Foot Rest Brace, L.H.

Part# 050166 (Superseded to 03473500)

OEM Warranty Repair Part for Gravely

Not available

446354

35

Washer, Flat .313 x .875 x .065

Part# 446354 (Superseded to 06430700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $2.18
