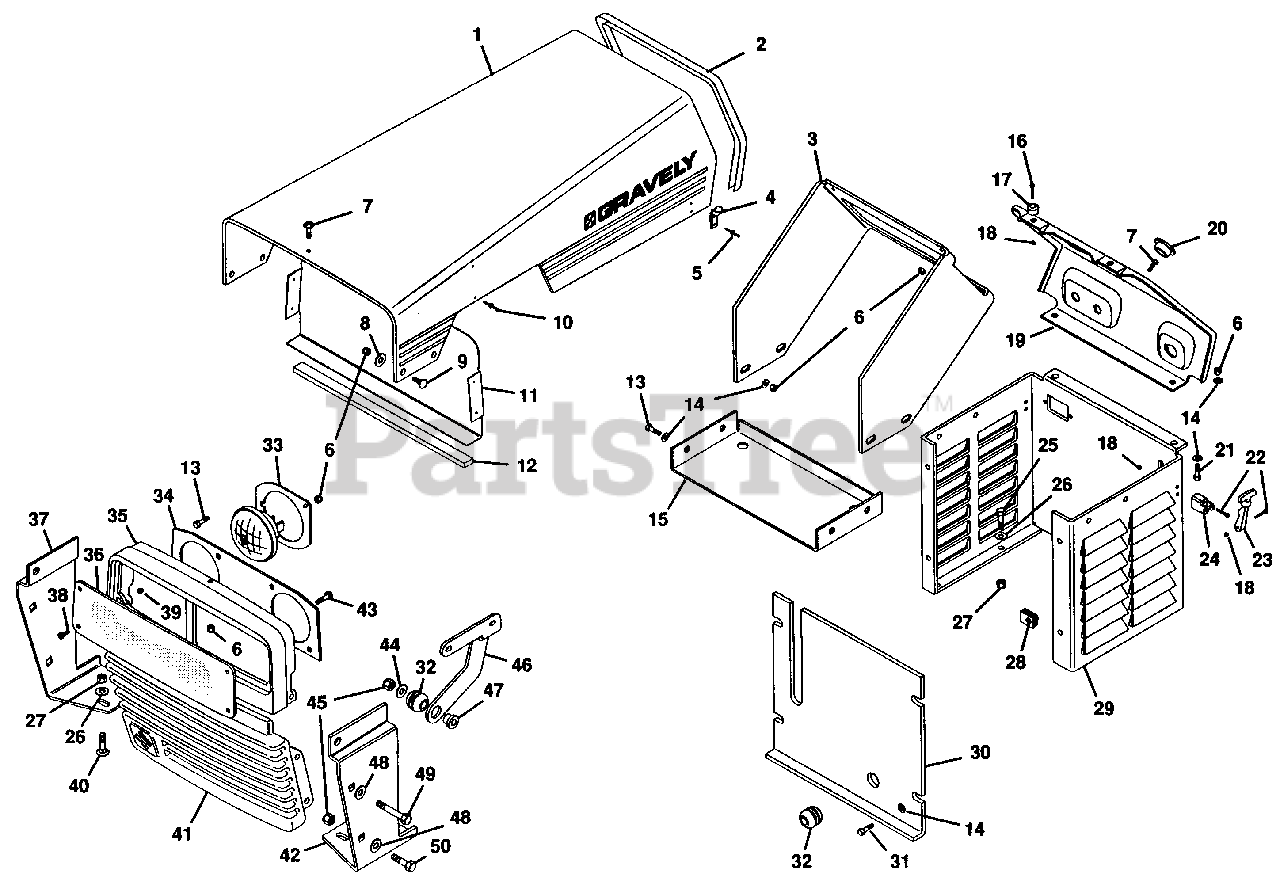

934018 - Gravely GEM Lawn Tractor, 16hp Briggs & Stratton, Hydro Drive (SN: 000101 & Above) > Parts Diagrams (13) > HOOD AND GRILLE

  • Title
051163

1

Hood, GEM Silkscreen

Part# 051163 (Superseded to 03495200)

OEM Warranty Repair Part for Gravely

Not available

046424

2

Strip, Cowl

Part# 046424 (Superseded to 00922700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

047651

3

Bracket, Support

Part# 047651 (Superseded to 03492900)

OEM Warranty Repair Part for Gravely

Not available

050505

4

Keeper

Part# 050505 (Superseded to 03494500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

032661

5

Rivet, Dome Head

Part# 032661 (Superseded to 06807500)

OEM Warranty Repair Part for Gravely

Not available

041954

6

Nut, Lock 1/4-20

Part# 041954 (Superseded to 08940000)

OEM Warranty Repair Part for Gravely

Not available

160541

7

Screw, Mach. 1/4-20 PHD

Part# 160541 (Superseded to 06113500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

422845

8

Washer, Flat .281 x .625 x .065

Part# 422845 (Superseded to 06437300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

120518

9

Bolt, 1/4-20 x .75 Rd Hd Sq Nk

Part# 120518 (Superseded to 06219900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

011884

10

Rivet, Pop .125 x .232

Part# 011884 (Superseded to 06807300)

OEM Warranty Repair Part for Gravely

Not available

051410

11

Baffle

Part# 051410 (Superseded to 03495400)

OEM Warranty Repair Part for Gravely

Not available

051532

12

Pad, Baffle

Part# 051532 (Superseded to 03496200)

OEM Warranty Repair Part for Gravely

Not available

180022

13

Bolt, Hex 1/4-20 x 1.00

Part# 180022 (Superseded to 05947700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

120392

14

Washer, Flat .281 x .625 x .065

Part# 120392 (Superseded to 06437300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

047648

15

Tray, Battery

Part# 047648 (Superseded to 03492000)

OEM Warranty Repair Part for Gravely

Not available

159341

16

Screw, Mach. 6-32 x .625 PHD

Part# 159341 (Superseded to 06110700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

018183

17

Bumper

Part# 018183 (Superseded to 07017400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

427254

18

Nut, Mach. Lock 6-32

Part# 427254 (Superseded to 06538900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

051534

19

Panel, Silkscreen Control

Part# 051534 (Superseded to 03495100)

OEM Warranty Repair Part for Gravely

Not available

010174

20

Bushing, Flange Nylon

Part# 010174 (Superseded to 05518400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

180018

21

Bolt, Hex 1/4-20 x .625

Part# 180018 (Superseded to 05932000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

159358

22

Screw, Mach. 6-32 x 1.0 PHCR

Part# 159358 (Superseded to 06110800)

OEM Warranty Repair Part for Gravely

Not available

050504

23

Latch, Flexible Draw

Part# 050504 (Superseded to 07519700)

OEM Warranty Repair Part for Gravely

Not available

047675

24

Block, Tie-Down

Part# 047675 (Superseded to 07519600)

OEM Warranty Repair Part for Gravely

Not available

180079

25

Bolt, Hex 5/16-18 x 1.00

Part# 180079 (Superseded to 05946900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

120393

26

Washer, Flat .344 x .688 x .065

Part# 120393 (Superseded to 06437200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

419455

27

Nut, Lock 5/16-18

Part# 419455 (Superseded to 06530200)

OEM Warranty Repair Part for Gravely

Not available

032369

28

Nut, Retainer

Part# 032369 (Superseded to 07009000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

050671

29

Panel, Silkscreen

Part# 050671 (Superseded to 03492200)

OEM Warranty Repair Part for Gravely

Not available

047669

30

Cover, Hydraulic Tank

Part# 047669 (Superseded to 03494400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.81

180020

31

Bolt, Hex 1/4-20 x .75

Part# 180020 (Superseded to 05946800)

OEM Warranty Repair Part for Gravely

Not available

035518

32

Grommet

Part# 035518 (Superseded to 07504200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

039070

33

Ring, Headlight Retainer

Part# 039070 (Superseded to 03115900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $22.25

038672

34

Panel, Headlight Reflector

Part# 038672 (Superseded to 03067000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $22.25

038673

35

Headlight, Bezel

Part# 038673 (Superseded to 03066800)

OEM Warranty Repair Part for Gravely

Not available

038671

36

Panel, Headlight Lense

Part# 038671 (Superseded to 03066900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $73.73

051540

37

Bracket, Grille(R.H.)

Part# 051540 (Superseded to 03495500)

Note: (R.H.)

OEM Warranty Repair Part for Gravely

Not available

159947

38

Screw, Mach. 10-24 x .75 PHD

Part# 159947 (Superseded to 06111200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.85

190254

39

Nut, Lock 10-24

Part# 190254 (Superseded to 06536000)

OEM Warranty Repair Part for Gravely

Not available

126358

40

Bolt, Carriage 5/16-18 x 1.0

Part# 126358 (Superseded to 06216100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

039831

41

Casting, Grille

Part# 039831 (Superseded to 03493700)

OEM Warranty Repair Part for Gravely

Not available

047610

42

Bracket(L.H.)

Part# 047610 (Superseded to 03495700)

Note: (L.H.)

OEM Warranty Repair Part for Gravely

Not available

045207

43

Screw, 1/4-20 x .50 Self Tapping

Part# 045207 (Superseded to 07400034)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

120388

44

Washer, Flat .438 x 1.000 x .083

Part# 120388 (Superseded to 06435900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

456004

45

Nut, Lock 3/8-16

Part# 456004 (Superseded to 06535800)

OEM Warranty Repair Part for Gravely

Not available

039047

46

Hinge, Hood L.H.

Part# 039047 (Superseded to 03118600)

OEM Warranty Repair Part for Gravely

Not available

039049

46

Hinge, Hood R.H.

Part# 039049 (Superseded to 03118500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

036849

47

Spacer

Part# 036849 (Superseded to 03114500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $8.89

120394

48

Washer, Flat .406 x .812 x .065

Part# 120394 (Superseded to 06436200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

180130

49

Bolt, Hex 3/8-16 x 2.00

Part# 180130 (Superseded to 05963300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

180124

50

Bolt, Hex 3/8-16 x 1.25

Part# 180124 (Superseded to 05958000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85
