934019 - Ariens High Sierra Garden Tractor, 16hp Kohler, Hydro (SN: 000101 & Above) Front Axle Parts Diagram

High Sierra Garden Tractor, 16hp Kohler, Hydro

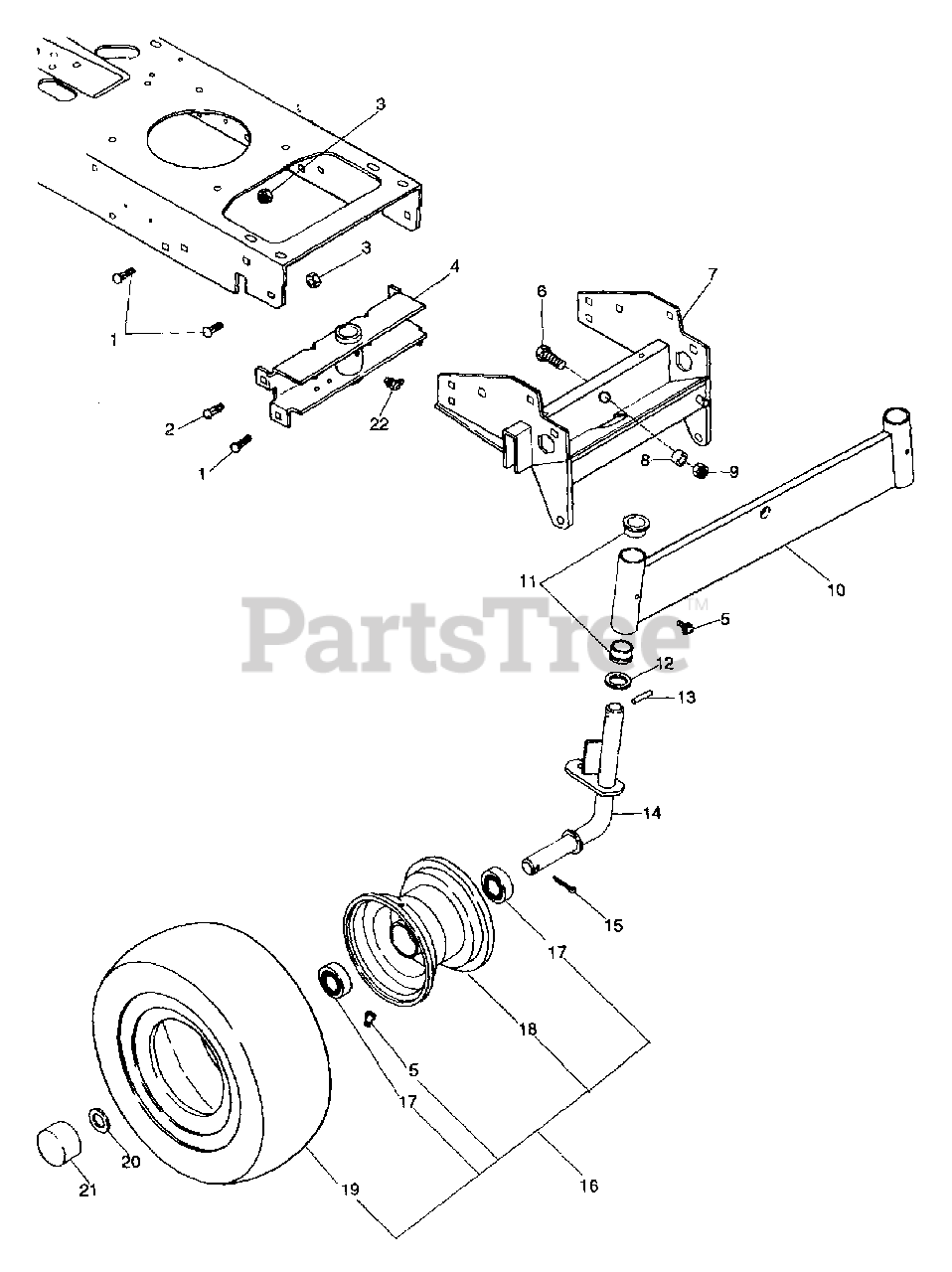

Front Axle Parts Diagram

  • Title

1

Ariens 06201000

BLT-RDHDSQNK .38-16X.75 SHT PL
(Superseded to 06200336)

$2.99

$

In Stock, Qty 20+

0

2

Ariens 06201300

BLT-RDHDSQSHNK .38-16X1.00 PL
(Superseded to 06212000)

$1.99

$

Usually ships in 4-12 days

0

3

Ariens 06508000

NUT-LK-FLG .375-16 PL

$4.99

$

Usually ships in 4-12 days

0

4

Ariens 03450800

PIVOT CHANNEL

$

$

Not available

5

Ariens 02209300

SPIN DRIVE ZERK FITTING
(Superseded to 07012600)

$

$

Not available

6

Ariens 05920000

BLT-HEX .50-13X1.50 PL GR5
(Superseded to 05962000)

$4.99

$

In Stock, Qty 7

0

7

Ariens 03451300

FRONT AXLE SUPPORT

$

$

Not available

8

Ariens 03503200

SPACER .531X.748X.524

$

$

Not available

9

Ariens 06512700

NUT-LK-CROWN .50-13 GR C PL
(Superseded to 06528200)

$3.99

$

In Stock, Qty 11

0

10

Ariens 03440100

FRONT AXLE
(Superseded to 53402300)

$

$

Not available

11

Ariens 05510600

BSHG-FLG 1.000X1.25X.75X1.50

$

$

Not available

12

Ariens 06404600

WSHR-FL-STL 1.010X1.505X.062PL
(Superseded to 06436300)

$1.99

$

In Stock, Qty 18

0

13

Ariens 05803800

PIN-ROLL .250X1.38

$

$

Not available

14

Ariens 03457900

LH SPINDLE

$

$

Not available

14

Ariens 03458000

RH SPINDLE

$

$

Not available

15

Ariens 06702700

PIN-COTR .25X1.50 ST PL

$

$

Not available

16

Ariens 07115800

T/WHL ASSY 15 X6-6

$

$

Not available

17

Ariens 05412100

BRG-BALL 1.0X2.0X.55

$

$

Not available

18

Ariens 07113400

WHL

$

$

Not available

19

Ariens 07109900

TIRE

$

$

Not available

20

Ariens 06418500

WSHR-FL-STL 1.015X1.500X.125
(Superseded to 06400025)

$6.49

$

Usually ships in 4-12 days

0

21

Ariens 07508900

FRONT HUB CAP

$

$

Not available

22

Ariens 03459000

SPIN DRIVE ZERK FITTING 90

$

$

Not available
