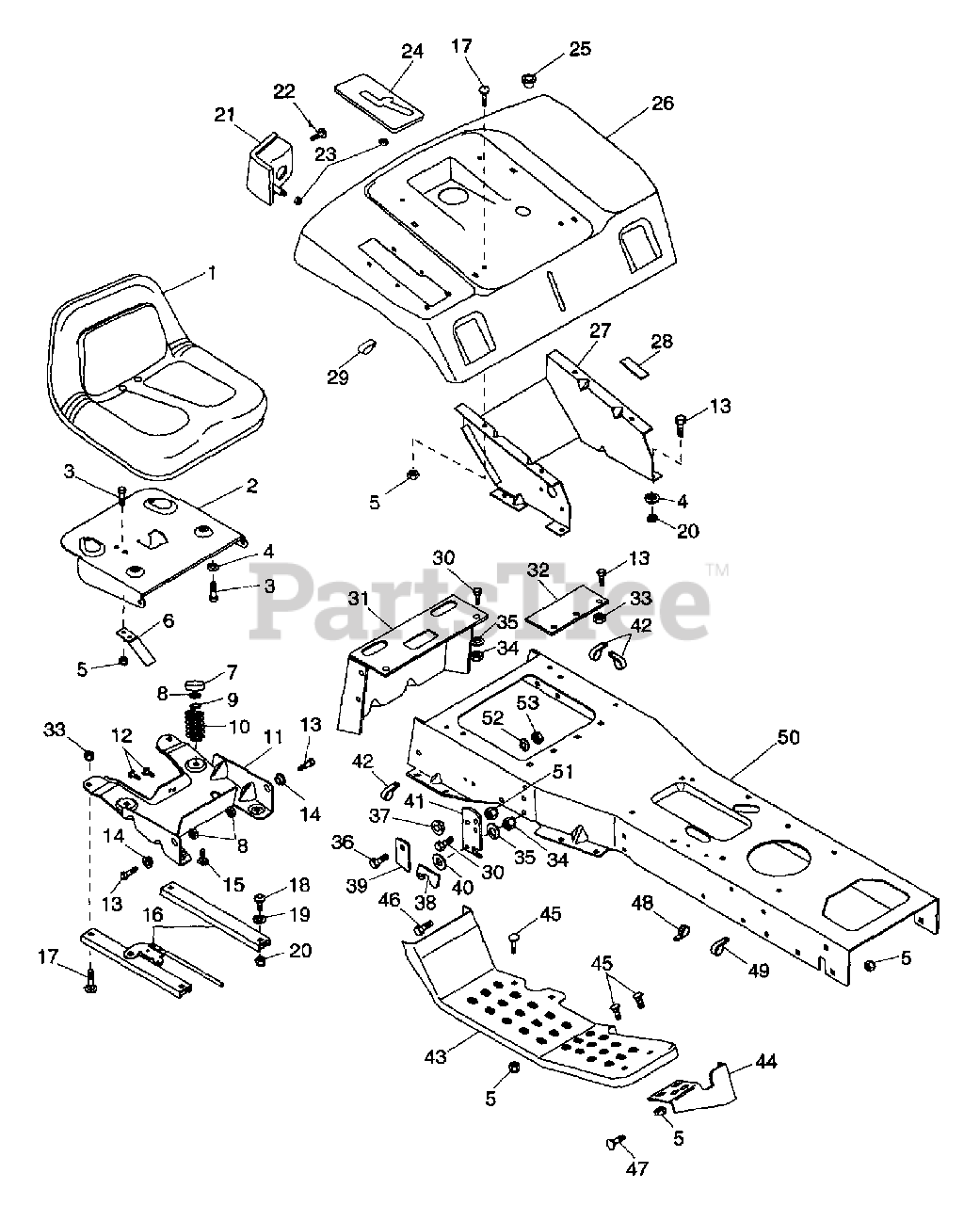

934019 - Ariens High Sierra Garden Tractor, 16hp Kohler, Hydro (SN: 000101 & Above) Seat And Rear Deck Parts Diagram

High Sierra Garden Tractor, 16hp Kohler, Hydro

Seat And Rear Deck Parts Diagram

  • Title

1

Ariens 03606700

SEAT- V-560
(Superseded to 00366300)

$

$

Not available

2

Ariens 03619151

SEAT PIVOT PLATE
(Superseded to 03619100)

$

$

Not available

3

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.49

$

In Stock, Qty 12

0

4

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, only 4 left!

0

5

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.49

$

In Stock, only 4 left!

0

6

Ariens 03616700

SPRING PLATE

$

$

Not available

7

Ariens 07521600

TUBE CAP

$1.49

$

Usually ships in 4-12 days

0

8

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 06412300

WSHR-FL-STL.344X.688X.065PL
(Superseded to 06437200)

$0.99

$

In Stock, Qty 11

0

10

Ariens 08328900

SG-COMP .148X1.23X2.41 WLD87
(Superseded to 08328200)

$15.99

$

In Stock, only 2 left!

0

11

Ariens 03618100

BOX, SEAT

$

$

Not available

12

Ariens 07404500

SCR-TAP 12-24X.50 HWH PL TR
(Superseded to 07411900)

$2.49

$

In Stock, Qty 11

0

13

Ariens 05913500

BLT-HEX .31-18X.75 PL GR5
(Superseded to 05947000)

$1.49

$

In Stock, Qty 12

0

14

Ariens 05516200

BSHG-FLG .325X.465X.333X.685

$17.99

$

Usually ships in 4-12 days

0

15

Ariens 06204100

BLT-RDHDSQNK.31-18X.75GR5SHTPL
(Superseded to 06220800)

$2.49

$

In Stock, Qty 9

0

16

Ariens 03600800

SEAT SLIDES -(RAME TAK-3010-4)

Note: (Rametak 3010-4)

$104.99

$

Usually ships in 4-12 days

0

17

Ariens 06203300

BLT-RDHDSQNK .312-18X.62SHTPL
(Superseded to 06212200)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 07008100

SCR-CAP BTHD.31-18X.50 GR5 YZ

$2.49

$

Usually ships in 4-12 days

0

19

Ariens 06303200

WSHR-LK-EXT .313X.030 PL

$2.49

$

Usually ships in 4-12 days

0

20

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 16

0

21

Ariens 03416300

RIGHT TAIL LIGHT

Note: (20)

$

$

Not available

21

Ariens 03416400

LEFT TAIL LIGHT

Note: (20)

$

$

Not available

22

Ariens 07400100

SCR-TAP 10-12X.50 CRPH PL A

Note: (Used Only On Model(s): 020).

$

$

Not available

23

Ariens 07008000

NUT-SELF-THRDNG FITS.25 STUDPL

Note: (Used Only On Model(s): 020).

$2.99

$

In Stock, only 1 left!

0

23

Ariens 07008000

NUT-SELF-THRDNG FITS.25 STUDPL

Note: (19)

$2.99

$

In Stock, only 1 left!

0

24

Ariens 03450000

INSERT

$

$

Not available

25

Ariens 07506500

GROMMET 1.0ID X 1.38 OD

$3.49

$

In Stock, only 1 left!

0

26

Ariens 03498700

REAR DECK F/TL

Note: (Used Only On Model(s): 020).

$

$

Not available

26

Ariens 03616000

REAR DECK- HYDRO

Note: (Used Only On Model(s): 019).

$

$

Not available

27

Ariens 03606200

DECK SUPPORT

$

$

Not available

28

Ariens 03558100

FOAM TAPE

$

$

Not available

29

Ariens 07510700

WIRE CLIP

Note: (Used Only On Model(s): 020).

$

$

Not available

30

Ariens 05914500

BLT-HEX .38-16X1.00 PL GR5
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

31

Ariens 03448900

TAILBOARD

$

$

Not available

32

Ariens 03497300

SUPPORT PLATE

$

$

Not available

33

Ariens 06506200

NUT-LK-NYL.312-18 PL
(Superseded to 06530200)

$0.99

$

Usually ships in 4-12 days

0

34

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

Usually ships in 4-12 days

0

35

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$3.49

$

In Stock, Qty 10

0

36

Ariens 05915100

BLT-HEX .38-16X1.50 PL GR5
(Superseded to 05957900)

$1.49

$

In Stock, Qty 5

0

37

Ariens 03459700

SPACER .400X.625X.400X.875

$

$

Not available

38

Ariens 03055400

LATCH RH

$

$

Not available

38

Ariens 03055500

LATCH LH

$62.99

$

Usually ships in 4-12 days

0

39

Ariens 03460000

LOCK STOP

$

$

Not available

40

Ariens 02902400

SPRING WASHER

$18.99

$

Usually ships in 4-12 days

0

41

Ariens 03459500

REAR HANGER

$

$

Not available

42

Ariens 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

43

Ariens 03605000

FOOTREST RH

$

$

Not available

43

Ariens 03605100

FOOTREST LH

$

$

Not available

44

Ariens 03610300

R. FOOT REST BRACE

$

$

Not available

44

Ariens 03610200

L. FOOT REST BRACE

$

$

Not available

45

Ariens 06201100

BLT-RDHDSQNK .31-18X.75 GR5 PL
(Superseded to 06215700)

$2.49

$

In Stock, only 1 left!

0

46

Ariens 05908000

BLT-HEX .25-20X.63 PL GR2
(Superseded to 05932000)

$1.99

$

In Stock, only 1 left!

0

47

Ariens 06203400

BLT-RDHDSQNK .31-18X.75 SHT PL
(Superseded to 06214100)

$2.49

$

In Stock, Qty 9

0

48

Ariens 06910600

CLIP

$

$

Not available

49

Ariens 06909400

J-CLAMP

$3.49

$

In Stock, Qty 11

0

50

Ariens 03448800

MAIN FRAME

$

$

Not available

51

Ariens 06512200

NUT-LK TOP .375-16 GR C YWZC

$2.49

$

Usually ships in 4-12 days

0

52

Ariens 06300200

WSHR-LK .250X.077 HVY PL
(Superseded to 06308000)

$0.99

$

Usually ships in 4-12 days

0

53

Ariens 06503200

NUT-HEX .250-20 PL
(Superseded to 06533200)

$0.99

$

In Stock, Qty 7

0
