934022 - Gravely GEM Lawn Tractor, 16hp Briggs & Stratton, Hydro Drive (SN: 000101 & Above) ENGINE, FUEL AND EXHAUST SYSTEM Parts Diagram

GEM Lawn Tractor, 16hp Briggs & Stratton, Hydro Drive

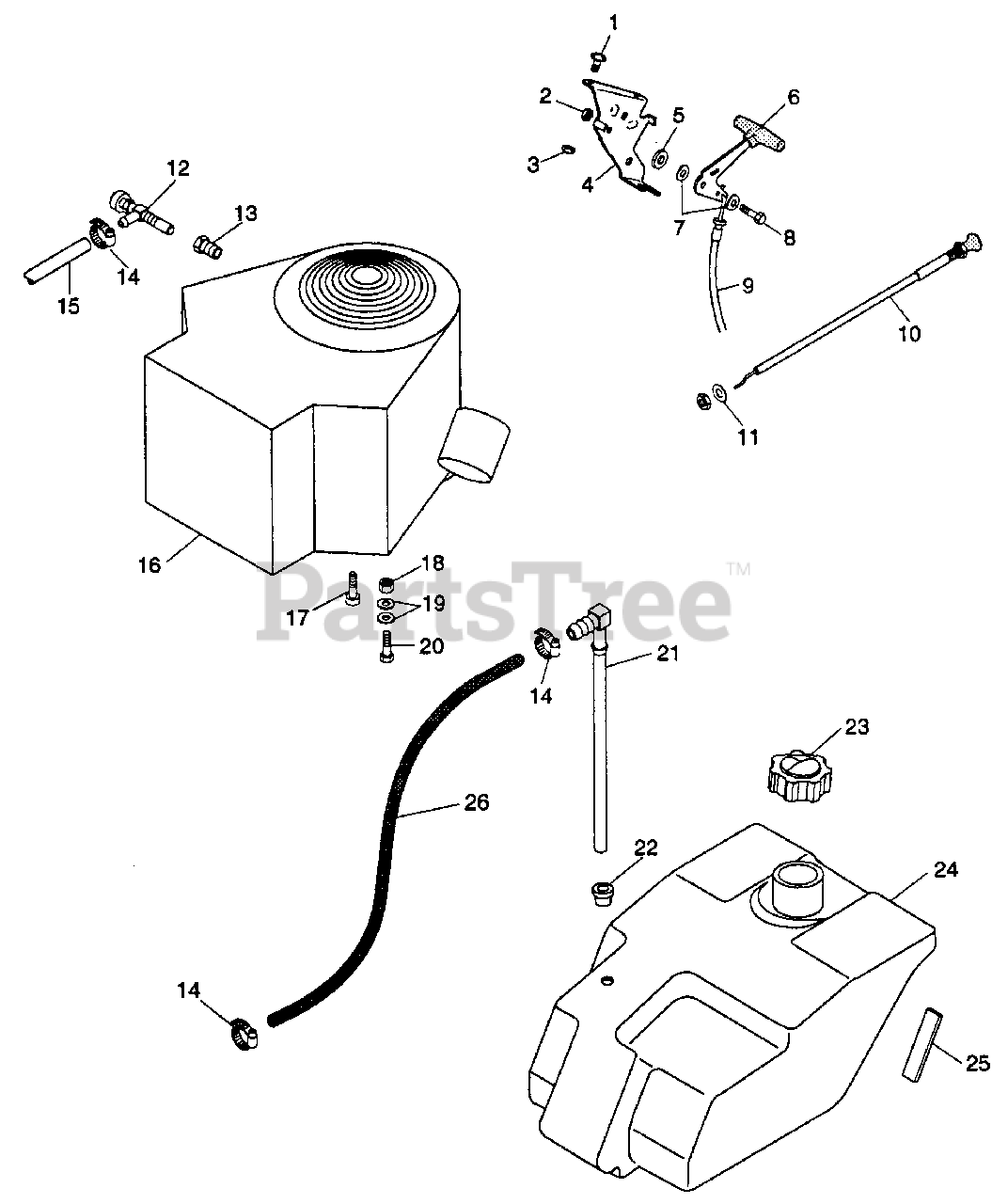

ENGINE, FUEL AND EXHAUST SYSTEM Parts Diagram

  • Title

1

Gravely 159929

Scr-Mch 10-24 x .625 P/HD
(Superseded to 06111100)

$0.99

$

In Stock, Qty 16

0

2

Gravely 416430

Nut-Lk-Ctr .250-28 Typ N
(Superseded to 06533400)

$1.99

$

In Stock, Qty 10

0

3

Gravely 190254

Nut-Lk 10-24 Ny Pl
(Superseded to 06500915)

$0.99

$

In Stock, only 4 left!

0

4

Gravely 011770

Bracket-Throttle Cable
(Superseded to 03493300)

$

$

Not available

5

Gravely 120392

Wshr-Fl-Stl .281 x .625 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

6

Gravely 011773

Knob & Lever Ass'y
(Superseded to 06917100)

$

$

Not available

7

Gravely 011774

Spring Washer
(Superseded to 03493400)

$5.99

$

Usually ships in 4-12 days

0

8

Gravely 181003

Blt-Hex .25-28 x .63
(Superseded to 05931900)

$

$

Not available

9

Gravely 051536

Cable
(Superseded to 06922600)

$

$

Not available

10

Gravely 051537

Choke Cable
(Superseded to 06918300)

$

$

Not available

11

Gravely 120394

Wshr-Fl-Stl .406 x .812 x .065 Pl
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 035329

Cock, Oil Drain
(Superseded to 00429000)

$39.99

$

In Stock, only 1 left!

0

13

Gravely 035328

Adapter, Oil Drain
(Superseded to 03493100)

$5.99

$

Usually ships in 4-12 days

0

14

Gravely 032045

Hose Clamp
(Superseded to 06924300)

$6.99

$

Usually ships in 4-12 days

0

15

Gravely 033280

Gas Line Hose 11"
(Superseded to 03328000)

$

$

Not available

16

Gravely 052614

Engine 16 HP B & S

$

$

Not available

17

Gravely 051666

Blt-Hex M8 x 1.25 x 20mm Pl
(Superseded to 05931800)

$2.49

$

Usually ships in 4-12 days

0

18

Gravely 419455

Nut-Lk-Nyl .312-18 Pl
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

19

Gravely 120393

Wshr-Fl-Stl .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 9

0

20

Gravely 180085

Blt-Hex .31-18 x 1.75 Gr 5
(Superseded to 05901804)

$2.99

$

In Stock, Qty 12

0

21

Gravely 036065

Tank Fitting

$

$

Not available

22

Gravely 050246

Bushing
(Superseded to 07511400)

$3.49

$

In Stock, Qty 20+

0

23

Gravely 036019

Fuel Cap
(Superseded to 03502700)

$3.99

$

Usually ships in 4-12 days

0

24

Gravely 036061

Fuel Tank
(Superseded to 20069800)

$22.99

$

Usually ships in 4-12 days

0

25

Gravely 031884

Pad, Gas Tank
(Superseded to 03301900)

$

$

Not available

26

Gravely 033279

Gas Line Hose 53"
(Superseded to 03327900)

$

$

Not available
