934022 - Gravely GEM Lawn Tractor, 16hp Briggs & Stratton, Hydro Drive (SN: 000101 & Above) ENGINE, FUEL AND EXHAUST SYSTEM Parts Diagram

GEM Lawn Tractor, 16hp Briggs & Stratton, Hydro Drive

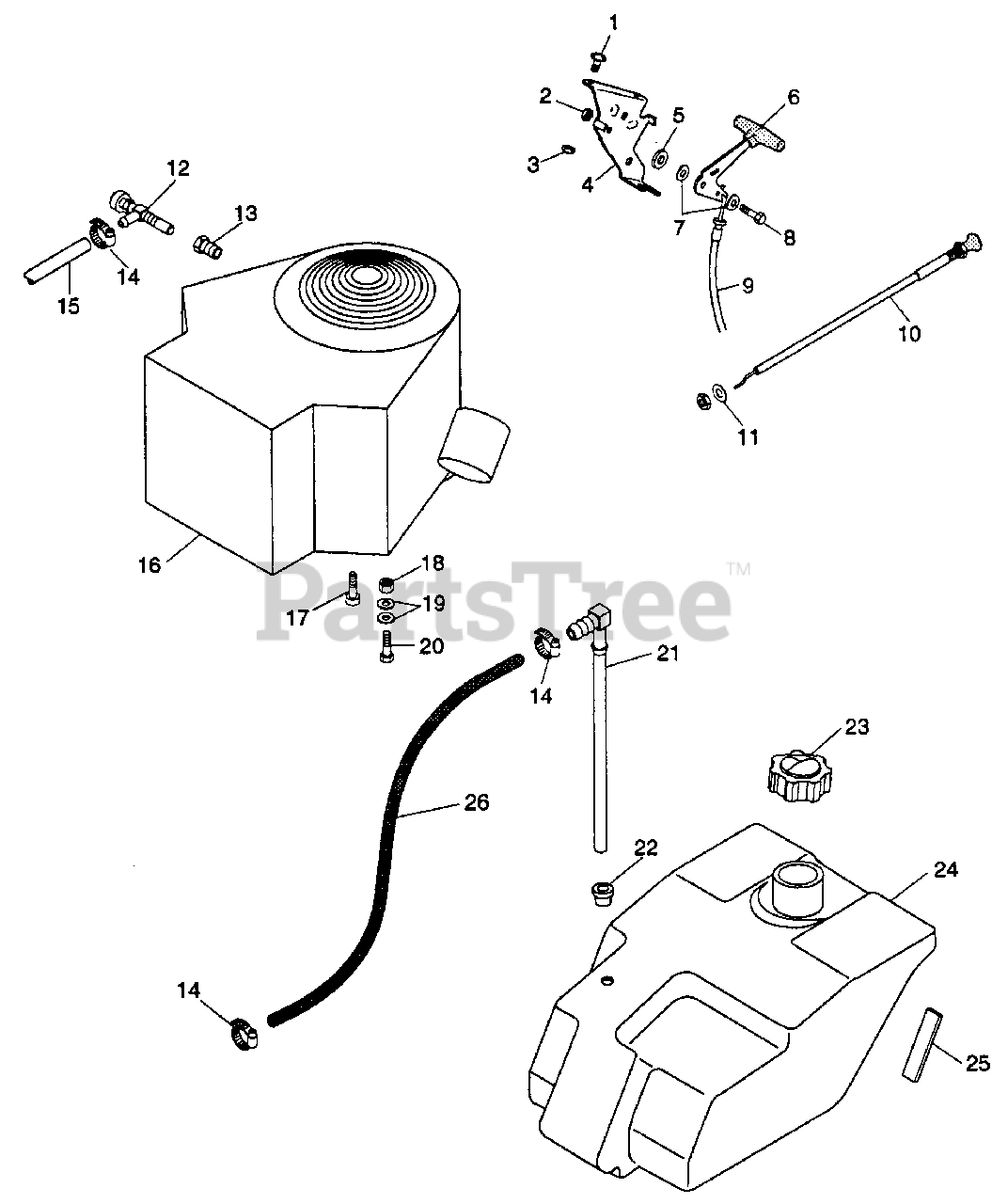

ENGINE, FUEL AND EXHAUST SYSTEM Parts Diagram

  • Title

1

Gravely 159929

SCR-MCH 10-24X.62 P/HD
(Superseded to 06111100)

$1.49

$

In Stock, Qty 10

0

2

Gravely 416430

NUT-LK-CTR .250-28 YWZC
(Superseded to 06533400)

$2.49

$

In Stock, Qty 10

0

3

Gravely 190254

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 011770

BRACKET - TROTTLE CABLE
(Superseded to 03493300)

$

$

Not available

5

Gravely 120392

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 011773

KNOB & LEVER ASS'Y
(Superseded to 06917100)

$

$

Not available

7

Gravely 011774

SPRING WASHER
(Superseded to 03493400)

$

$

Not available

8

Gravely 181003

BLT-HEX .25-28X.63
(Superseded to 05931900)

$

$

Not available

9

Gravely 051536

CABLE
(Superseded to 06922600)

$

$

Not available

10

Gravely 051537

CHOKE CABLE
(Superseded to 06918300)

$

$

Not available

11

Gravely 120394

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 035329

DRAIN, 1/2" OIL
(Superseded to 00429000)

$40.99

$

In Stock, only 3 left!

0

13

Gravely 035328

ADAPTER, OIL DRAIN
(Superseded to 03493100)

$6.49

$

Usually ships in 4-12 days

0

14

Gravely 032045

HOSE CLAMP
(Superseded to 06924300)

$7.99

$

Usually ships in 4-12 days

0

15

Gravely 033280

GAS LINE HOSE 1/4 X 11"
(Superseded to 03328000)

$

$

Not available

16

Gravely 052614

ENGINE- 16.0 B&S VANGUARD TWIN

$

$

Not available

17

Gravely 051666

SCR-SKH M8 X 1.25X20
(Superseded to 05931800)

$2.99

$

Usually ships in 4-12 days

0

18

Gravely 419455

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

19

Gravely 120393

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 180085

BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$3.49

$

In Stock, Qty 9

0

21

Gravely 036065

TANK FITTING

$

$

Not available

22

Gravely 050246

BSHG-FLG .375 X 1.062 X .625 R
(Superseded to 07511400)

$3.99

$

In Stock, Qty 20+

0

23

Gravely 036019

SPACER -FLANGED .325X.498X.318
(Superseded to 03502700)

$

$

Not available

24

Gravely 036061

KNOB,ADJ. CONTROL
(Superseded to 20069800)

$23.99

$

Usually ships in 4-12 days

0

25

Gravely 031884

PAD, GAS TANK
(Superseded to 03301900)

$

$

Not available

26

Gravely 033279

GAS LINE HOSE 1/4 X 46"
(Superseded to 03327900)

$

$

Not available
