934022 - Gravely GEM Lawn Tractor, 16hp Briggs & Stratton, Hydro Drive (SN: 000101 & Above) HOOD AND GRILLE Parts Diagram

GEM Lawn Tractor, 16hp Briggs & Stratton, Hydro Drive

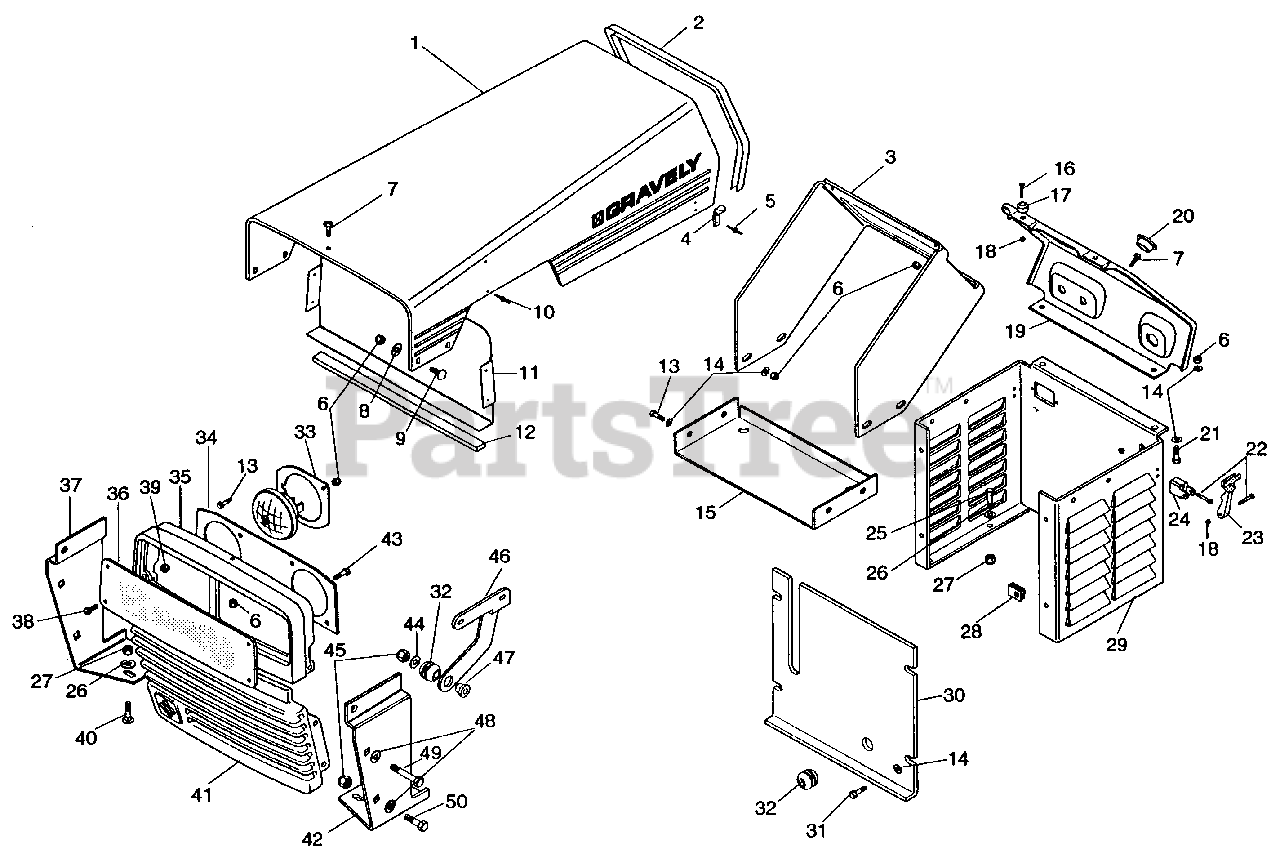

HOOD AND GRILLE Parts Diagram

  • Title

1

Gravely 051163

Hood Silkscreen 16 HP Gem
(Superseded to 03495200)

$

$

Not available

2

Gravely 046424

Strip, Cowl
(Superseded to 00922700)

$5.99

$

Usually ships in 4-12 days

0

3

Gravely 047651

Bracket, Support
(Superseded to 03492900)

$

$

Not available

4

Gravely 050505

Keeper
(Superseded to 03494500)

$3.49

$

Usually ships in 4-12 days

0

5

Gravely 032661

Rvt .125 x .245
(Superseded to 06807500)

$

$

Not available

6

Gravely 419454

Nut-Lk-Nyl .250-20 Pl
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

7

Gravely 160541

Scr-Mch .25-20 Pan Hd
(Superseded to 06113500)

$1.99

$

In Stock, only 3 left!

0

8

Gravely 422845

Wshr-Flat .281 x .625 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

9

Gravely 120518

Blt-Rdhdsqnk .25-20 x .75
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 011884

Rvt-Pop .125 x .232
(Superseded to 06807300)

$

$

Not available

11

Gravely 051410

Baffle
(Superseded to 03495400)

$

$

Not available

12

Gravely 051532

Pad, Baffle
(Superseded to 03496200)

$

$

Not available

13

Gravely 180022

Blt-Hex .25-20 x 1.00 Pl Gr 5
(Superseded to 05901639)

$1.49

$

In Stock, Qty 7

0

14

Gravely 120392

Wshr-Fl-Stl .281 x .625 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

15

Gravely 047648

Battery Support
(Superseded to 03492000)

$

$

Not available

16

Gravely 159341

Scr-Mch 6-32 x .625
(Superseded to 06110700)

$1.99

$

Usually ships in 4-12 days

0

17

Gravely 018183

Bumper
(Superseded to 07017400)

$

$

Not available

18

Gravely 427254

Nut-Lk-Mch 6-32 w/insert
(Superseded to 06538900)

$0.99

$

Usually ships in 4-12 days

0

19

Gravely 051534

Dash Silkscreen 16 HP
(Superseded to 03495100)

$

$

Not available

20

Gravely 010174

Bshg-Flg .762 x 1.0 x .580 x 1.48 Ny
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

21

Gravely 180018

Blt-Hex .25-20 x .63
(Superseded to 05932000)

$1.99

$

In Stock, only 1 left!

0

22

Gravely 159358

Scr-Mch 6-32 x 1.00
(Superseded to 06110800)

$

$

Not available

23

Gravely 050504

Latch, Flexible Draw
(Superseded to 07519700)

$

$

Not available

24

Gravely 047675

Block, Tie Down
(Superseded to 07519600)

$

$

Not available

25

Gravely 180079

Blt-Hex .31-18 x 1.00 Pl Gr 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 8

0

26

Gravely 120393

Wshr-Fl-Stl .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 9

0

27

Gravely 419455

Nut-Lk-Nyl .312-18 Pl
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

28

Gravely 032369

Nut-Rtnr .25-20 x .56
(Superseded to 07009000)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 050671

Dash Tower - Silkscreen
(Superseded to 03492200)

$

$

Not available

30

Gravely 047669

Cover, Hydraulic Tank
(Superseded to 03494400)

$38.99

$

Usually ships in 4-12 days

0

31

Gravely 180020

Blt-Hex .25-20 x .75 Pl Gr 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

32

Gravely 035518

Grommet
(Superseded to 07504200)

$5.99

$

Usually ships in 4-12 days

0

33

Gravely 039070

Head Light Retainer Ring
(Superseded to 03115900)

$

$

Not available

34

Gravely 038672

Panel, Headlight Reflector
(Superseded to 03067000)

$28.99

$

Usually ships in 4-12 days

0

35

Gravely 038673

Bezel, Headlight
(Superseded to 03066800)

$

$

Not available

36

Gravely 038671

Panel, Headlight Lens
(Superseded to 03066900)

$78.99

$

Usually ships in 4-12 days

0

37

Gravely 051540

Bracket
(Superseded to 03495500)

$

$

Not available

38

Gravely 159947

Scr-Mch 10-24 x .750 Phd
(Superseded to 06111200)

$2.49

$

Usually ships in 4-12 days

0

39

Gravely 190254

Nut-Lk 10-24 Ny Pl
(Superseded to 06500915)

$0.99

$

In Stock, only 4 left!

0

40

Gravely 126358

Blt-Carriage .31-18 x 1.0
(Superseded to 06200231)

$1.49

$

In Stock, Qty 13

0

41

Gravely 039831

Grill
(Superseded to 03493700)

$

$

Not available

42

Gravely 047610

Bracket LH
(Superseded to 03495700)

$

$

Not available

43

Gravely 045207

Scr-Tap .25-20 x .50 Hxslhdpl
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

44

Gravely 120388

Wshr-Fl-Stl .438 x 1.000 x .083
(Superseded to 06401008)

$1.49

$

Usually ships in 4-12 days

0

45

Gravely 456004

Nut-Lk-Nyl .375-16 Pl
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

46

Gravely 039047

L.H. Hood Hinge
(Superseded to 03118600)

$

$

Not available

46

Gravely 039049

R.H. Hood Hinge
(Superseded to 03118500)

$5.99

$

Usually ships in 4-12 days

0

47

Gravely 036849

Spacer
(Superseded to 03114500)

$9.99

$

In Stock, only 4 left!

0

48

Gravely 120394

Wshr-Fl-Stl .406 x .812 x .065 Pl
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

49

Gravely 180130

Blt-Hex .38-16 x 2.00 Pl Gr 5
(Superseded to 05901718)

$2.99

$

In Stock, Qty 10

0

50

Gravely 180124

Blt-Hex .38-16 x 1.25 Pl Gr 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 8

0
