934022 - Gravely GEM Lawn Tractor, 16hp Briggs & Stratton, Hydro Drive (SN: 000101 & Above) HYDROSTATIC DRIVE Parts Diagram

GEM Lawn Tractor, 16hp Briggs & Stratton, Hydro Drive

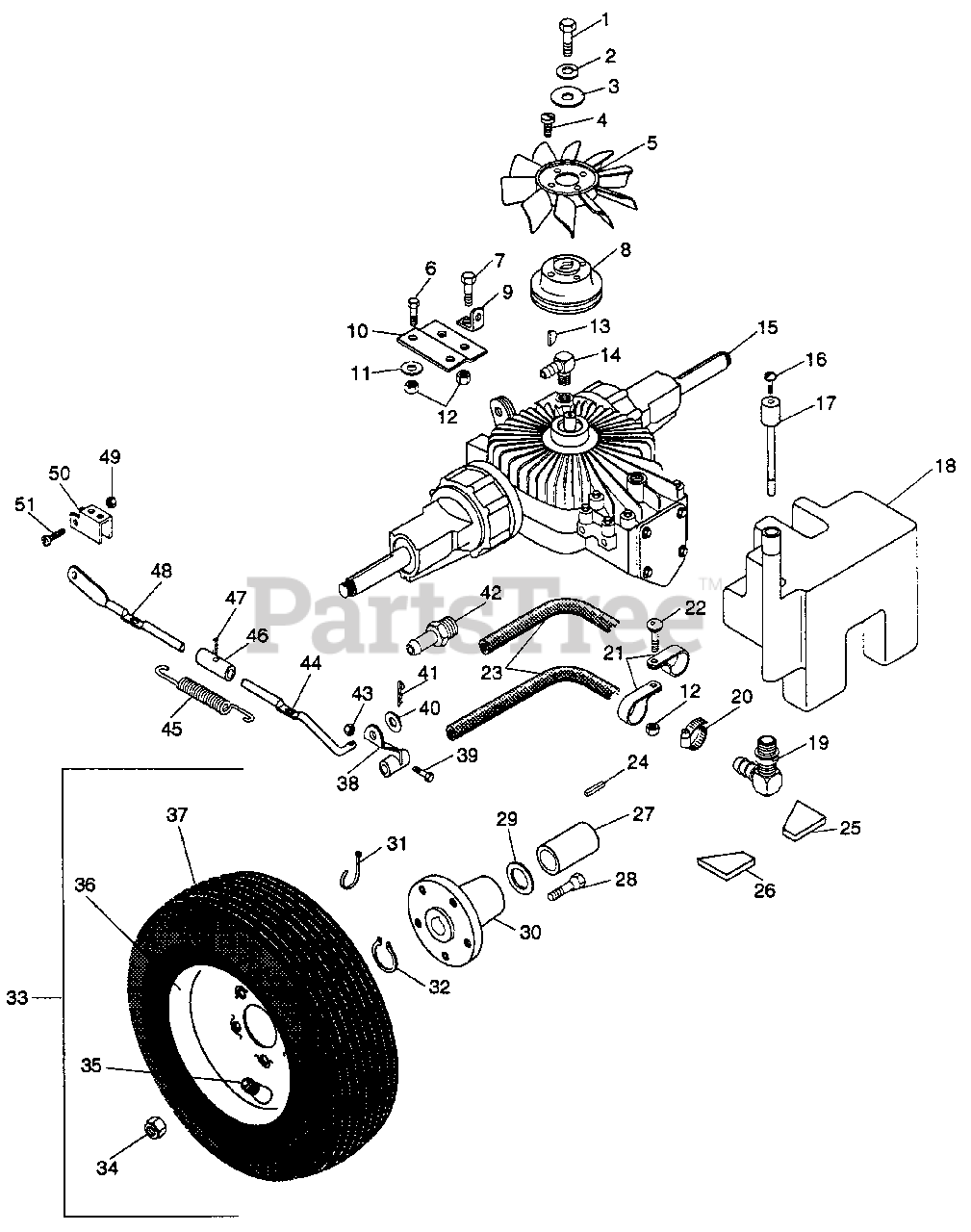

HYDROSTATIC DRIVE Parts Diagram

  • Title

1

Gravely 180020

Blt-Hex .25-20 x .75 Pl Gr 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

2

Gravely 120380

Wshr-Lock .250 Reg.
(Superseded to 06401009)

$0.99

$

In Stock, Qty 16

0

3

Gravely 050326

Wshr-Fl-Stl .281 x 1.5 x .120
(Superseded to 06425400)

$

$

Not available

4

Gravely 159920

Scr-Mch 10-24 x .50 Phd
(Superseded to 06113000)

$1.99

$

In Stock, Qty 5

0

5

Gravely 045321

Fan
(Superseded to 03570000)

$35.99

$

In Stock, only 2 left!

0

6

Gravely 180121

Blt-Hex .380-16 x .875
(Superseded to 05932600)

$2.49

$

In Stock, only 1 left!

0

7

Gravely 189304

Blt-Hex .38-16 x 3.25 Pl Gr 5
(Superseded to 05901817)

$3.99

$

In Stock, only 1 left!

0

8

Gravely 050190

Transaxle Sheave
(Superseded to 03488700)

$

$

Not available

9

Gravely 050211

Spring Anchor
(Superseded to 03458100)

$

$

Not available

10

Gravely 050210

Bracket
(Superseded to 03447500)

$22.99

$

Usually ships in 4-12 days

0

11

Gravely 446470

Washer, Flt .375 x 1.125 x .065
(Superseded to 06401139)

$2.49

$

In Stock, only 4 left!

0

12

Gravely 456004

Nut-Lk-Nyl .375-16 Pl
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

13

Gravely 431787

Key, Wdrf 3/16 x 5/8 Hrd #61
(Superseded to 06609300)

$2.99

$

In Stock, only 2 left!

0

14

Gravely 050192

Fitting
(Superseded to 03450600)

$32.99

$

Usually ships in 4-12 days

0

15

Gravely 051626

Transaxle
(Superseded to 03488400)

$

$

Not available

16

Gravely 051006

Scrw-Vent Sl 8-32 x .250
(Superseded to 07010700)

$

$

Not available

17

Gravely 050195

Dipstick
(Superseded to 03449800)

$

$

Not available

18

Gravely 047635

Tank, Hydraulic
(Superseded to 03494600)

$164.99

$

Usually ships in 4-12 days

0

19

Gravely 049678

Ftg .88-14 x .63
(Superseded to 07022700)

$

$

Not available

20

Gravely 021247

Hose Clamp
(Superseded to 06923500)

$1.99

$

Usually ships in 4-12 days

0

21

Gravely 050395

Clamp, Steel 1.0
(Superseded to 06917900)

$14.99

$

Usually ships in 4-12 days

0

22

Gravely 120915

Blt-Rdhdsqnk .38-16 x 1.0 Pl

$

$

Not available

23

Gravely 046379

Hose
(Superseded to 00915100)

$3.49

$

In Stock, Qty 20+

0

24

Gravely 050199

Key-Str .25 x 2.0 x .25
(Superseded to 06602100)

$4.99

$

Usually ships in 4-12 days

0

25

Gravely 050581

Pad, Tank LH
(Superseded to 03497800)

$

$

Not available

26

Gravely 050582

Pad, Tank RH
(Superseded to 03497900)

$

$

Not available

27

Gravely 050200

Spacer
(Superseded to 03447600)

$

$

Not available

28

Gravely 050201

Blt-Lug Sernkhdnd .44-20 x 1.188
(Superseded to 07008300)

$

$

Not available

29

Gravely 017959

Wshr-Thrst 1.55 x 1.002 x .093
(Superseded to 06426500)

$18.99

$

In Stock, only 2 left!

0

30

Gravely 050202

Wheel Hub
(Superseded to 03438600)

$176.99

$

Usually ships in 4-12 days

0

31

Gravely 050372

Clamp, Universal
(Superseded to 07519100)

$

$

Not available

32

Gravely 050203

Rg-Rtng-Ext 1.00 x .078
(Superseded to 05707300)

$2.99

$

In Stock, only 2 left!

0

33

Gravely 048537

T/Whl Assy 23 x 8.50-12
(Superseded to 20928000)

$

$

Not available

34

Gravely 039687

Nut-Lug .437-20 Pl
(Superseded to 06511400)

$3.99

$

Usually ships in 4-12 days

0

35

Gravely 011191

Valve Stern Ass'y
(Superseded to 07520000)

$2.49

$

In Stock, Qty 7

0

36

Gravely 048922

Wldmt, Rim
(Superseded to 20928200)

$142.99

$

Usually ships in 4-12 days

0

37

Gravely 048920

Tire, Rear 23 x 8.50 - 12
(Superseded to 20928000)

$

$

Not available

38

Gravely 050206

Arm-Dump Valve
(Superseded to 03453900)

$

$

Not available

39

Gravely 180022

Blt-Hex .25-20 x 1.00 Pl Gr 5
(Superseded to 05901639)

$1.49

$

In Stock, Qty 7

0

40

Gravely 120394

Wshr-Fl-Stl .406 x .812 x .065 Pl
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

41

Gravely 121222

Pin-Cotr .09 x .75 Pl
(Superseded to 06706900)

$0.99

$

In Stock, Qty 5

0

42

Gravely 045226

Ftg-Adptr 88-14
(Superseded to 07020300)

$6.99

$

Usually ships in 4-12 days

0

43

Gravely 419454

Nut-Lk-Nyl .250-20 Pl
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

44

Gravely 050205

Pin
(Superseded to 03455400)

$

$

Not available

45

Gravely 050204

Sg-Tens .090 x .96 x 4.0 Wld 23
(Superseded to 08325300)

$

$

Not available

46

Gravely 050207

Collar
(Superseded to 03456000)

$

$

Not available

47

Gravely 418634

Pin, Roll .125 x .625
(Superseded to 05808700)

$

$

Not available

48

Gravely 050208

Rod
(Superseded to 03453700)

$

$

Not available

49

Gravely 190254

Nut-Lk 10-24 Ny Pl
(Superseded to 06500915)

$0.99

$

In Stock, only 3 left!

0

50

Gravely 050209

Hour Meter
(Superseded to 03429700)

$

$

Not available

51

Gravely 159957

Scr-Mch 10-24 x 1.00 Phcr
(Superseded to 05901838)

$1.99

$

Usually ships in 4-12 days

0
