934022 - Gravely GEM Lawn Tractor, 16hp Briggs & Stratton, Hydro Drive (SN: 000101 & Above) SEAT AND REAR DECK Parts Diagram

GEM Lawn Tractor, 16hp Briggs & Stratton, Hydro Drive

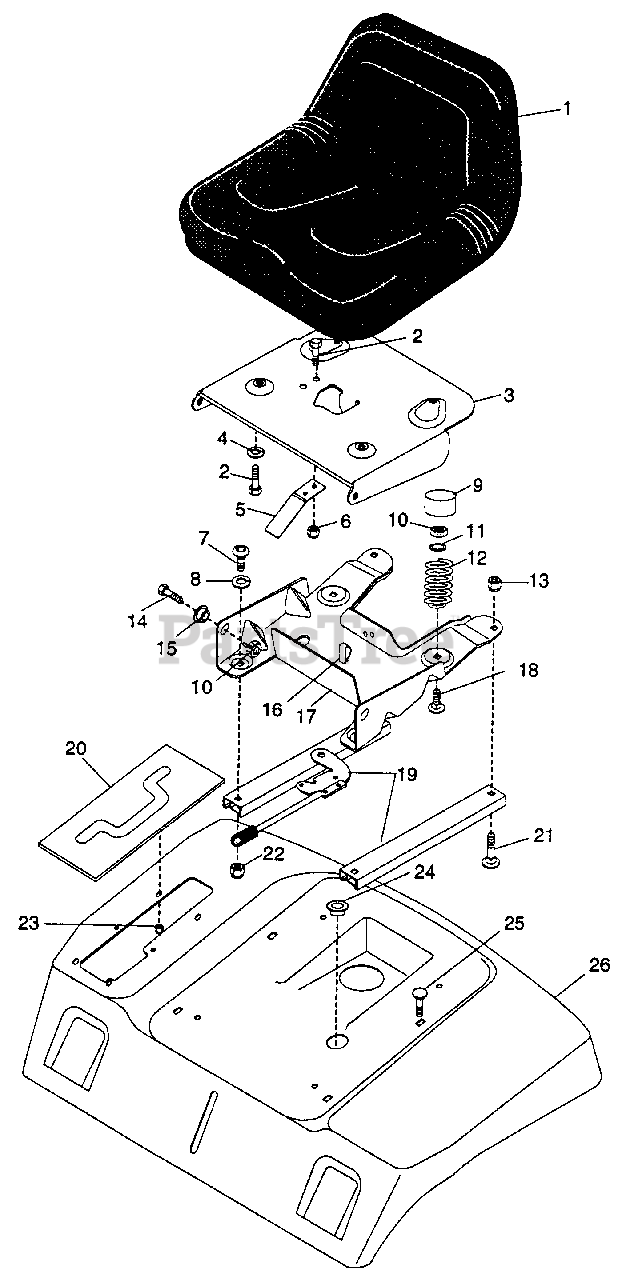

SEAT AND REAR DECK Parts Diagram

  • Title

1

Gravely 048918

Seat, High Back
(Superseded to 59100200)

$

$

Not available

2

Gravely 05902200

Blt-Hex .31-18 x .75 Pl Gr 2
(Superseded to 05947000)

$1.49

$

In Stock, Qty 12

0

3

Gravely 03619151

Seat Pivot Plate
(Superseded to 03619100)

$

$

Not available

4

Gravely 06300300

Wshr-Lock .312 10 Heavy Pl
(Superseded to 06307400)

$0.99

$

In Stock, only 4 left!

0

5

Gravely 03616700

Spring Plate

$

$

Not available

6

Gravely 06507800

Nut-Fig .312-18 Pl
(Superseded to 06530400)

$1.49

$

In Stock, only 4 left!

0

7

Gravely 07008100

Scr-Cap Bthd .31-18 x .50

$2.49

$

Usually ships in 4-12 days

0

8

Gravely 06303200

Wshr-Lock Ext .313 x .030 Pl

$2.49

$

Usually ships in 4-12 days

0

9

Gravely 07521600

Tube Cap

$1.49

$

Usually ships in 4-12 days

0

10

Gravely 06504200

Nut-Lk .312-18 Gr A Pl
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06412300

Wshr-Fl-Stl .34 x .68 x .065 Pl
(Superseded to 06437200)

$0.99

$

In Stock, Qty 9

0

12

Gravely 08328900

Sp-Comp .148 x 1.23 x 2.41 Wld 87
(Superseded to 08328200)

$15.99

$

In Stock, only 2 left!

0

13

Gravely 06506200

Nut-Lk-Nyl .312-18 Pl
(Superseded to 06530200)

$0.99

$

Usually ships in 4-12 days

0

14

Gravely 05913500

Blt-Hex .31-18 x .75 Pl Gr 5
(Superseded to 05947000)

$1.49

$

In Stock, Qty 12

0

15

Gravely 05516200

Bshg Flange .325 x .685 x .465

$17.99

$

Usually ships in 4-12 days

0

16

Gravely 07510700

Wire Clip

$

$

Not available

17

Gravely 03618100

Seat Box

$

$

Not available

18

Gravely 06204100

Blt-Carr .312-18 x .75
(Superseded to 06220800)

$2.49

$

In Stock, Qty 9

0

19

Gravely 03600800

Seat Slides Rame Tak 3010-4

$104.99

$

Usually ships in 4-12 days

0

20

Gravely 03450000

Insert

$

$

Not available

21

Gravely 06203100

Blt-Rdhd Sqnk .31-18 x 1.0 Sht Pl
(Superseded to 06200237)

$2.49

$

In Stock, only 3 left!

0

22

Gravely 06501500

Nut-Hex .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 16

0

23

Gravely 07008000

Nut-Self-Thdng Fits .25 Stud Pl

$2.99

$

In Stock, only 1 left!

0

24

Gravely 07521000

Snap Bushing

$3.49

$

Usually ships in 4-12 days

0

25

Gravely 06203300

Blt-Rdgdsqnk .312-18 x .62 Sht Pl
(Superseded to 06212200)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 03498753

Rear Deck F/Tl

$

$

Not available
