934023 (HT 1848) - Ariens High Sierra 48" Garden Tractor, 18hp Briggs & Stratton, Hydro (SN: 000101 & Above) Attachment Lift Parts Diagram

High Sierra 48" Garden Tractor, 18hp Briggs & Stratton, Hydro

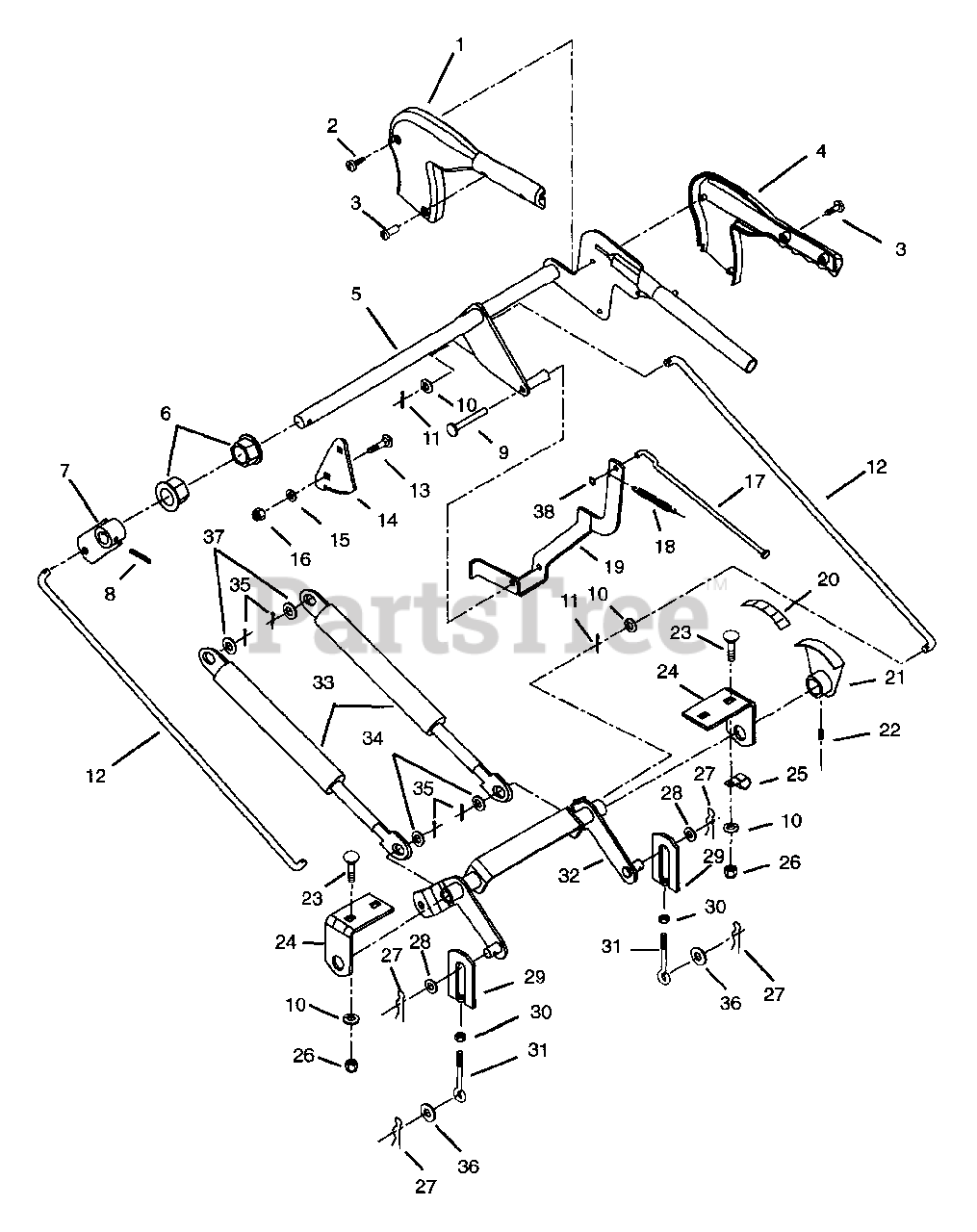

Attachment Lift Parts Diagram

  • Title

1

Ariens 03653400

COVER - LIFT RH
(Superseded to 03665500)

$91.99

$

Usually ships in 4-12 days

0

2

Ariens 07412600

SCR-TAP 10-16X1.125HI-LOTPHBL

$3.49

$

Usually ships in 4-12 days

0

3

Ariens 07030500

POST & SCREW-RAPID ASSY .375
(Superseded to 53604300)

$

$

Not available

4

Ariens 03653500

COVER - LIFT LH
(Superseded to 03665600)

$91.99

$

Usually ships in 4-12 days

0

5

Ariens 03357800

LEVER, LIFT
(Superseded to 03348300)

$

$

Not available

6

Ariens 05521600

BSHG-FLG .750X.873HEXX.53X1.18

$9.49

$

In Stock, Qty 20+

0

7

Ariens 03339000

ARM, LIFT
(Superseded to 03339051)

$

$

Not available

8

Ariens 05804000

PIN-GRV .250X1.25 TP A

$

$

Not available

9

Ariens 03653800

PIN, PIVOT .312 X 2.56

$

$

Not available

10

Ariens 06302100

WSHR-LK .375X.094 MED PL
(Superseded to 06308800)

$0.99

$

In Stock, Qty 18

0

11

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 12

0

12

Ariens 03352700

LINK, LIFT

$

$

Not available

13

Ariens 06216600

BLT-RDHDSQNK .31-18X.75
(Superseded to 06215700)

$2.49

$

In Stock, Qty 8

0

14

Ariens 03338900

QUADRANT, LIFT
(Superseded to 53406100)

$59.99

$

Usually ships in 4-12 days

0

15

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

$1.49

$

In Stock, only 2 left!

0

16

Ariens 06506200

NUT-LK-NYL.312-18 PL
(Superseded to 06530200)

$0.99

$

Usually ships in 4-12 days

0

17

Ariens 03654000

PIN - LIFT
(Superseded to 03675000)

$

$

Not available

18

Ariens 08330300

SG-TENS .048X.44X2.25 WLD 9

$

$

Not available

19

Ariens 03654100

LEVER - DETENT
(Superseded to 03683051)

$60.99

$

Usually ships in 4-12 days

0

20

Ariens 07719000

DECAL - INDICATOR

$

$

Not available

21

Ariens 03654900

INDICATOR - DECK HEIGHT

$5.99

$

Usually ships in 4-12 days

0

22

Ariens 06000500

SCR-SET .25-20X.25 SKHCUP OH

$2.49

$

In Stock, only 1 left!

0

23

Ariens 06201000

BLT-RDHDSQNK .38-16X.75 SHT PL
(Superseded to 06200336)

$2.99

$

In Stock, Qty 20+

0

24

Ariens 03351900

BRACKET, CENTER LIFT

$

$

Not available

25

Ariens 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

26

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, only 1 left!

0

27

Ariens 06703700

PIN-HAIR EXT .12X.31X2.37 PL
(Superseded to 06711900)

$2.99

$

In Stock, only 3 left!

0

28

Ariens 06403900

WSHR-FL-STL .630X1.005X.062 PL
(Superseded to 06436100)

$0.99

$

In Stock, Qty 20+

0

29

Ariens 03486400

LINK, ADJUSTMENT

$43.99

$

In Stock, only 2 left!

0

30

Ariens 06500100

NUT-JAM .375-16 PL
(Superseded to 06500910)

$0.99

$

In Stock, Qty 9

0

31

Ariens 07028000

EYE BOLT - .375-16 X 3.00 ZC

$

$

Not available

32

Ariens 03352900

LEVER, CENTER LIFT

$

$

Not available

33

Ariens 03459800

SG- GAS COMP .31X.75X10.00

$

$

Not available

34

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 14

0

35

Ariens 06702400

PIN-COTR .12X.75 PL
(Superseded to 06707300)

$0.99

$

In Stock, Qty 9

0

36

Ariens 06400400

WSHR-FL-STL.656X1.312X.095 PL
(Superseded to 06442800)

$2.49

$

In Stock, Qty 20+

0

37

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

38

Ariens 05717600

RG-RTNG-EXT .250X.010

$0.99

$

In Stock, Qty 17

0
