934023 (HT 1848) - Ariens High Sierra 48" Garden Tractor, 18hp Briggs & Stratton, Hydro (SN: 000101 & Above) Engine & Drive Belt Parts Diagram

High Sierra 48" Garden Tractor, 18hp Briggs & Stratton, Hydro

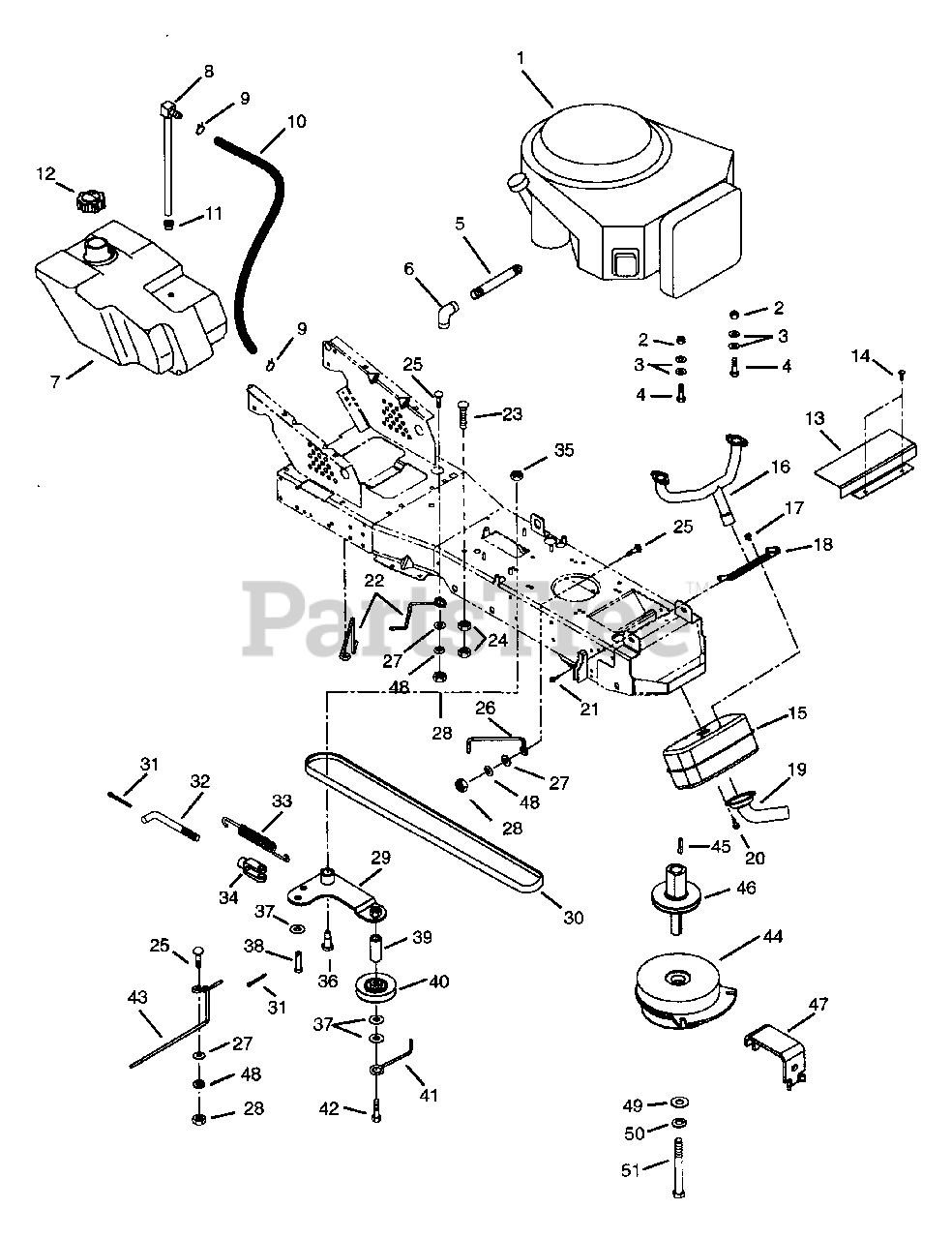

Engine & Drive Belt Parts Diagram

  • Title

1

Ariens 08235300

18 HP B&S V-TWIN UT

$

$

Not available

2

Ariens 06512400

NUT-LK-TOP .312-18 GR C PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 06409000

WSHR-FL-STL .328X.875X.062 PL
(Superseded to 06439400)

$3.99

$

Usually ships in 4-12 days

0

4

Ariens 05914000

BLT-HEX .31-18X1.50 PL GR5
(Superseded to 05952400)

$1.49

$

Usually ships in 4-12 days

0

5

Ariens 03475800

NIPPLE
(Superseded to 07000830)

$17.99

$

Usually ships in 4-12 days

0

6

Ariens 07023500

ELBOW .375-18 NPTF

$

$

Not available

7

Ariens 03627500

FUEL TANK

$

$

Not available

8

Ariens 03606500

TANK FITTING

$30.99

$

In Stock, only 1 left!

0

9

Ariens 02917200

CLAMP-HOSE WIR.490/.510X.092#8
(Superseded to 06939100)

$3.99

$

In Stock, Qty 20+

0

10

Ariens 03659400

HOSE- FUEL LINE 48.00"

$13.99

$

Usually ships in 4-12 days

0

11

Ariens 07511400

BSHG-FLG .375 X 1.062 X .625 R

$3.49

$

In Stock, Qty 20+

0

12

Ariens 03601900

FUEL CAP
(Superseded to 01538400)

$14.99

$

In Stock, Qty 14

0

13

Ariens 03358300

SHIELD - HEAT

$

$

Not available

14

Ariens 07409900

SCR-TAP .312-18X.50 PL F

$

$

Not available

15

Ariens 03654300

MUFFLER - EXHAUST

$157.99

$

In Stock, only 2 left!

0

16

Ariens 03648700

PIPE - EXHAUST TWIN B&S

$

$

Not available

17

Ariens 07404500

SCR-TAP 12-24X.50 HWH PL TR
(Superseded to 07411900)

$2.49

$

In Stock, Qty 12

0

18

Ariens 03648600

BRACKET - MUFFLER

$

$

Not available

19

Ariens 03656300

DEFLECTOR - EXHAUST

$57.99

$

Usually ships in 4-12 days

0

20

Ariens 07403400

SCR-TAP 8-32X.38 SL HWH PL 23
(Superseded to 07414500)

$2.49

$

Usually ships in 4-12 days

0

21

Ariens 07401400

SCR-TAP .312-18X.50 HWH PL TR
(Superseded to 07411500)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 03355900

BELT FINGER

$

$

Not available

23

Ariens 06204800

BLT-RDHDSQNK .31-18X1.25 SHTPL
(Superseded to 06212100)

$1.49

$

In Stock, Qty 9

0

24

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 06204100

BLT-RDHDSQNK.31-18X.75GR5SHTPL
(Superseded to 06220800)

$2.49

$

In Stock, Qty 9

0

26

Ariens 03356000

BELT FINGER

$5.99

$

Usually ships in 4-12 days

0

27

Ariens 06412300

WSHR-FL-STL.344X.688X.065PL
(Superseded to 06437200)

$0.99

$

In Stock, Qty 9

0

28

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 16

0

29

Ariens 03631200

IDLER PIVOT ARM

$61.99

$

Usually ships in 4-12 days

0

30

Ariens 07227200

V-BELT, 3L-RAW EDGE

$54.99

$

Usually ships in 4-12 days

0

31

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 5

0

32

Ariens 03647800

LINK

$

$

Not available

33

Ariens 08329200

SG-TENS .091X.56X5.07 WLD 30

$20.99

$

Usually ships in 4-12 days

0

34

Ariens 07014700

YOKE, .312-24 X 2.25

$14.99

$

In Stock, only 1 left!

0

35

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

36

Ariens 07023400

BLT-SHLDR .38-16X1.25

$34.99

$

In Stock, only 1 left!

0

37

Ariens 06414500

WSHR-FL-STL .390X.750X.125 PL
(Superseded to 06444300)

$7.99

$

In Stock, Qty 9

0

38

Ariens 06811800

PIN-CLEV .312X.822 HDND PL
(Superseded to 06814000)

$3.99

$

In Stock, only 1 left!

0

39

Ariens 03353800

TUBE .380 X .625 X 1.360

$

$

Not available

40

Ariens 07309200

IDLER-V 3X.38

$37.99

$

In Stock, only 1 left!

0

41

Ariens 03648300

FINGER - BELT

$21.99

$

In Stock, Qty 6

0

42

Ariens 05902700

BLT-HEX .38-16X1.75 PL GR2
(Superseded to 05958500)

$1.49

$

In Stock, only 4 left!

0

43

Ariens 03355800

BELT FINGER - CENTER

$

$

Not available

44

Ariens 03357900

CLUTCH, ELECTRIC - WARNER

$491.99

$

Usually ships in 4-12 days

0

45

Ariens 06603400

KEY-SQ .25 X 1.25 X .25 SAE

$3.99

$

In Stock, only 1 left!

0

46

Ariens 03353500

SHAFT, SHEAVE EXT.

$

$

Not available

47

Ariens 03357500

ANCHOR- CLUTCH

$58.99

$

In Stock, only 1 left!

0

48

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, only 4 left!

0

49

Ariens 06423200

WSHR-FL-STL .463X1.375X.250 PL
(Superseded to 06443500)

$6.99

$

In Stock, only 1 left!

0

50

Ariens 06300500

WSHR-LK .438X.133 HVY
(Superseded to 06310700)

$2.99

$

Usually ships in 4-12 days

0

51

Ariens 05927600

BLT-HEX .44-20X5.50 PL GR5
(Superseded to 05969000)

$7.99

$

In Stock, only 1 left!

0
