934025 (HT 1848) - Ariens High Sierra 48" Garden Tractor, 18hp Briggs & Stratton, Hydro (SN: 000101 & Above) Attachment Lift Parts Diagram

High Sierra 48" Garden Tractor, 18hp Briggs & Stratton, Hydro

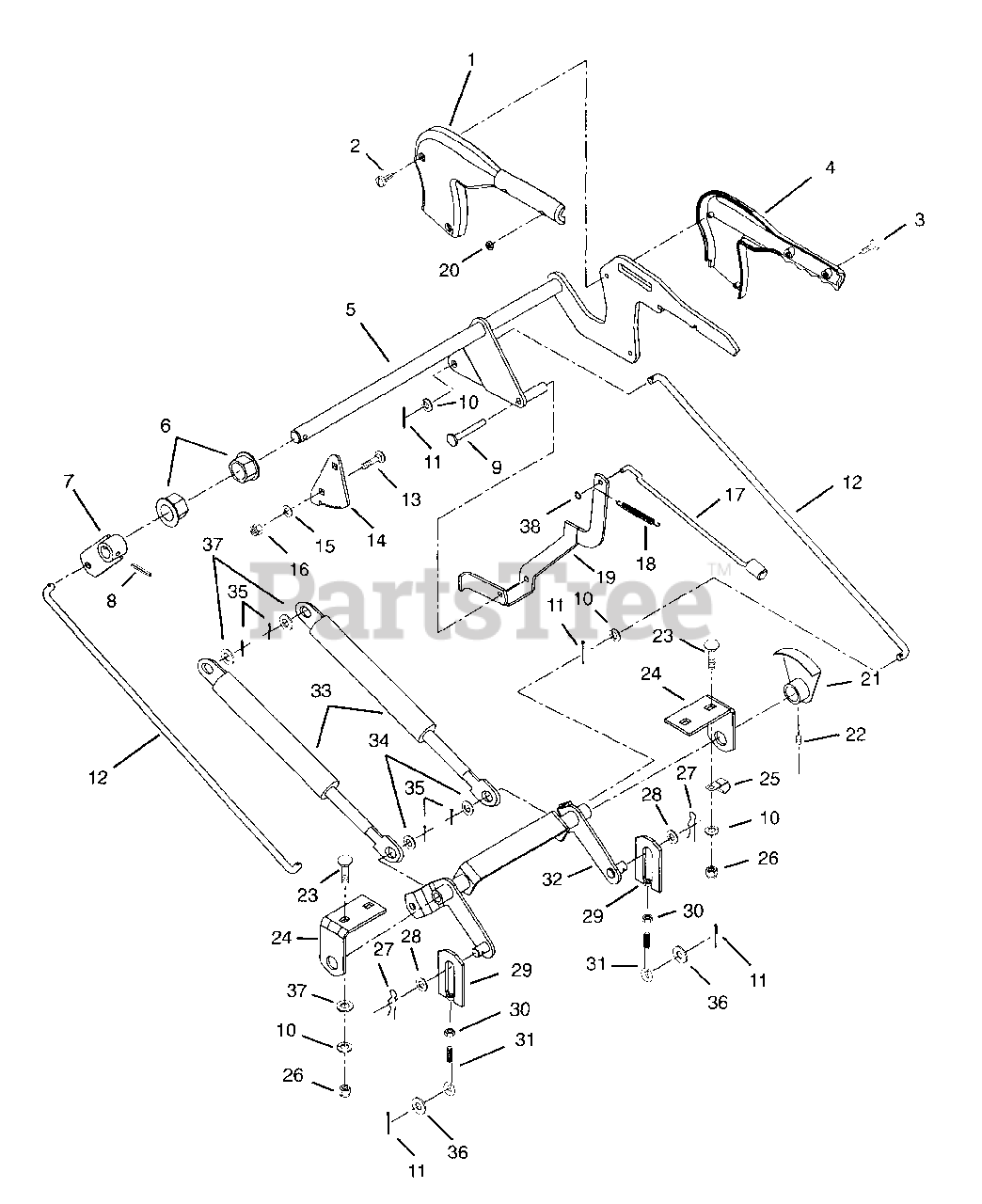

Attachment Lift Parts Diagram

  • Title

1

Ariens 03665500

COVER - LIFT RH

$91.99

$

Usually ships in 4-12 days

0

2

Ariens 07412600

SCR-TAP 10-16X1.125HI-LOTPHBL

$3.49

$

Usually ships in 4-12 days

0

3

Ariens 06116900

@SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

Usually ships in 4-12 days

0

4

Ariens 03665600

COVER - LIFT LH

$91.99

$

Usually ships in 4-12 days

0

5

Ariens 03348300

LEVER - LIFT

$

$

Not available

6

Ariens 05521600

BSHG-FLG .750X.873HEXX.53X1.18

$9.49

$

In Stock, Qty 20+

0

7

Ariens 03339000

ARM, LIFT
(Superseded to 03339051)

$

$

Not available

8

Ariens 05804000

PIN-GRV .250X1.25 TP A

$

$

Not available

9

Ariens 03653800

PIN, PIVOT .312 X 2.56

$

$

Not available

10

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 18

0

11

Ariens 06707100

@PIN-CTR .12X1.00 EXTPRSQCT YZ

$0.99

$

In Stock, Qty 12

0

12

Ariens 03352700

LINK, LIFT

$

$

Not available

13

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, only 1 left!

0

14

Ariens 03360600

QUADRANT - LIFT

$37.99

$

Usually ships in 4-12 days

0

15

Ariens 06436700

WSHR-FL-STL .323X.625X.062 YWZ
(Superseded to 06401002)

$1.49

$

In Stock, only 2 left!

0

16

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 03666000

PIN - LIFT
(Superseded to 03675000)

$

$

Not available

18

Ariens 08330300

SG-TENS .048X.44X2.25 WLD 9

$

$

Not available

19

Ariens 03654100

LEVER - DETENT
(Superseded to 03683051)

$60.99

$

Usually ships in 4-12 days

0

20

Ariens 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, only 3 left!

0

21

Ariens 03654900

INDICATOR - DECK HEIGHT

$5.99

$

Usually ships in 4-12 days

0

22

Ariens 06000500

SCR-SET .25-20X.25 SKHCUP OH

$2.49

$

In Stock, only 1 left!

0

23

Ariens 06211800

BLT-RHHDSQSHNK .38-16X.75 G2YZ
(Superseded to 06200336)

$2.99

$

In Stock, Qty 20+

0

24

Ariens 03351900

BRACKET, CENTER LIFT

$

$

Not available

25

Ariens 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

26

Ariens 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

Usually ships in 4-12 days

0

27

Ariens 06711900

PIN-HAIR-EXT .12X.31X2.37 YWZC

$2.99

$

In Stock, only 3 left!

0

28

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

29

Ariens 03486400

LINK, ADJUSTMENT

$43.99

$

In Stock, only 2 left!

0

30

Ariens 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, Qty 8

0

31

Ariens 07028000

EYE BOLT - .375-16 X 3.00 ZC

$

$

Not available

32

Ariens 03352900

LEVER, CENTER LIFT

$

$

Not available

33

Ariens 08326100

SG-GAS COMP .315X.75X10.00 120

$

$

Not available

34

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, only 3 left!

0

35

Ariens 06707300

@PIN-CTR .12X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, Qty 9

0

36

Ariens 06442800

@WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

$2.49

$

In Stock, Qty 20+

0

37

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

38

Ariens 05717600

RG-RTNG-EXT .250X.010

$0.99

$

In Stock, Qty 16

0
