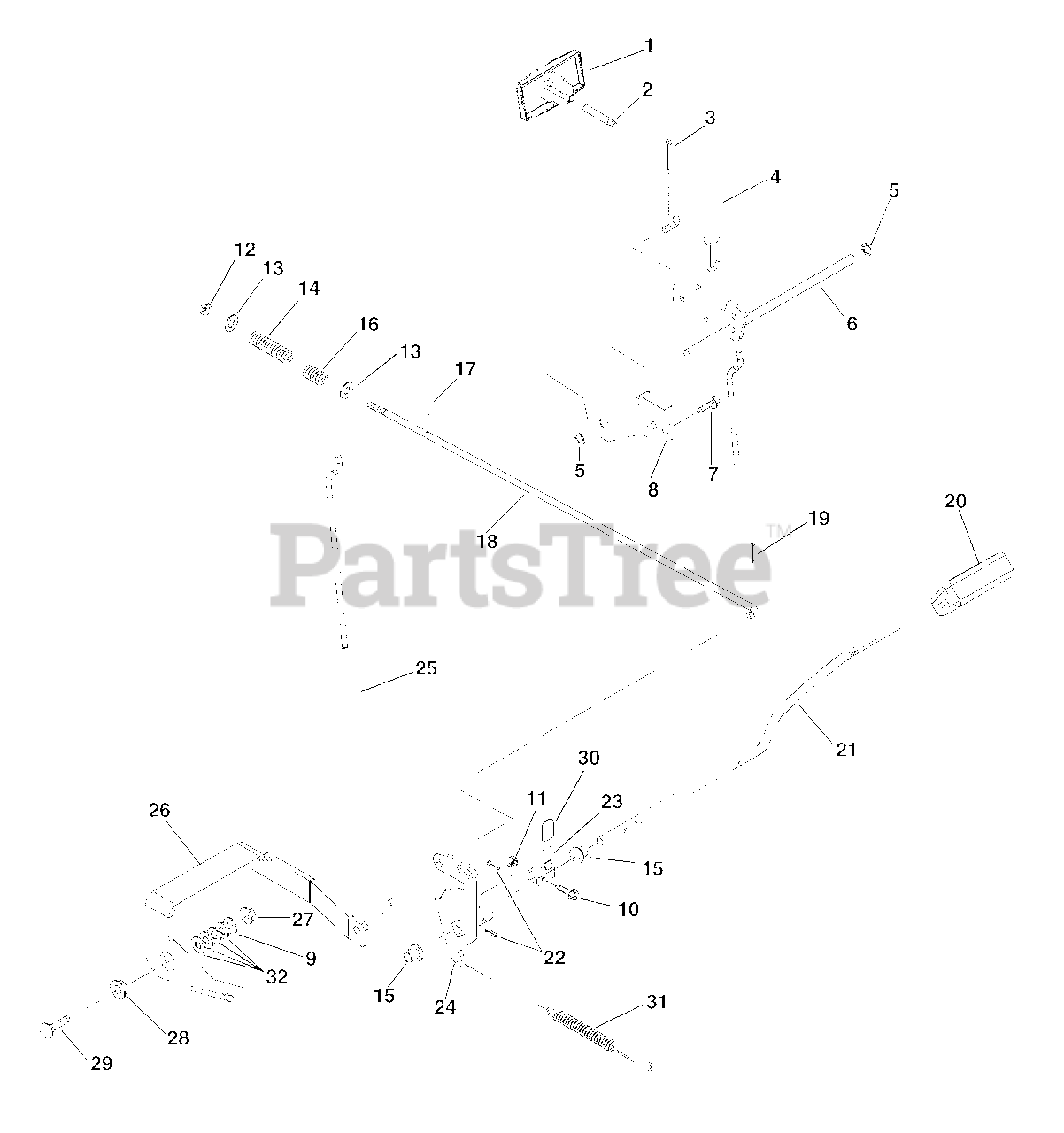

934026 (HT 1848) - Ariens High Sierra 48" Garden Tractor, 18hp Briggs & Stratton, Hydro (SN: 000101 & Above) Clutch And Brake Parts Diagram

High Sierra 48" Garden Tractor, 18hp Briggs & Stratton, Hydro

Clutch And Brake Parts Diagram

  • Title

1

Ariens 03652459

KNOB, PARK BRAKE

$

$

Not available

2

Ariens 03357400

ROD, PARKING BRAKE

$28.99

$

Usually ships in 4-12 days

0

3

Ariens 06700300

PIN-COTR .06X.50
(Superseded to 06712400)

$3.99

$

Usually ships in 4-12 days

0

4

Ariens 08325200

SG-TENS .051X.60X2.25 WLD 7.0

$5.99

$

Usually ships in 4-12 days

0

5

Ariens 05717600

RG-RTNG-EXT .250X.010

$0.99

$

In Stock, Qty 17

0

6

Ariens 03357351

BELLCRANK, PARKING BRAKE

$

$

Not available

7

Ariens 07413300

SCR-TAP 12-24X.50 HWH TR BLACK
(Superseded to 07411900)

$2.49

$

In Stock, Qty 12

0

8

Ariens 08828100

SWITCH,INTERLOCK

$20.99

$

Usually ships in 4-12 days

0

9

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 14

0

10

Ariens 06118500

@SCR-MCH 10-24X1.00 HWH YWZC
(Superseded to 05901838)

$1.99

$

Usually ships in 4-12 days

0

11

Ariens 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, only 4 left!

0

12

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 08328100

SG-COMP 2.00X.404

$

$

Not available

15

Ariens 05521100

BSHG-FLG .515X.750X.745X1.00NY

$2.49

$

In Stock, Qty 9

0

16

Ariens 08313000

SG-COMP .62X.68X1.75

$17.99

$

Usually ships in 4-12 days

0

17

Ariens 05803400

PIN-ROLL .125X.75

$0.99

$

In Stock, Qty 9

0

18

Ariens 03362700

ROD-BRAKE

$5.99

$

Usually ships in 4-12 days

0

19

Ariens 06706900

@PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, Qty 5

0

20

Ariens 07523600

COVER - PEDAL - BRAKE

$

$

Not available

21

Ariens 03651000

PEDAL - BRAKE

$

$

Not available

22

Ariens 05804500

PIN-GRV .188X1.25 TP A

$10.99

$

In Stock, Qty 7

0

23

Ariens 03650500

LEVER - BRAKE SWITCH

$

$

Not available

24

Ariens 03667800

ARM + HUB - BRAKE

$

$

Not available

25

Ariens 03357200

ROD, PARKING BRAKE

$

$

Not available

26

Ariens 03357100

LEVER, PARKING BRAKE

$18.99

$

Usually ships in 4-12 days

0

27

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, only 4 left!

0

28

Ariens 01305900

BSHG, FLG .325X.499X.26X.88

$2.49

$

In Stock, Qty 16

0

29

Ariens 06221800

BLT-RDHDSQNK .31-18X1.0 SHTYZ
(Superseded to 06200237)

$2.49

$

In Stock, only 3 left!

0

30

Ariens 07526700

GRIP .062 X .375 X 1.000 RE

$

$

Not available

31

Ariens 08333200

SG-TENS .105X.85X5.00 WLD 40

$14.99

$

In Stock, only 2 left!

0

32

Ariens 06416800

WSHR-PLASTIC .390X.875X.062
(Superseded to 06433600)

$0.99

$

In Stock, Qty 14

0
