934026 (HT 1848) - Ariens High Sierra 48" Garden Tractor, 18hp Briggs & Stratton, Hydro (SN: 000101 & Above) Mower Pan And Roller Parts Diagram

High Sierra 48" Garden Tractor, 18hp Briggs & Stratton, Hydro

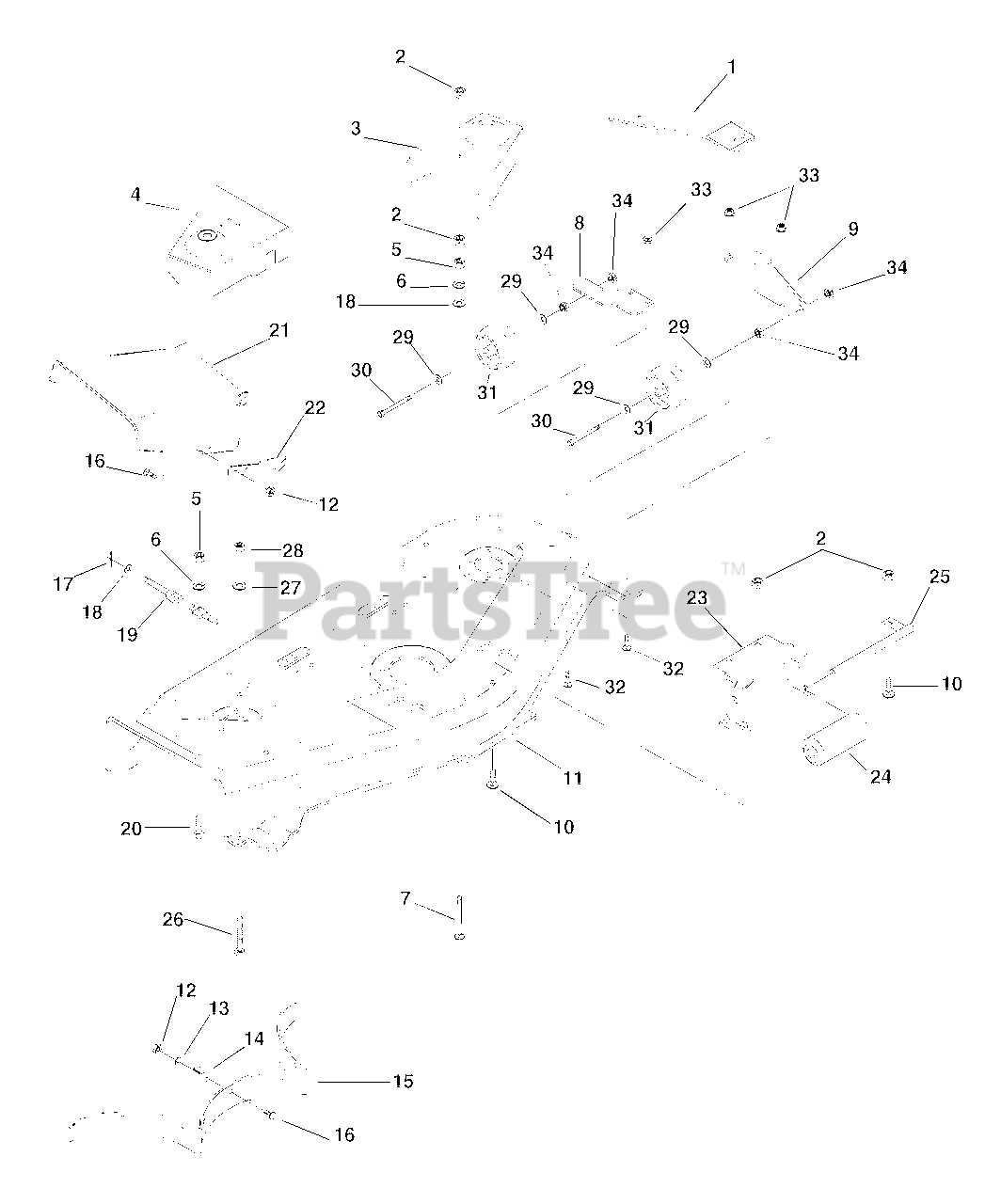

Mower Pan And Roller Parts Diagram

  • Title

1

Ariens 03038059

RAMP

$11.99

$

Usually ships in 4-12 days

0

2

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 03096259

COVER, RIGHT HAND
(Superseded to 03096200)

$125.99

$

Usually ships in 4-12 days

0

4

Ariens 03095959

COVER, LEFT HAND

$34.99

$

Usually ships in 4-12 days

0

5

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 16

0

6

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, only 4 left!

0

7

Ariens 06208700

BLT-RDHDSQNK .31-18X3.25 SHTPL
(Superseded to 06221300)

$5.99

$

In Stock, only 2 left!

0

8

Ariens 01534159

BRACKET, LEFT REAR

$

$

Not available

9

Ariens 01533859

BRACKET, LEFT FRONT
(Superseded to 01533851)

$39.99

$

Usually ships in 4-12 days

0

10

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 8

0

11

Ariens 53401700

MOWER PAN W/DECALS 48"- ORANGE

$

$

Not available

12

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

14

Ariens 03434351

BAFFLE TAB

$

$

Not available

15

Ariens 03434251

BAFFLE
(Superseded to 03434200)

$83.99

$

Usually ships in 4-12 days

0

16

Ariens 06214300

BLT-RDHDSQSHNK.25-20X.50 YWZC
(Superseded to 06200305)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 06706900

@PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, Qty 5

0

18

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 03405800

HINGE PIN

$46.99

$

Usually ships in 4-12 days

0

20

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0

21

Ariens 03034959

CHUTE EXTENSION
(Superseded to 53402500)

$114.99

$

Usually ships in 4-12 days

0

22

Ariens 00318559

FLAT SPRING - ORANGE
(Superseded to 01597751)

$20.99

$

Usually ships in 4-12 days

0

23

Ariens 03435159

BRACKET, ROLLER

$

$

Not available

24

Ariens 03114100

ROLLER

$22.99

$

Usually ships in 4-12 days

0

25

Ariens 03435200

ROLLER SHAFT

$51.99

$

Usually ships in 4-12 days

0

26

Ariens 05958400

@BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$3.99

$

In Stock, Qty 20+

0

27

Ariens 06306700

WSHR-LK .375X.130 YWZC

$3.99

$

In Stock, only 1 left!

0

28

Ariens 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

In Stock, only 1 left!

0

29

Ariens 06443300

WSHR-FL-NYL .518X1.000X.080

$0.99

$

In Stock, Qty 7

0

30

Ariens 05962300

@BLT-HEX .50-13X4.50 GR5 YWZC
(Superseded to 05901932)

$5.99

$

In Stock, Qty 12

0

31

Ariens 03471700

WHEEL 5 X 3
(Superseded to 03905600)

$15.99

$

In Stock, Qty 17

0

32

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 8

0

33

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, only 4 left!

0

34

Ariens 06536300

@NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0
