934026 (HT 1848) - Ariens High Sierra 48" Garden Tractor, 18hp Briggs & Stratton, Hydro (SN: 000101 & Above) Mower Spindle (Part 1) Parts Diagram

High Sierra 48" Garden Tractor, 18hp Briggs & Stratton, Hydro

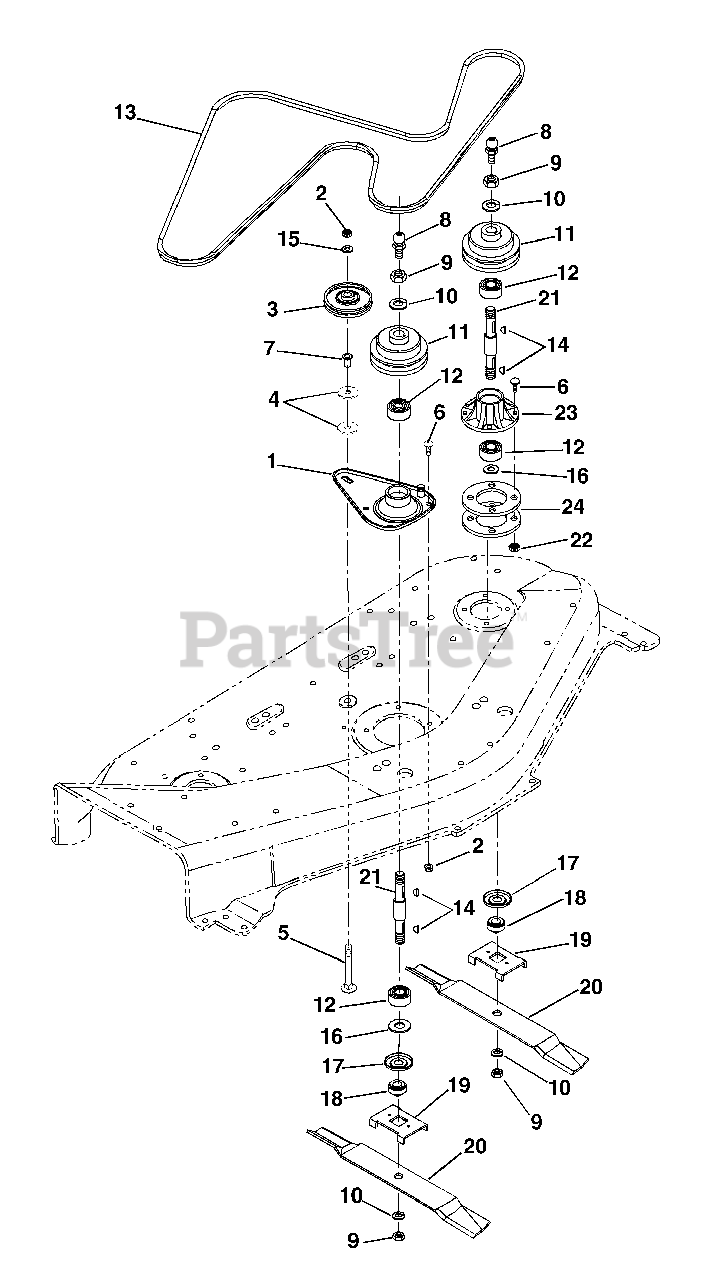

Mower Spindle (Part 1) Parts Diagram

  • Title

1

Ariens 03354651

HOUSING, SPINDLE
(Superseded to 03354600)

$64.73

$

Usually ships in 4-12 days

0

2

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 00542700

IDLER, PLASTIC, 4.00 X .50 ID

$38.99

$

In Stock, Qty 6

0

4

Ariens 06441700

WSHR-FL-STL .390X1.5X.125 YWZC

$3.99

$

In Stock, Qty 12

0

5

Ariens 06220500

@BLT-RDHDSQNK .38-16X2.00 G2YZ
(Superseded to 06224300)

$3.99

$

In Stock, Qty 9

0

6

Ariens 06219600

@BLT-RDHDSQNK .38-16X.75 G2YWZ
(Superseded to 06223900)

$1.99

$

In Stock, only 4 left!

0

7

Ariens 03114500

SPACER -FLANGED .390X.500X.781

$10.99

$

In Stock, only 2 left!

0

8

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

9

Ariens 06537700

NUT-JAM .75-10 YWZC

$2.99

$

In Stock, Qty 20+

0

10

Ariens 06310300

@WSHR-LK .75X.188 REG YWZC

$1.99

$

In Stock, Qty 16

0

11

Ariens 03401800

SHEAVE

$191.99

$

Usually ships in 4-12 days

0

12

Ariens 05412000

BRG-BALL .750X1.781X.61

$15.99

$

In Stock, Qty 15

0

13

Ariens 07227400

V-BELT, HA-RAW EDGE

$68.99

$

Usually ships in 4-12 days

0

14

Ariens 06601400

KEY-WDRF .188X.625X.25 SAE 61

$2.99

$

Usually ships in 4-12 days

0

15

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

16

Ariens 06444100

WSHR-FL-STL .754X1.000X.032 YZ

$2.99

$

In Stock, Qty 17

0

17

Ariens 00341900

BEARING SLINGER

$23.99

$

In Stock, Qty 15

0

18

Ariens 03037500

RETAINER HUB

$73.99

$

In Stock, only 2 left!

0

19

Ariens 03485500

BLADE TRAY 48

$21.99

$

In Stock, only 1 left!

0

20

Ariens 03123751

BLADE
(Superseded to 03123700)

$23.99

$

In Stock, Qty 20+

0

21

Ariens 53115100

SPINDLE SHAFT W/ZERK

$75.99

$

Usually ships in 4-12 days

0

22

Ariens 06537200

@NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$1.49

$

In Stock, Qty 20+

0

23

Ariens 03433500

SPINDLE HOUSING

$

$

Not available

24

Ariens 03433600

SPACER, SPINDLE

$

$

Not available
