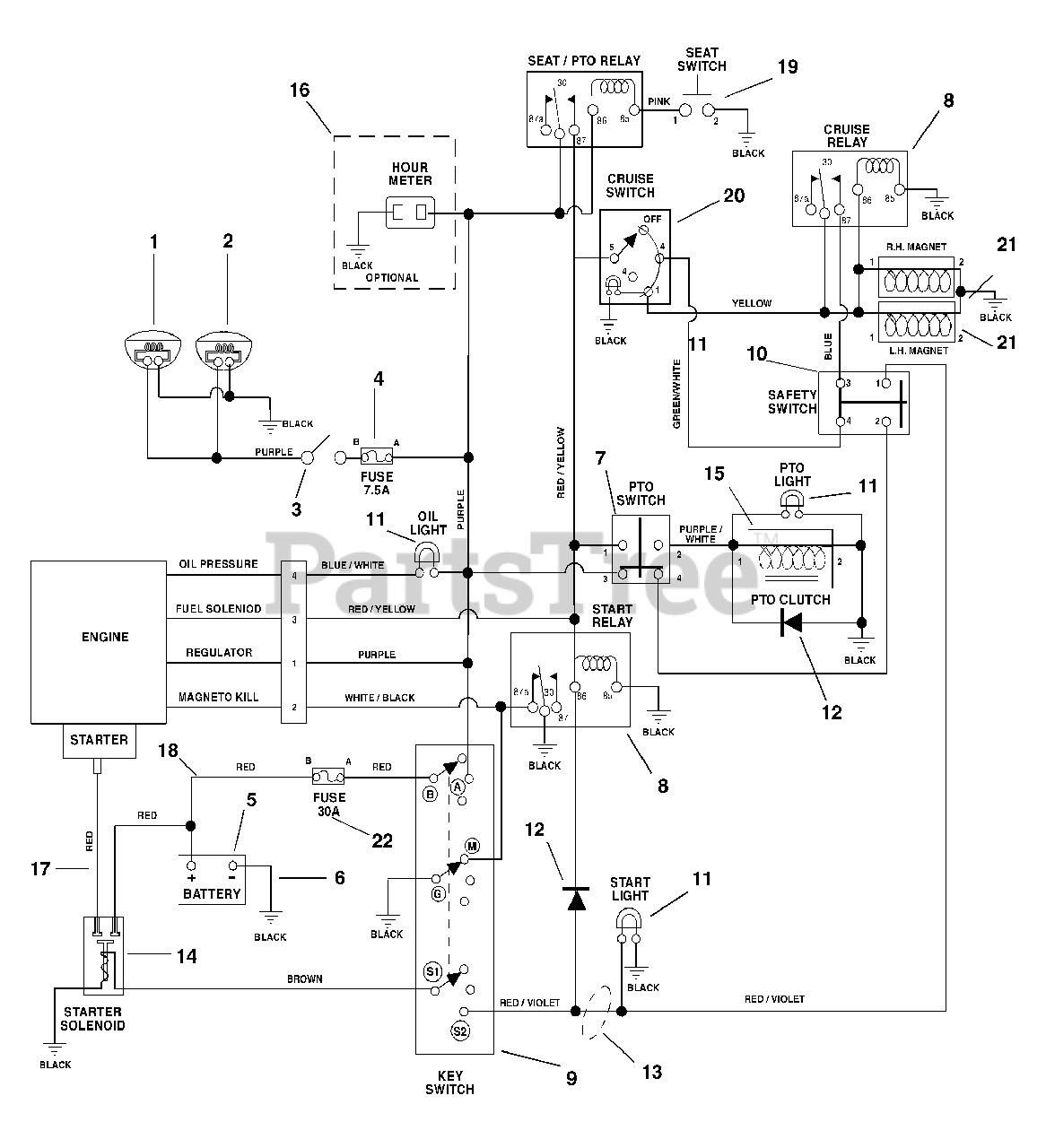

934026 (HT 1848) - Ariens High Sierra 48" Garden Tractor, 18hp Briggs & Stratton, Hydro (SN: 000101 & Above) Wiring Diagram Parts Diagram

High Sierra 48" Garden Tractor, 18hp Briggs & Stratton, Hydro

Wiring Diagram Parts Diagram

  • Title

1

Ariens 03647200

HEADLIGHT- RH

$

$

Not available

2

Ariens 03647300

HEADLIGHT- LH

$

$

Not available

3

Ariens 03656800

SWITCH - LIGHT

$

$

Not available

4

7.5 AMP Fuse

$

$

Not available

5

Ariens 03634400

BATTERY W/TUBE
(Superseded to 03621100)

$

$

Not available

6

Ariens 03111100

GROUND CABLE .31X22.00X.31
(Superseded to 03111101)

$20.99

$

In Stock, only 1 left!

0

7

Ariens 53603800

PTO KNOB/ SWITCH ASSY
(Superseded to 00355900)

$82.99

$

In Stock, only 1 left!

0

8

Ariens 03042800

RELAY
(Superseded to 00432101)

$20.99

$

In Stock, Qty 20+

0

9

Ariens 03602300

KEY SWITCH

$26.99

$

In Stock, Qty 9

0

10

Ariens 08828100

SWITCH,INTERLOCK

$20.99

$

Usually ships in 4-12 days

0

11

#194 Bulb

$

$

Not available

12

Ariens 03081700

MOLDED DIODE PLUG 1 AMP

$26.99

$

In Stock, only 1 left!

0

13

Ariens 03363600

HARNESS-WIRING,HIGH SIERRA

$

$

Not available

14

Ariens 03492300

SOLENOID
(Superseded to 03551000)

$34.99

$

In Stock, Qty 6

0

15

Ariens 03357900

CLUTCH, ELECTRIC - WARNER

$491.99

$

Usually ships in 4-12 days

0

16

Ariens 03492700

HOUR METER
(Superseded to 09497400)

$22.99

$

In Stock, only 1 left!

0

17

Ariens 02743300

START CABLE 22"
(Superseded to 03287200)

$17.99

$

In Stock, only 3 left!

0

18

Ariens 00145900

STARTER CABLE 6.75"

$13.99

$

In Stock, only 2 left!

0

19

Ariens 03654200

SWITCH- SEAT

$13.99

$

Usually ships in 4-12 days

0

20

Ariens 03656900

SWITCH - CRUISE

$22.99

$

Usually ships in 4-12 days

0

21

Ariens 03672400

MAGNET

$

$

Not available

22

30 AMP Fuse

$

$

Not available
