934027 (HT 2248) - Ariens High Sierra 48" Garden Tractor, 22hp Briggs & Stratton, Hydro (SN: 000101 & Above) Attachment Lift Parts Diagram

High Sierra 48" Garden Tractor, 22hp Briggs & Stratton, Hydro

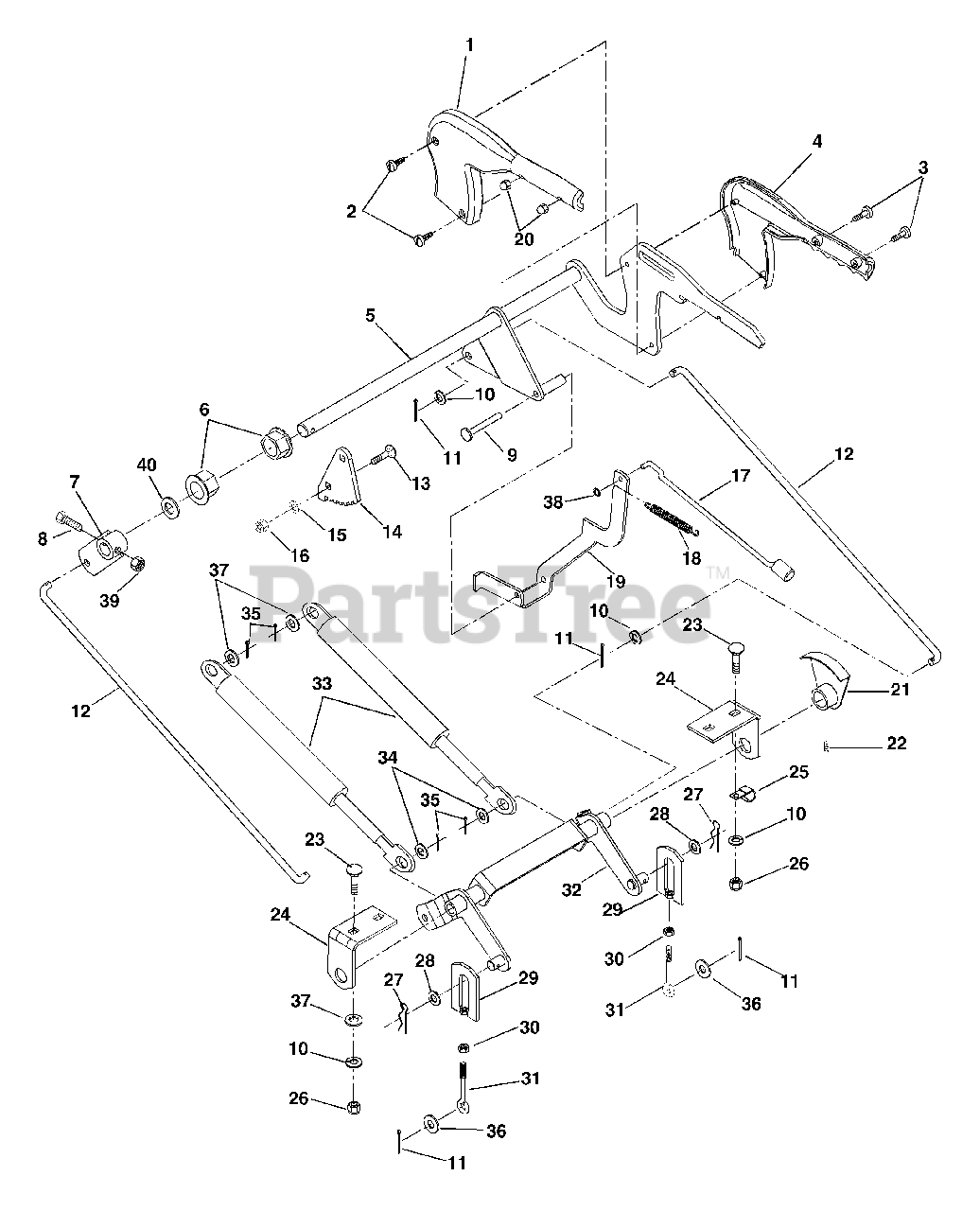

Attachment Lift Parts Diagram

  • Title

1

Ariens 03665500

COVER - LIFT RH

$91.99

$

Usually ships in 4-12 days

0

2

Ariens 07412600

SCR-TAP 10-16X1.125HI-LOTPHBL

$3.49

$

Usually ships in 4-12 days

0

3

Ariens 06111100

SCR-MCH 10-24X.62 P/HD

$0.99

$

In Stock, Qty 16

0

4

Ariens 03665600

COVER - LIFT LH

$91.99

$

Usually ships in 4-12 days

0

5

Ariens 03348351

LEVER, LIFT
(Superseded to 03348300)

$

$

Not available

6

Ariens 05521600

BSHG-FLG .750X.873HEXX.53X1.18

$9.49

$

In Stock, Qty 20+

0

7

Ariens 03339051

ARM, LIFT

$

$

Not available

8

Ariens 05971400

BLT-HEX .25-20X1.50 GR8 YWZC

$2.49

$

In Stock, only 1 left!

0

9

Ariens 03653800

PIN, PIVOT .312 X 2.56

$

$

Not available

10

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 18

0

11

Ariens 06707100

@PIN-CTR .12X1.00 EXTPRSQCT YZ

$0.99

$

In Stock, Qty 12

0

12

Ariens 03352700

LINK, LIFT

$

$

Not available

13

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 11

0

14

Ariens 03364900

QUADRANT, LIFT

$

$

Not available

15

Ariens 06436700

WSHR-FL-STL .323X.625X.062 YWZ
(Superseded to 06401002)

$1.49

$

In Stock, only 2 left!

0

16

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 03675000

PIN, LIFT

$

$

Not available

18

Ariens 08330300

SG-TENS .048X.44X2.25 WLD 9

$

$

Not available

19

Ariens 03683000

LEVER, DETENT
(Superseded to 03683051)

$60.99

$

Usually ships in 4-12 days

0

20

Ariens 06541300

NUT,10-24 LOW CROWN, ACORN

$3.99

$

In Stock, Qty 8

0

21

Ariens 03674351

INDICATOR, DECK HEIGHT

$

$

Not available

22

Ariens 06000500

SCR-SET .25-20X.25 SKHCUP OH

$2.49

$

In Stock, only 1 left!

0

23

Ariens 06211800

BLT-RHHDSQSHNK .38-16X.75 G2YZ
(Superseded to 06200336)

$2.99

$

In Stock, Qty 20+

0

24

Ariens 03351951

BRACKET, CENTER LIFT

$5.99

$

Usually ships in 4-12 days

0

25

Ariens 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

26

Ariens 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

In Stock, only 1 left!

0

27

Ariens 06711900

PIN-HAIR-EXT .12X.31X2.37 YWZC

$2.99

$

In Stock, only 3 left!

0

28

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

29

Ariens 03486400

LINK, ADJUSTMENT

$43.99

$

In Stock, only 2 left!

0

30

Ariens 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, Qty 9

0

31

Ariens 07030000

BLT-EYE .375-16X2.50 YWZC

$7.99

$

In Stock, only 1 left!

0

32

Ariens 03352951

LEVER, CENTER LIFT

$11.99

$

Usually ships in 4-12 days

0

33

Ariens 08326100

SG-GAS COMP .315X.75X10.00 120

$

$

Not available

34

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 14

0

35

Ariens 06707300

@PIN-CTR .12X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, Qty 9

0

36

Ariens 06442800

@WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

$2.49

$

In Stock, Qty 20+

0

37

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

38

Ariens 05717600

RG-RTNG-EXT .250X.010

$0.99

$

In Stock, Qty 17

0

39

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

40

Ariens 06403300

WSHR-FL-STL .755X1.375X.125

$3.99

$

In Stock, only 1 left!

0
