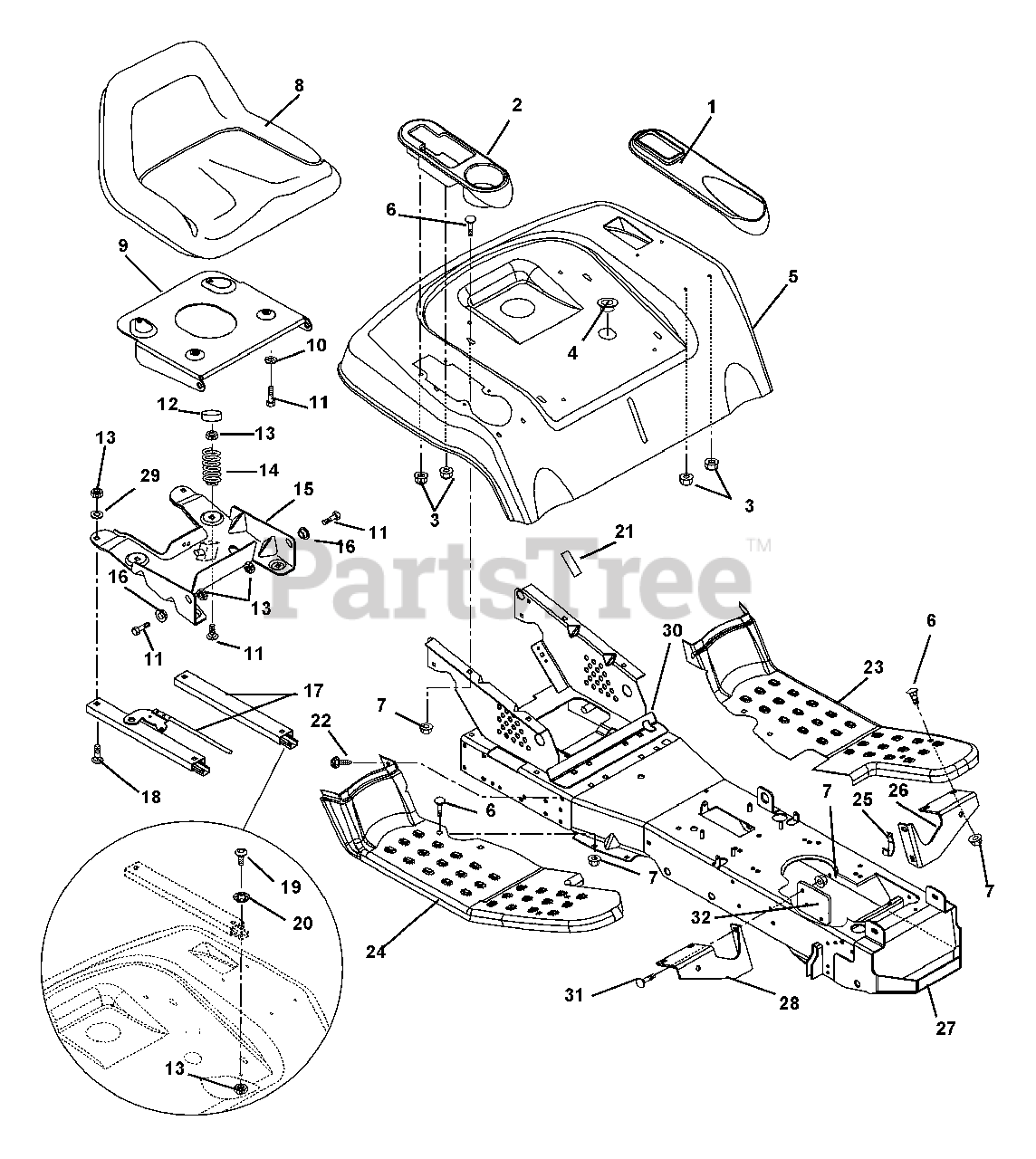

934027 (HT 2248) - Ariens High Sierra 48" Garden Tractor, 22hp Briggs & Stratton, Hydro (SN: 000101 & Above) Frame And Rear Deck Parts Diagram

High Sierra 48" Garden Tractor, 22hp Briggs & Stratton, Hydro

Frame And Rear Deck Parts Diagram

  • Title

1

Ariens 03650300

INSERT- LIFT

$

$

Not available

2

Ariens 03652500

INSERT - BEVERAGE

$

$

Not available

3

Ariens 07008000

NUT-SELF-THRDNG FITS.25 STUDPL

$2.99

$

In Stock, only 1 left!

0

4

Ariens 07521000

SNAP BUSHING

$3.49

$

Usually ships in 4-12 days

0

5

Ariens 03649459

REAR DECK

$

$

Not available

6

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, only 4 left!

0

8

Ariens 03670500

SEAT
(Superseded to 00366300)

$

$

Not available

9

Ariens 03650451

PLATE, SEAT PIVOT

$

$

Not available

10

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, only 4 left!

0

11

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0

12

Ariens 07521600

TUBE CAP

$1.49

$

Usually ships in 4-12 days

0

13

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 08328200

SG-COMP .148X1.23X2.41 WLD87

$15.99

$

In Stock, only 2 left!

0

15

Ariens 03618151

SEAT BOX
(Superseded to 03618100)

$

$

Not available

16

Ariens 05516200

BSHG-FLG .325X.465X.333X.685

$17.99

$

Usually ships in 4-12 days

0

17

Ariens 03600800

SEAT SLIDES -(RAME TAK-3010-4)

$104.99

$

Usually ships in 4-12 days

0

18

Ariens 06214100

BLT-RDHDSQSHK.31-18X.75 GR2 YW
(Superseded to 06200309)

Note: Grade 2

$2.49

$

In Stock, Qty 9

0

19

Ariens 07008100

SCR-CAP BTHD.31-18X.50 GR5 YZ

$2.49

$

Usually ships in 4-12 days

0

20

Ariens 06310500

WSHR-LOCK INT .31 YWZC

$0.99

$

In Stock, only 3 left!

0

21

Ariens 03645700

PAD, FOAM

$26.99

$

Usually ships in 4-12 days

0

22

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

23

Ariens 03649359

FOOT REST L.H.

$

$

Not available

24

Ariens 03649559

FOOT REST R.H.

Note: (S/N 000501 and up)

$

$

Not available

Ariens 03649259

FOOT REST RH

Note: (S/N 000101-000268)

$14.99

$

Usually ships in 4-12 days

0

25

Ariens 06909400

J-CLAMP

$3.49

$

In Stock, Qty 11

0

26

Ariens 03649851

BRACE, FOOT REST LH

$

$

Not available

27

Ariens 03673551

FRAME, MAIN (WELDMENT)

$

$

Not available

28

Ariens 03649951

BRACE, FOOT REST RH

$

$

Not available

29

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

30

Ariens 03674251

PLATE, REINFORCING

$

$

Not available

31

Ariens 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.49

$

In Stock, Qty 13

0

32

Ariens 03363200

PLATE-CRUISE CONTROL

$5.99

$

Usually ships in 4-12 days

0
