934027 (HT 2248) - Ariens High Sierra 48" Garden Tractor, 22hp Briggs & Stratton, Hydro (SN: 000101 & Above) Hanger Arm Parts Diagram

High Sierra 48" Garden Tractor, 22hp Briggs & Stratton, Hydro

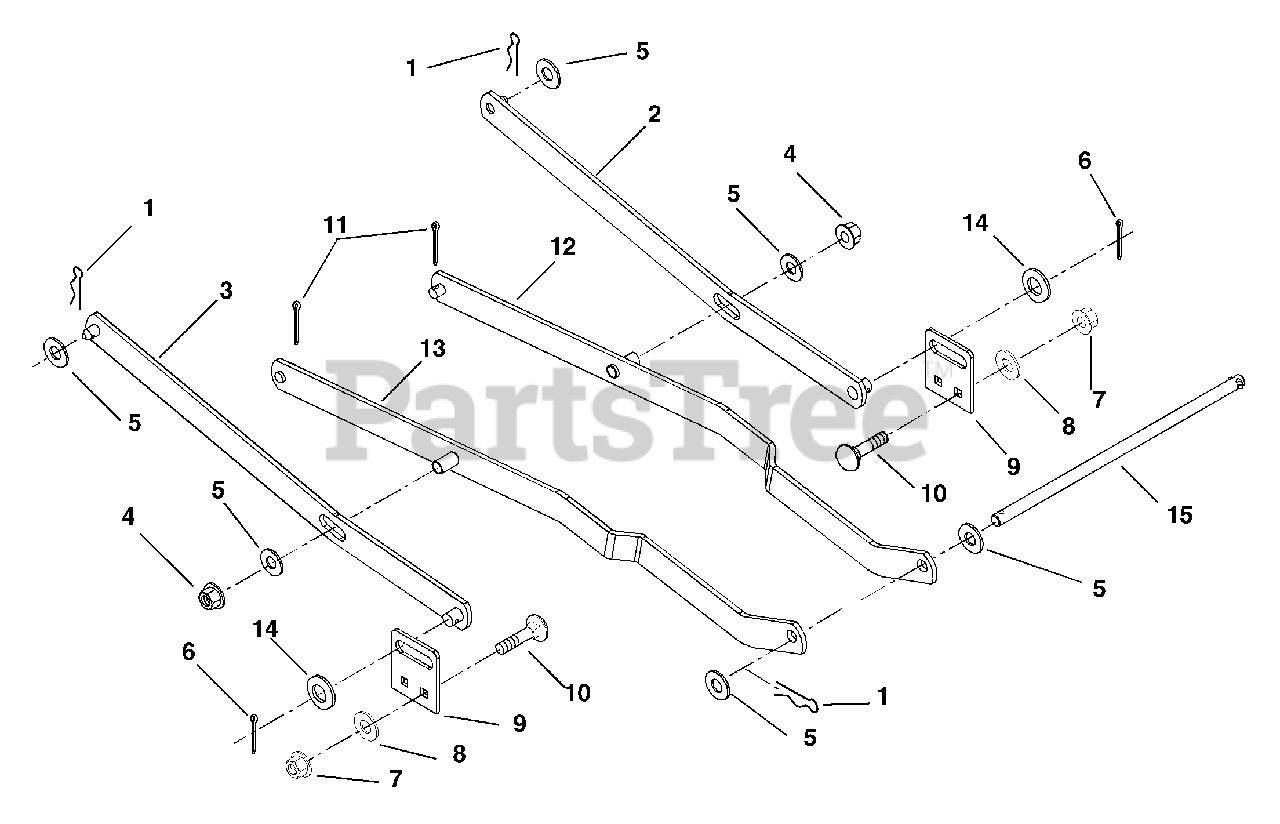

Hanger Arm Parts Diagram

  • Title

1

Ariens 06711900

PIN-HAIR-EXT .12X.31X2.37 YWZC

$2.99

$

In Stock, only 3 left!

0

2

Ariens 03355251

ARM, LIFT-LEFT REAR

$

$

Not available

3

Ariens 03355351

ARM, LIFT-RIGHT REAR

$

$

Not available

4

Ariens 06535300

@NUT-LK-CTR .62-11 YWZC

Note: Grade 2

$2.99

$

In Stock, only 1 left!

0

5

Ariens 06442800

@WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

$2.49

$

In Stock, Qty 20+

0

6

Ariens 06701100

@PIN-CTR .16X1.25 EXTPRSQCT YZ

$1.99

$

Usually ships in 4-12 days

0

7

Ariens 06535500

NUT-LK-CTR .375-16 YWZC
(Superseded to 06529600)

Note: Grade 2

$1.49

$

In Stock, Qty 20+

0

8

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 03355751

ADJUSTOR-PAN

$

$

Not available

10

Ariens 06215500

@BLT-RDHDSQNK .38-16X1.00 G2YZ
(Superseded to 06223600)

Note: Grade 5

$2.49

$

In Stock, Qty 19

0

11

Ariens 06712600

@PIN-CTR .12X1.25 EXTPRSQCT YZ
(Superseded to 06700212)

$0.99

$

In Stock, Qty 7

0

12

Ariens 03355051

ARM, LIFT-RIGHT FORWARD

$

$

Not available

13

Ariens 03355151

ARM, LIFT-LEFT FORWARD

$

$

Not available

14

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 03363400

ROD-DECK HANGER, FRONT

$

$

Not available
