934027 (HT 2248) - Ariens High Sierra 48" Garden Tractor, 22hp Briggs & Stratton, Hydro (SN: 000101 & Above) Mower Spindle (Continued) Parts Diagram

High Sierra 48" Garden Tractor, 22hp Briggs & Stratton, Hydro

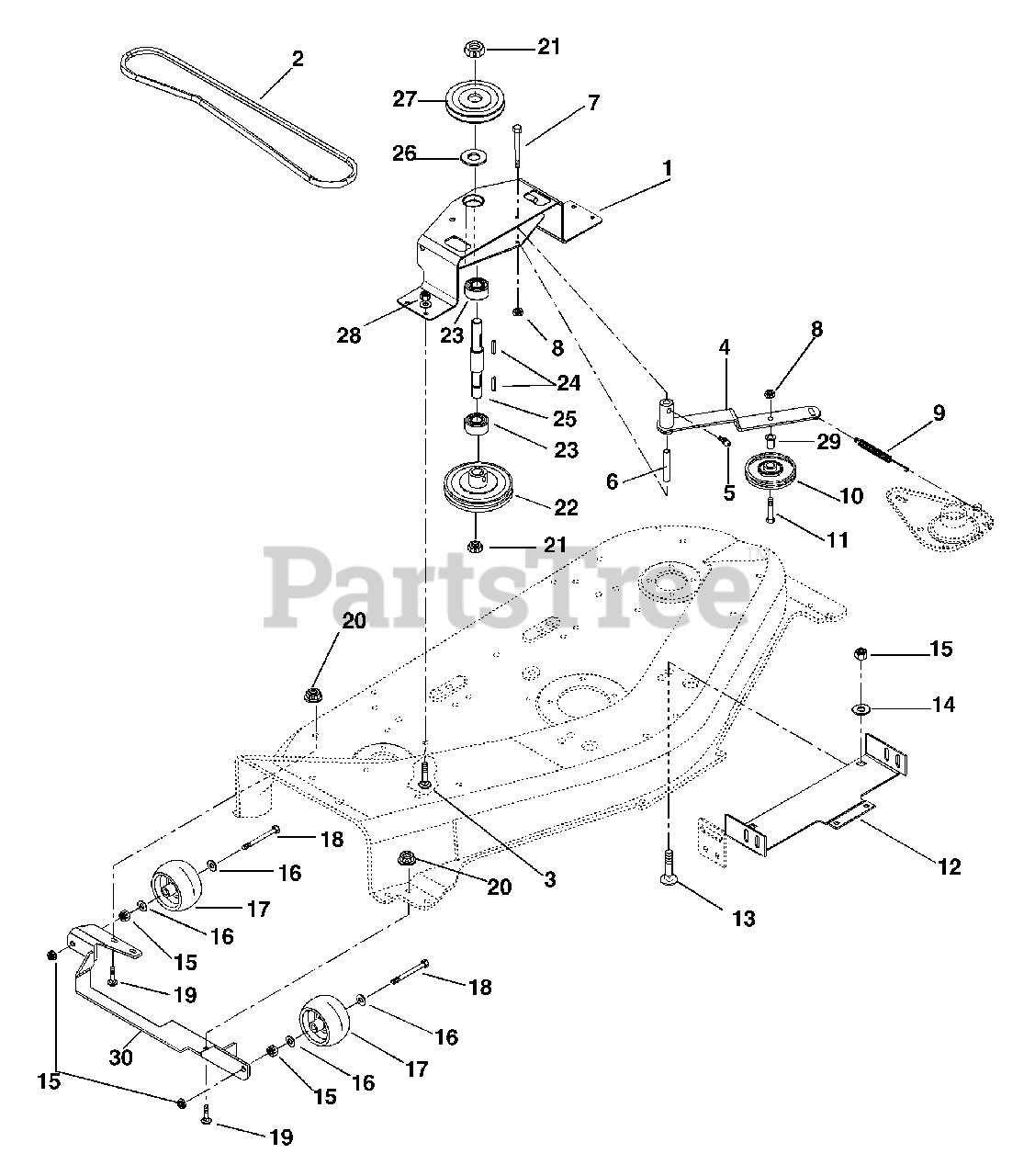

Mower Spindle (Continued) Parts Diagram

  • Title

1

Ariens 03362451

HOUSING-JACKSHAFT

$45.99

$

Usually ships in 4-12 days

0

2

Ariens 07217800

V-BELT, HA-RAW EDGE

$47.99

$

In Stock, only 2 left!

0

3

Ariens 06214100

BLT-RDHDSQSHK.31-18X.75 GR2 YW
(Superseded to 06200309)

$2.49

$

In Stock, Qty 9

0

4

Ariens 03356151

ARM-IDLER

$

$

Not available

5

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

6

Ariens 03356200

SPACER .334X.500X2.73

$

$

Not available

7

Ariens 05948000

@BLT-HEX .31-18X3.50 GR5 YWZC

Note: Grade 5

$2.49

$

Usually ships in 4-12 days

0

8

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 08329000

SG-TENS .113X.812X7.00

$20.99

$

In Stock, only 1 left!

0

10

Ariens 00542700

IDLER, PLASTIC, 4.00 X .50 ID

$37.99

$

In Stock, only 2 left!

0

11

Ariens 05957900

@BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

Note: Grade 5

$1.49

$

In Stock, Qty 5

0

12

Ariens 03358751

BRACE-FRONT

$13.99

$

Usually ships in 4-12 days

0

13

Ariens 06224600

@BLT-RDHDSQNK .50-13X1.00 G5YZ
(Superseded to 06200420)

Note: Grade 5

$3.99

$

In Stock, only 3 left!

0

14

Ariens 06436600

WSHR-FL-STL .505X.880X.072 YWZ
(Superseded to 06401126)

$3.99

$

In Stock, only 2 left!

0

15

Ariens 06536300

@NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

16

Ariens 06436600

WSHR-FL-STL .505X.880X.072 YWZ
(Superseded to 06401126)

$3.99

$

In Stock, only 2 left!

0

17

Ariens 03471700

WHEEL 5 X 3
(Superseded to 03905600)

$15.99

$

In Stock, Qty 19

0

18

Ariens 05961900

@BLT-HEX .50-13X4.00 GR5 YWZC
(Superseded to 05901734)

Note: Grade 5

$3.99

$

In Stock, only 1 left!

0

19

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 8

0

20

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 06535400

@NUT-LK-CTR .75-10 YWZC

Note: Grade 2

$5.99

$

Usually ships in 4-12 days

0

22

Ariens 07312900

PLY-V 6.00 X .75 W/KEY

$68.99

$

Usually ships in 4-12 days

0

23

Ariens 05412000

BRG-BALL .750X1.781X.61

$13.99

$

In Stock, Qty 20+

0

24

Ariens 06606000

KEY-SQ .187 X .50 X .187

$10.99

$

In Stock, only 3 left!

0

25

Ariens 03355400

JACKSHAFT

$

$

Not available

26

Ariens 06444200

WSHR-FL-STL .755X1.25X.125 YZ
(Superseded to 06441500)

$3.99

$

In Stock, Qty 12

0

27

Ariens 03454400

SHEAVE

$

$

Not available

28

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

Note: Grade 2

$1.49

$

In Stock, Qty 20+

0

29

Ariens 03114500

SPACER -FLANGED .390X.500X.781

$9.99

$

In Stock, only 4 left!

0

30

Ariens 01533959

MOUNT ROLLER
(Superseded to 01533900)

$

$

Not available

31

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

32

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0
