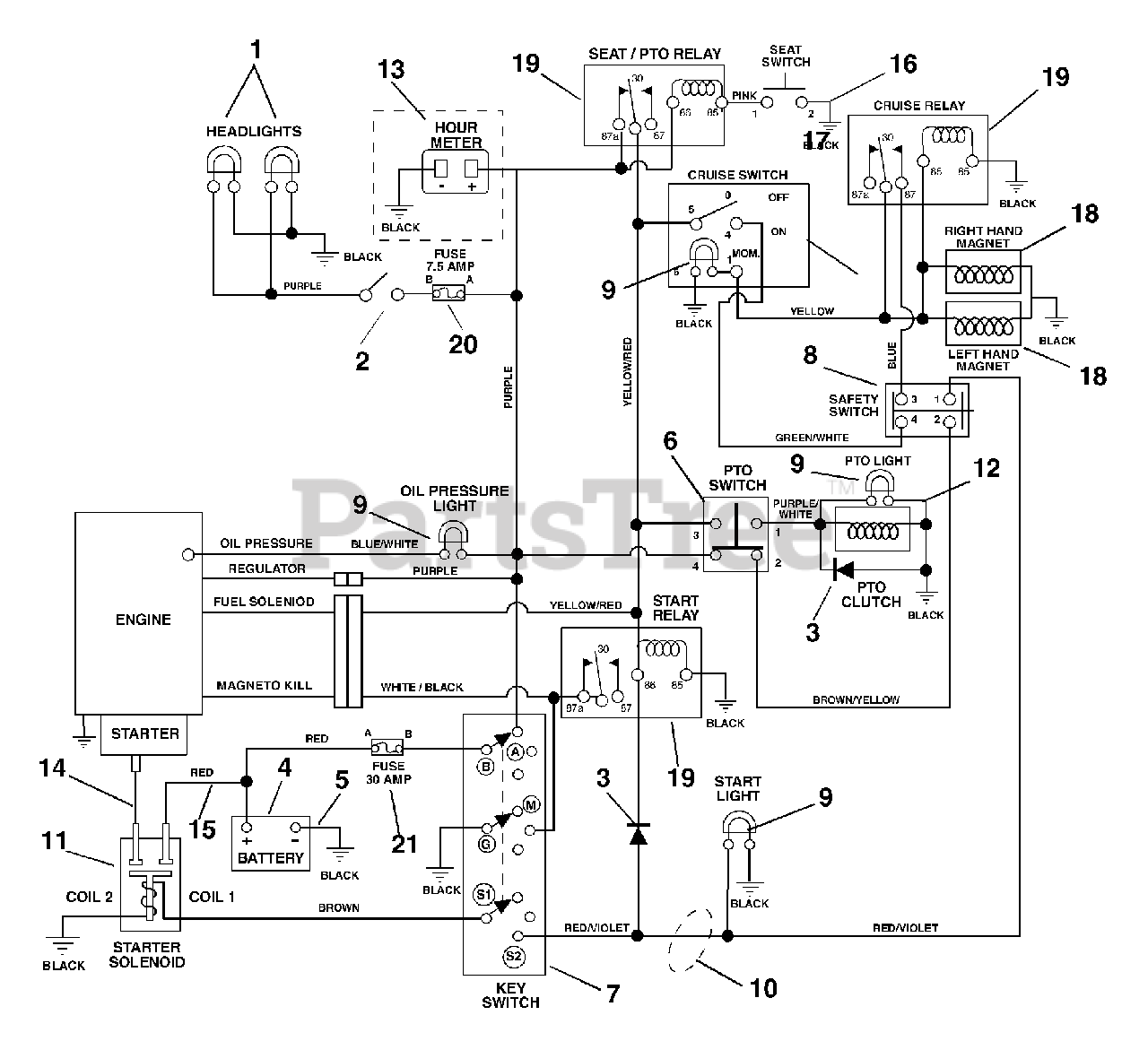

934027 (HT 2248) - Ariens High Sierra 48" Garden Tractor, 22hp Briggs & Stratton, Hydro (SN: 000101 & Above) Wiring Diagram Parts Diagram

High Sierra 48" Garden Tractor, 22hp Briggs & Stratton, Hydro

Wiring Diagram Parts Diagram

  • Title

1

Ariens 03420500

HEADLIGHT BULB, 1156

$30.99

$

In Stock, only 1 left!

0

2

Ariens 03656800

SWITCH - LIGHT

$

$

Not available

3

Ariens 03081700

MOLDED DIODE PLUG 1 AMP

$26.99

$

In Stock, only 1 left!

0

4

Ariens 03634400

BATTERY W/TUBE
(Superseded to 03621100)

$

$

Not available

5

Ariens 03111100

GROUND CABLE .31X22.00X.31
(Superseded to 03111101)

$20.99

$

In Stock, only 1 left!

0

6

Ariens 53603800

PTO KNOB/ SWITCH ASSY
(Superseded to 00355900)

$82.99

$

In Stock, only 1 left!

0

7

Ariens 03602300

KEY SWITCH

$26.99

$

In Stock, Qty 9

0

8

Ariens 08828100

SWITCH,INTERLOCK

$20.99

$

Usually ships in 4-12 days

0

9

Ariens 03683100

BULB, #194

$

$

Not available

10

Ariens 03363600

HARNESS-WIRING,HIGH SIERRA

$

$

Not available

11

Ariens 03492300

SOLENOID
(Superseded to 03551000)

$34.99

$

In Stock, Qty 5

0

12

Ariens 03357900

CLUTCH, ELECTRIC - WARNER

$491.99

$

Usually ships in 4-12 days

0

13

Ariens 03492700

HOUR METER
(Superseded to 09497400)

Note: (Optional)

$22.99

$

In Stock, only 1 left!

0

14

Ariens 02743300

START CABLE 22"
(Superseded to 03287200)

$17.99

$

In Stock, only 3 left!

0

15

Ariens 00145900

STARTER CABLE 6.75"

$13.99

$

In Stock, only 2 left!

0

16

Ariens 03654200

SWITCH- SEAT

$13.99

$

Usually ships in 4-12 days

0

17

Ariens 03656900

SWITCH - CRUISE

$22.99

$

Usually ships in 4-12 days

0

18

Ariens 03672400

MAGNET

$

$

Not available

19

Ariens 03042800

RELAY
(Superseded to 00432101)

$20.99

$

In Stock, Qty 20+

0

20

Ariens 00524800

FUSE, 7.5 AMP

$

$

Not available

21

Ariens 00524600

FUSE, 30 AMP.

$

$

Not available
