934301 (HT 1848) - Ariens High Sierra 48" Garden Tractor, 18hp Briggs & Stratton, Hydro (SN: 000101 & Above) Hanger Arm Parts Diagram

High Sierra 48" Garden Tractor, 18hp Briggs & Stratton, Hydro

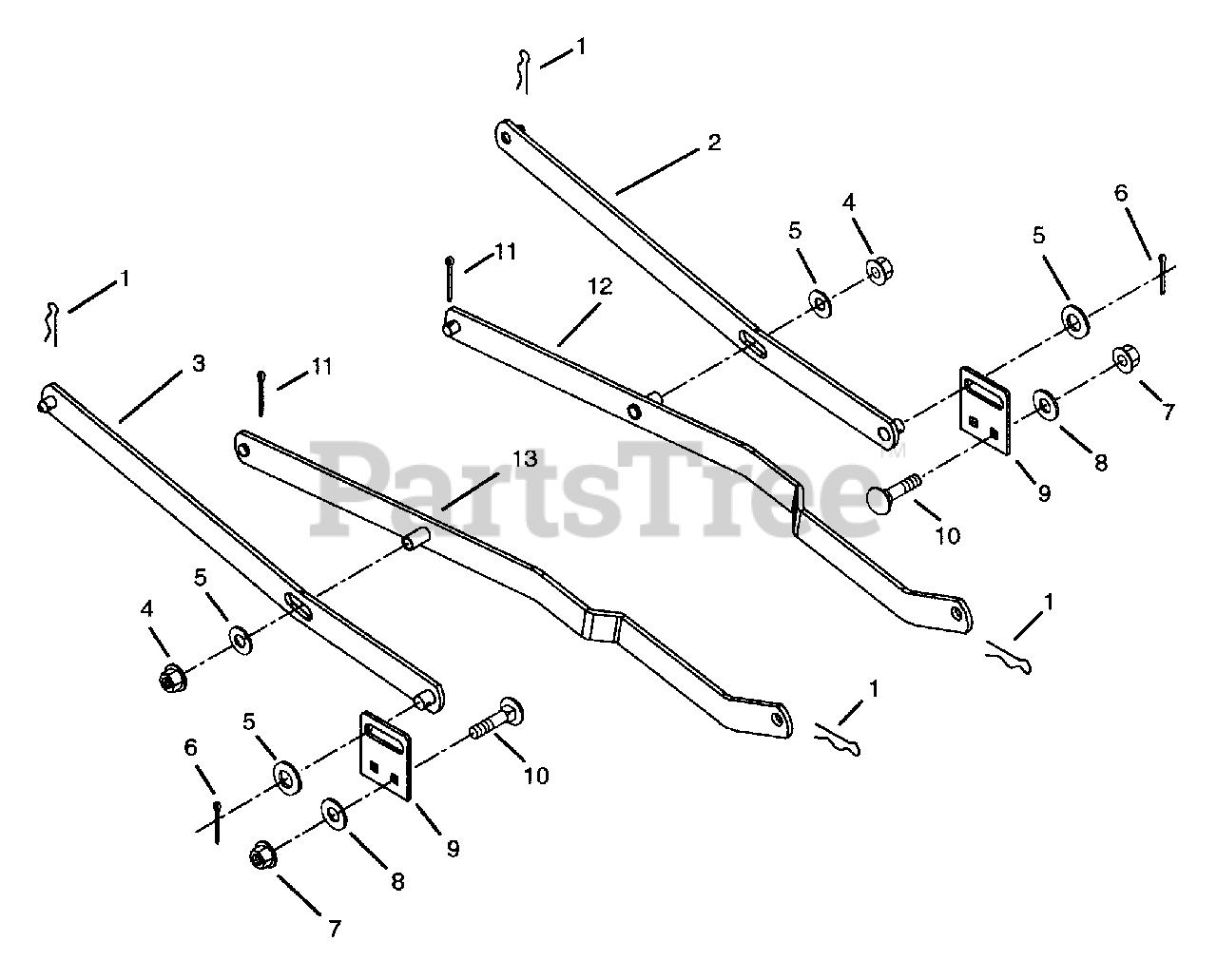

Hanger Arm Parts Diagram

  • Title

1

Ariens 06703700

PIN-HAIR EXT .12X.31X2.37 PL
(Superseded to 06711900)

$2.99

$

In Stock, only 3 left!

0

2

Ariens 03355200

ARM, LIFT-LEFT REAR
(Superseded to 03355251)

$

$

Not available

3

Ariens 03355300

ARM, LIFT-RIGHT REAR
(Superseded to 03355351)

$

$

Not available

4

Ariens 06526700

NUT-LK-CTR .625-11 TYP N
(Superseded to 06535300)

$2.99

$

In Stock, only 1 left!

0

5

Ariens 06400400

WSHR-FL-STL.656X1.312X.095 PL
(Superseded to 06442800)

$2.49

$

In Stock, Qty 20+

0

6

Ariens 06701100

@PIN-CTR .16X1.25 EXTPRSQCT YZ

$1.99

$

Usually ships in 4-12 days

0

7

Ariens 06513500

NUT-LK-NYL .375-16 PL
(Superseded to 06535800)

$2.49

$

In Stock, Qty 19

0

8

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 03355700

ADJUSTOR, PAN

$

$

Not available

10

Ariens 06207800

BLT-RDHDSQNK .375-16X.75 GR5PL
(Superseded to 06223900)

$1.49

$

Usually ships in 4-12 days

0

11

Ariens 06701400

PIN-COTR .12 X 1.25 PL
(Superseded to 06712600)

$0.99

$

In Stock, Qty 7

0

12

Ariens 03355000

ARM, LIFT - LEFT FORWARD

$

$

Not available

13

Ariens 03355100

ARM, LIFT - RIGHT FORWARD

$74.99

$

Usually ships in 4-12 days

0
