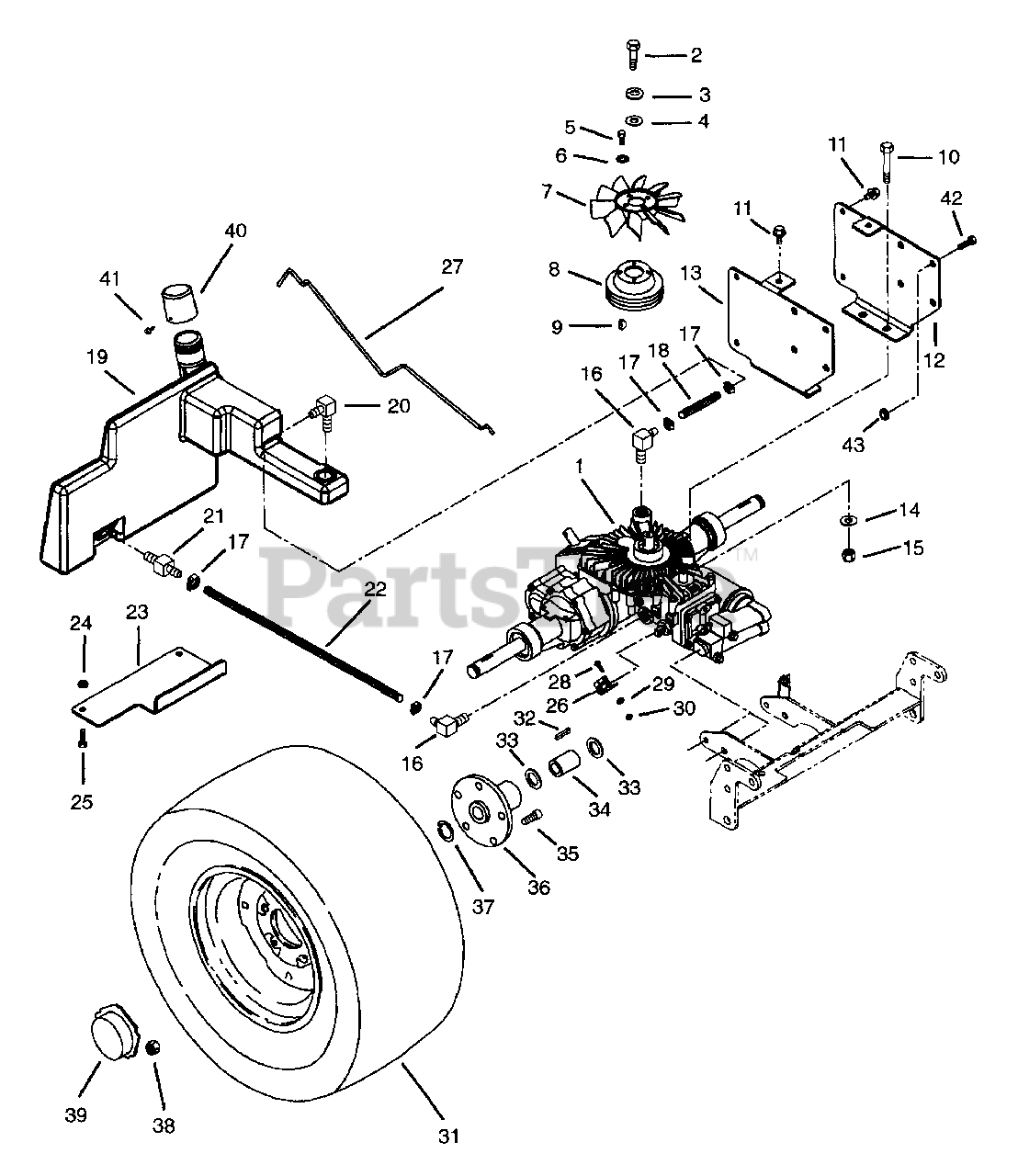

934301 (HT 1848) - Ariens High Sierra 48" Garden Tractor, 18hp Briggs & Stratton, Hydro (SN: 000101 & Above) Hydrostatic Drive Parts Diagram

High Sierra 48" Garden Tractor, 18hp Briggs & Stratton, Hydro

Hydrostatic Drive Parts Diagram

  • Title

1

Ariens 03465400

TRANSAXLE - HYDRO
(Superseded to 53405300)

$

$

Not available

2

Ariens 05908300

BLT-HEX .25-20X1.00 PL GR5
(Superseded to 05947700)

$1.49

$

In Stock, Qty 7

0

3

Ariens 06300200

WSHR-LK .250X.077 HVY PL
(Superseded to 06308000)

$0.99

$

Usually ships in 4-12 days

0

4

Ariens 06410000

WSHR-FL-STL .265X1.370X.145
(Superseded to 06443900)

$17.99

$

Usually ships in 4-12 days

0

5

Ariens 05909700

BLT-HEX 10-24X.38 PL GR2

$

$

Not available

6

Ariens 06302600

WSHR-LK-EXT #10 ID X .022
(Superseded to 06310400)

$1.99

$

In Stock, only 1 left!

0

7

Ariens 03570000

FAN

$35.99

$

In Stock, only 2 left!

0

8

Ariens 03465500

SHEAVE - TRANSAXLE
(Superseded to 53406700)

$

$

Not available

9

Ariens 06601400

KEY-WDRF .188X.625X.25 SAE 61

$2.49

$

In Stock, Qty 10

0

10

Ariens 05919600

BLT-HEX .38-16X3.00 PL GR5
(Superseded to 05958300)

$3.49

$

In Stock, only 1 left!

0

11

Ariens 07401600

SCR-TAP .375-16X .50 HWH PL TR
(Superseded to 07412900)

$1.49

$

In Stock, only 4 left!

0

12

Ariens 03352100

MOUNT, AXLE L.H.

$

$

Not available

13

Ariens 03352000

MOUNT, AXLE R.H.

$

$

Not available

14

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 06513500

NUT-LK-NYL .375-16 PL
(Superseded to 06535800)

$2.49

$

In Stock, Qty 19

0

16

Ariens 03450600

FITTING

$32.99

$

Usually ships in 4-12 days

0

17

Ariens 03449700

CLAMP-HOSE WRM .38/.62X.50 #10

$

$

Not available

18

Ariens 03354200

HOSE, .625 ID X.906 OD X 6.50

$

$

Not available

19

Ariens 03359000

RESERVOIR, OIL
(Superseded to 03353900)

$

$

Not available

20

Ariens 07027900

ELBOW, BARBED .625

$

$

Not available

21

Ariens 07027800

ADPTR-MALE

$

$

Not available

22

Ariens 03354100

HOSE, .625 ID X.906 OD X 10.75

$

$

Not available

23

Ariens 03354300

BRACE, OIL RESERVOIR

$

$

Not available

24

Ariens 06506200

NUT-LK-NYL.312-18 PL
(Superseded to 06530200)

$0.99

$

Usually ships in 4-12 days

0

25

Ariens 05913500

BLT-HEX .31-18X.75 PL GR5
(Superseded to 05947000)

$1.49

$

In Stock, Qty 12

0

26

Ariens 03354900

ARM, DUMP VALVE

$

$

Not available

27

Ariens 03354800

ROD, DUMP VALVE

$

$

Not available

28

Ariens 05908300

BLT-HEX .25-20X1.00 PL GR5
(Superseded to 05947700)

$1.49

$

In Stock, Qty 7

0

29

Ariens 06300200

WSHR-LK .250X.077 HVY PL
(Superseded to 06308000)

$0.99

$

Usually ships in 4-12 days

0

30

Ariens 06503200

NUT-HEX .250-20 PL
(Superseded to 06533200)

$0.99

$

In Stock, Qty 7

0

31

Ariens 07115400

T/WHL ASSY 10.50X23

$

$

Not available

32

Ariens 06602100

KEY-STR .25X2.0X.25

$4.99

$

Usually ships in 4-12 days

0

33

Ariens 06404600

WSHR-FL-STL 1.010X1.505X.062PL
(Superseded to 06436300)

$1.49

$

In Stock, Qty 16

0

34

Ariens 03447600

SPACER 1.006X1.437X1.928

$

$

Not available

35

Ariens 07008300

BLT-LUG SERNKHDND .44-20X1.188

$

$

Not available

36

Ariens 03438600

WHEEL HUB

$176.99

$

Usually ships in 4-12 days

0

37

Ariens 05707300

RG-RTNG-EXT 1.00X.078

$2.99

$

In Stock, only 2 left!

0

38

Ariens 06511400

NUT-LUG .437-20 YWZC

$3.99

$

Usually ships in 4-12 days

0

39

Ariens 07508800

REAR HUB CAP

$15.99

$

Usually ships in 4-12 days

0

40

Ariens 03359100

CAP - OIL RESERVOIR
(Superseded to 03353900)

$

$

Not available

41

Ariens 07408900

SCR-DR 8-18X.50

$

$

Not available

42

Ariens 05914500

BLT-HEX .38-16X1.00 PL GR5
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

43

Ariens 06512200

NUT-LK TOP .375-16 GR C YWZC

$2.49

$

Usually ships in 4-12 days

0

Ariens 03467800

FILTER, OIL (WISEAL)

Note: Not Shown

$60.99

$

In Stock, only 1 left!

0
