934301 (HT 1848) - Ariens High Sierra 48" Garden Tractor, 18hp Briggs & Stratton, Hydro (SN: 000101 & Above) Mower Spindle (Continued) Parts Diagram

High Sierra 48" Garden Tractor, 18hp Briggs & Stratton, Hydro

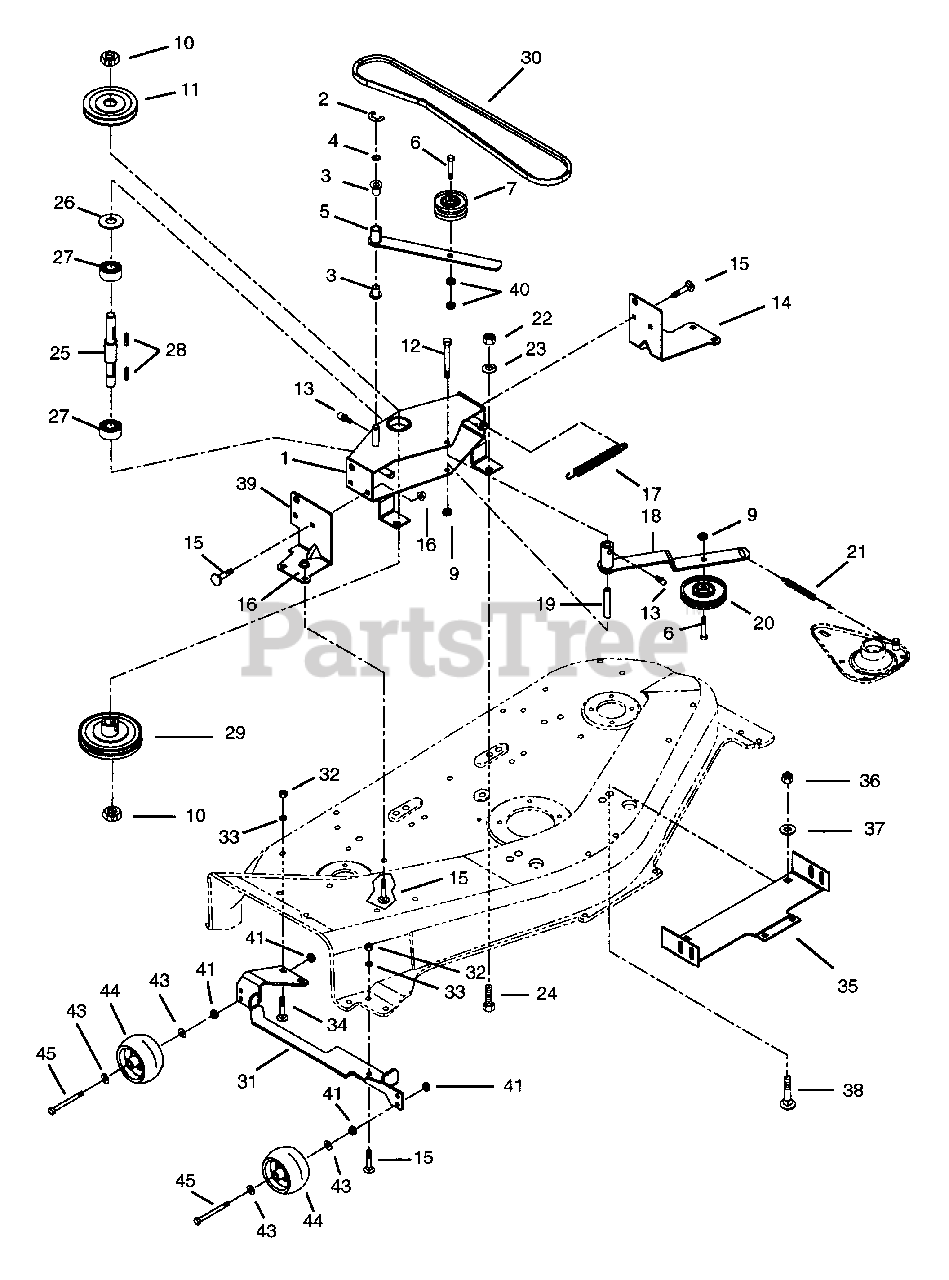

Mower Spindle (Continued) Parts Diagram

  • Title

1

Ariens 03354700

HOUSING, JACKSHAFT

$

$

Not available

2

Ariens 05710200

RG-RTNG-EXT .500X.042 (E)

$0.99

$

In Stock, Qty 20+

0

3

Ariens 05503700

BSHG-FLG.500X.625X.312X.750NY

$0.99

$

In Stock, Qty 20+

0

4

Ariens 06405600

WSHR-FL-STL .505X.880X.072 PL
(Superseded to 06436600)

$3.99

$

In Stock, only 2 left!

0

5

Ariens 03355500

ARM, IDLER
(Superseded to 53406500)

$

$

Not available

6

Ariens 05915100

BLT-HEX .38-16X1.50 PL GR5
(Superseded to 05957900)

$1.49

$

In Stock, Qty 5

0

7

Ariens 07309300

IDLER-FLAT 3.00X.38

$37.99

$

In Stock, Qty 5

0

8

Ariens 05914700

BLT-HEX .38-16X2.00 PL GR5
(Superseded to 05963300)

$2.99

$

In Stock, Qty 11

0

9

Ariens 06513500

NUT-LK-NYL .375-16 PL
(Superseded to 06535800)

$2.49

$

In Stock, Qty 19

0

10

Ariens 06517700

NUT-LK-NYL INSR .75-10 PL
(Superseded to 06540800)

$5.99

$

In Stock, Qty 6

0

11

Ariens 03454400

SHEAVE

$

$

Not available

12

Ariens 05921600

BLT-HEX.38-16X2.5FTHD GR2 YWZC

$2.99

$

In Stock, only 3 left!

0

13

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

14

Ariens 03358800

BRACE, LEFT REAR

$6.99

$

Usually ships in 4-12 days

0

15

Ariens 06204100

BLT-RDHDSQNK.31-18X.75GR5SHTPL
(Superseded to 06220800)

$2.49

$

In Stock, Qty 9

0

16

Ariens 06506200

NUT-LK-NYL.312-18 PL
(Superseded to 06530200)

$0.99

$

Usually ships in 4-12 days

0

17

Ariens 08330500

SG-TENS .113 X .812 X 6.00

$

$

Not available

18

Ariens 03356100

ARM, IDLER
(Superseded to 03356151)

$

$

Not available

19

Ariens 03356200

SPACER .334X.500X2.73

$

$

Not available

20

Ariens 07312500

IDLER-FLAT 4.00 X .38 NWHAMSHR
(Superseded to 07300101)

$62.99

$

In Stock, Qty 13

0

21

Ariens 08329000

SG-TENS .113X.812X7.00

$20.99

$

In Stock, only 1 left!

0

22

Ariens 06502100

NUT .50-13 PL
(Superseded to 06537300)

$3.99

$

In Stock, only 2 left!

0

23

Ariens 06305100

WSHR-LK .50 REG.
(Superseded to 06307300)

$1.49

$

In Stock, Qty 18

0

24

Ariens 05902400

BLT-HEX .50-13X1.00 PL GR2
(Superseded to 05947100)

$2.49

$

In Stock, Qty 7

0

25

Ariens 03355400

JACKSHAFT

$

$

Not available

26

Ariens 06408800

WSHR-FL-STL .755X1.250X.125
(Superseded to 06441500)

$3.99

$

In Stock, Qty 10

0

27

Ariens 05412000

BRG-BALL .750X1.781X.61

$13.99

$

In Stock, Qty 20+

0

28

Ariens 06606000

KEY-SQ .187 X .50 X .187

$10.99

$

In Stock, only 3 left!

0

29

Ariens 07312900

PLY-V 6.00 X .75 W/KEY

$68.99

$

Usually ships in 4-12 days

0

30

Ariens 07227300

V-BELT, 5L-RAW EDGE

$47.99

$

Usually ships in 4-12 days

0

31

Ariens 01521700

ROLLER MOUNT WELDMENT

$20.99

$

Usually ships in 4-12 days

0

32

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 16

0

33

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, only 4 left!

0

34

Ariens 06203100

BLT-RDHDSQNK .31-18X1.0 SHT PL
(Superseded to 06200237)

$2.49

$

In Stock, only 3 left!

0

35

Ariens 03358700

BRACE, FRONT

$

$

Not available

36

Ariens 06525800

NUT-LK .50-13 HEX TYPE N
(Superseded to 06536300)

$3.99

$

In Stock, only 2 left!

0

37

Ariens 06405600

WSHR-FL-STL .505X.880X.072 PL
(Superseded to 06436600)

$3.99

$

In Stock, only 2 left!

0

38

Ariens 06208300

BLT-RDHDSQNK .50-13X.75 SHT PL
(Superseded to 06224600)

$3.99

$

In Stock, only 3 left!

0

39

Ariens 03358900

BRACE, RIGHT REAR

$6.99

$

Usually ships in 4-12 days

0

40

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

41

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

42

Ariens 06400700

WSHR-FL-STL.312X.734X.065PL
(Superseded to 06435800)

$0.99

$

In Stock, Qty 8

0

43

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, only 3 left!

0

44

Ariens 02745400

ROLLER

$14.99

$

In Stock, Qty 15

0

45

Ariens 05920800

BLT-HEX .38-16X3.50 PL GR5
(Superseded to 05960900)

$3.99

$

Usually ships in 4-12 days

0
