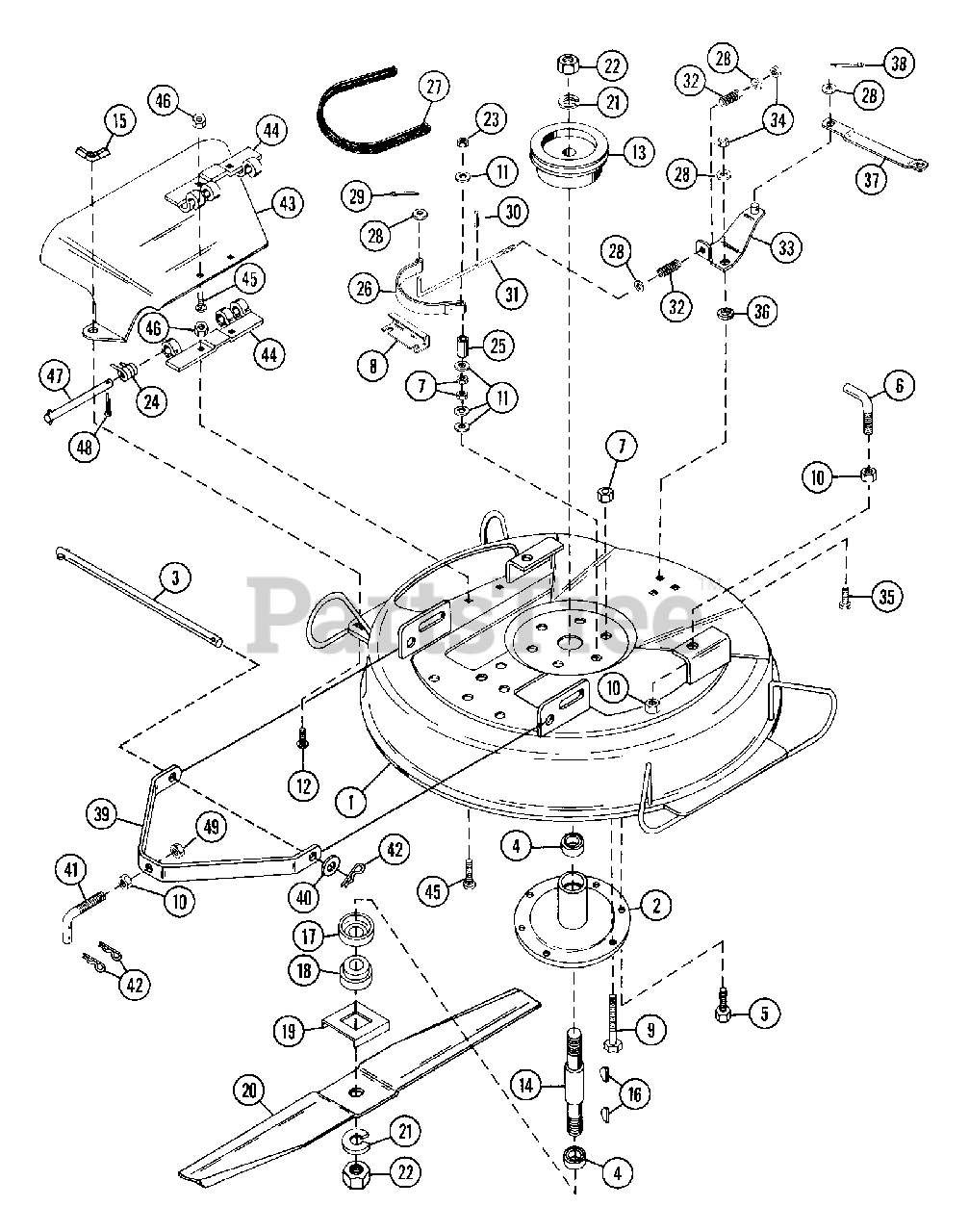

935002 (YT 1032) - Ariens Sierra 32" Yard Tractor, 10hp Tecumseh, Gear (SN: 000101 & Above) Mower 32" Parts Diagram

Sierra 32" Yard Tractor, 10hp Tecumseh, Gear

Mower 32" Parts Diagram

  • Title

1

Ariens 53502700

32 INCH MOWER PAN W/DECALS
(Superseded to 53508400)

Note: (INCLUDES DECALS)

$

$

Not available

2

Ariens 00317200

SPINDLE HOUSING

$

$

Not available

3

Ariens 03526200

TOW PIN

$

$

Not available

4

Ariens 05412000

BRG-BALL .750X1.781X.61

$13.99

$

In Stock, Qty 20+

0

5

Ariens 05915400

BLT-HEX .38-16X.75 PL GR5
(Superseded to 05959400)

$1.49

$

In Stock, only 1 left!

0

6

Ariens 03510000

HANGER HOOK

$

$

Not available

7

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 03522700

BRAKE BAND SUPPORT
(Superseded to 03590000)

$

$

Not available

9

Ariens 05919600

BLT-HEX .38-16X3.00 PL GR5
(Superseded to 05958300)

$3.49

$

In Stock, only 1 left!

0

10

Ariens 06501700

NUT-JAM .50-13 PL
(Superseded to 06529300)

$1.49

$

In Stock, Qty 17

0

11

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 06204200

BLT-RDHDSQNK .25-20X.75 GR5PL
(Superseded to 06219900)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 03522800

MOWER SHEAVE

$

$

Not available

14

Ariens 03526700

SPINDLE SHAFT

$94.99

$

Usually ships in 4-12 days

0

15

Ariens 06506400

NUT-WING .250-20
(Superseded to 06537500)

$4.99

$

In Stock, Qty 9

0

16

Ariens 06600300

KEY-WDRF .188X.75X.313 SAE 9

$1.49

$

In Stock, Qty 7

0

17

Ariens 00341900

BEARING SLINGER

$20.99

$

In Stock, Qty 5

0

18

Ariens 00316900

RETAINER HUB

$16.99

$

Usually ships in 4-12 days

0

19

Ariens 00317000

BLADE TRAY

$30.99

$

Usually ships in 4-12 days

0

20

Ariens 02721500

32 IN MOWER BLADE
(Superseded to 02728600)

$56.99

$

In Stock, Qty 6

0

21

Ariens 06300800

WSHR-LK .750X.188 MED PL
(Superseded to 06310300)

$1.49

$

In Stock, Qty 10

0

22

Ariens 06502500

NUT-JAM .75-10 PL
(Superseded to 06537700)

$2.49

$

In Stock, Qty 20+

0

23

Ariens 06513500

NUT-LK-NYL .375-16 PL
(Superseded to 06535800)

$2.49

$

In Stock, Qty 19

0

24

Ariens 08307200

SG-TORS .095X.50X 1.0

$20.99

$

Usually ships in 4-12 days

0

25

Ariens 03523100

SPACER .386X.502X1.060

$

$

Not available

26

Ariens 03523200

BRAKE BAND

$

$

Not available

27

Ariens 07212300

V-BELT, 4L-RAW EDGE

$43.99

$

In Stock, only 3 left!

0

28

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

$1.49

$

In Stock, only 2 left!

0

29

Ariens 06700300

PIN-COTR .06X.50
(Superseded to 06712400)

$3.99

$

Usually ships in 4-12 days

0

30

Ariens 05800900

PIN-ROLL .125X1.00

$0.99

$

In Stock, Qty 18

0

31

Ariens 03523300

BRAKE ROD

$

$

Not available

32

Ariens 08300900

SG-COMP .057X.47X1.25

$20.99

$

Usually ships in 4-12 days

0

33

Ariens 03523400

BRAKE ACTUATOR

$5.99

$

Usually ships in 4-12 days

0

34

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

35

Ariens 05913500

BLT-HEX .31-18X.75 PL GR5
(Superseded to 05947000)

$1.49

$

In Stock, Qty 16

0

36

Ariens 03502700

SPACER -FLANGED .325X.498X.318

$3.99

$

Usually ships in 4-12 days

0

37

Ariens 03523500

STRAP

$

$

Not available

38

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 12

0

39

Ariens 03523600

MOWER STRAP

$32.99

$

In Stock, only 1 left!

0

40

Ariens 06405600

WSHR-FL-STL .505X.880X.072 PL
(Superseded to 06436600)

$3.99

$

In Stock, only 2 left!

0

41

Ariens 03523700

HOOK

$

$

Not available

42

Ariens 06702900

PIN-HAIR INT .09X.188 PL

$2.49

$

Usually ships in 4-12 days

0

43

Ariens 53503200

CHUTE DEFLECTOR W/ DECAL

$

$

Not available

44

Ariens 02709500

HINGE PLATE
(Superseded to 02709551)

$27.99

$

In Stock, only 1 left!

0

45

Ariens 06201700

BLT-RDHDSQNK .25-20X.62 PL
(Superseded to 06213800)

$

$

Not available

46

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

47

Ariens 02520500

CLEVIS PIN
(Superseded to 03624200)

$51.99

$

In Stock, only 1 left!

0

48

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 5

0

49

Ariens 06504600

NUT-LK-CTR .50-13
(Superseded to 06536300)

$3.99

$

In Stock, only 3 left!

0
