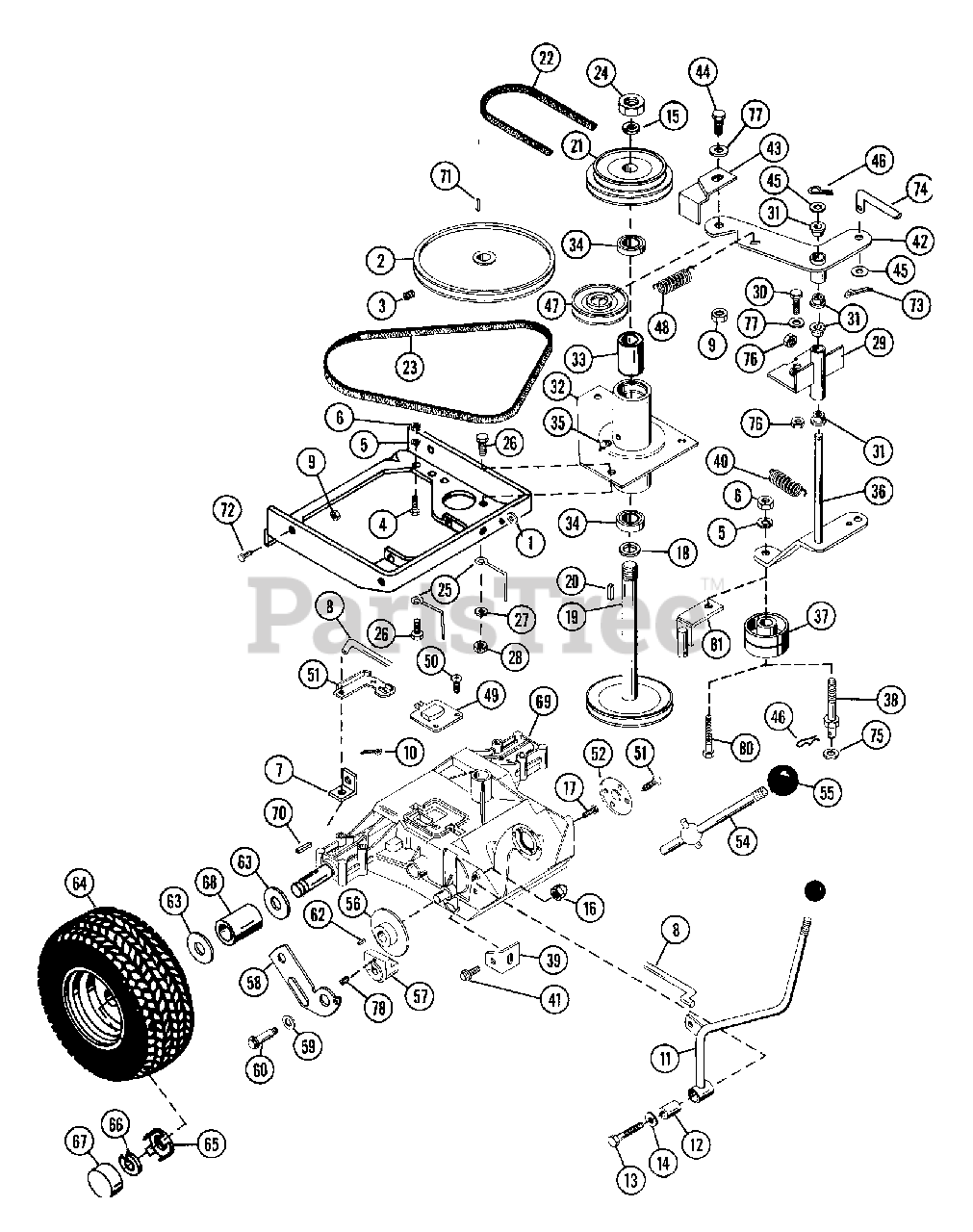

935003 (YT 1138) - Ariens Sierra 38" Yard Tractor, 11hp Briggs & Stratton, Gear (SN: 000101 - 006183) Transaxle Parts Diagram

Sierra 38" Yard Tractor, 11hp Briggs & Stratton, Gear

Transaxle Parts Diagram

  • Title

1

Ariens 03501000

TRANSAXLE MOUNT

$

$

Not available

2

Ariens 07310500

PLY-V 6.00 X .63 W/KEY (ADAMS)

$

$

Not available

3

Ariens 06001400

SCR-SET .25-20X.25 SKHCUPNY OH
(Superseded to 06005400)

$4.99

$

In Stock, only 1 left!

0

4

Ariens 05916000

BLT-HEX .38-16X2.75 PL GR5
(Superseded to 05961400)

$5.49

$

In Stock, Qty 20+

0

5

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$5.49

$

In Stock, Qty 15

0

6

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$1.99

$

In Stock, Qty 20+

0

7

Ariens 02433100

TAB

$

$

Not available

8

Ariens 03501100

SELECTOR ROD

$

$

Not available

9

Ariens 06512200

NUT-LK TOP .375-16 GR C YWZC

$3.49

$

Usually ships in 4-12 days

0

10

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 03501200

RANGE SELECTOR LEVER

$

$

Not available

12

Ariens 01316600

SPACER .50 X .32 X 1.00

$

$

Not available

13

Ariens 05916200

BLT-HEX .25-20X2.00 PL GR5
(Superseded to 05967100)

$3.49

$

In Stock, only 3 left!

0

14

Ariens 06400700

WSHR-FL-STL.312X.734X.065PL
(Superseded to 06435800)

$1.99

$

In Stock, Qty 20+

0

15

Ariens 06302700

WSHR-LK-INT .750X.050 MED
(Superseded to 06310800)

$2.49

$

Usually ships in 4-12 days

0

16

Ariens 06507000

NUT-LK TOP .250-20 PL
(Superseded to 06529700)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 05908300

BLT-HEX .25-20X1.00 PL GR5
(Superseded to 05947700)

$2.49

$

In Stock, only 2 left!

0

18

Ariens 06408800

WSHR-FL-STL .755X1.250X.125
(Superseded to 06441500)

$4.99

$

In Stock, Qty 20+

0

19

Ariens 03501500

JACKSHAFT SPINDLE
(Superseded to 53506000)

$

$

Not available

20

Ariens 06601300

KEY-SQ .188X1.0X.188 SAE 8630

$2.49

$

In Stock, only 1 left!

0

21

Ariens 03501600

DOUBLE SHEAVE
(Superseded to 03526500)

Note: (PTO)

$

$

Not available

22

Ariens 07211600

V-BELT, 4L-RAW EDGE

$59.99

$

Usually ships in 4-12 days

0

23

Ariens 07211700

V-BELT, 4L-RAW EDGE

$33.99

$

In Stock, only 1 left!

0

24

Ariens 06502500

NUT-JAM .75-10 PL
(Superseded to 06537700)

$3.99

$

In Stock, Qty 20+

0

25

Ariens 03175500

BELT FINGER

$

$

Not available

26

Ariens 05918100

BLT-HEX .31-18X1.00 PL GR5
(Superseded to 05946900)

$2.49

$

In Stock, Qty 20+

0

27

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$5.49

$

In Stock, Qty 15

0

28

Ariens 06502400

NUT-LK-NYL .375-24 PL
(Superseded to 06538800)

$2.99

$

Usually ships in 4-12 days

0

29

Ariens 03501700

IDLER PIVOT

$

$

Not available

30

Ariens 05913500

BLT-HEX .31-18X.75 PL GR5
(Superseded to 05947000)

$2.49

$

In Stock, Qty 20+

0

31

Ariens 05503600

BSHG-FLG .372X.500X.312X.625NY

$3.49

$

In Stock, Qty 20+

0

32

Ariens 03501300

SPINDLE HOUSING

$

$

Not available

33

Ariens 03501400

BEARING SPACER .770X1.00X3.268

$

$

Not available

34

Ariens 05412000

BRG-BALL .750X1.781X.61

$15.99

$

In Stock, Qty 15

0

35

Ariens 02209300

SPIN DRIVE ZERK FITTING
(Superseded to 07012600)

$

$

Not available

36

Ariens 03501800

IDLER ARM

$

$

Not available

37

Ariens 07310800

IDLER-FLAT 2.25 X .38

$36.99

$

In Stock, only 2 left!

0

38

Ariens 03501900

IDLER MTG BOLT

Note: (Used Only On Model(s): 935003,005).

$

$

Not available

39

Ariens 03502000

SPRING ANCHOR

$

$

Not available

40

Ariens 08306800

SG-TENS .091X.73X5.28 WLD 30
(Superseded to 08306851)

$

$

Not available

41

Ariens 07000900

BLT-SERHFWH .31-18X.50 PL

$3.49

$

In Stock, only 1 left!

0

42

Ariens 03502100

IDLER ARM

$34.99

$

Usually ships in 4-12 days

0

43

Ariens 03502200

BELT RETAINER

$

$

Not available

44

Ariens 05902700

BLT-HEX .38-16X1.75 PL GR2
(Superseded to 05958500)

$2.99

$

In Stock, Qty 20+

0

45

Ariens 06405200

WSHR-FL-STL .382X.812X.023 PL
(Superseded to 06436500)

$2.99

$

In Stock, only 2 left!

0

46

Ariens 06702000

PIN-HAIR INT .08X.18X1.18
(Superseded to 06713500)

$1.99

$

In Stock, Qty 20+

0

47

Ariens 07310900

IDLER-V 3.06 X .38

$36.99

$

In Stock, only 1 left!

0

48

Ariens 08311700

SG-TENS .105X.812X3.88 WLD 15

$9.99

$

In Stock, Qty 10

0

49

Ariens 03516300

HI-LO COVER PLATE

$

$

Not available

50

Ariens 06104300

SCR-MCH 8-32X.50 SLTR PL

$

$

Not available

51

Ariens 06104000

SCR-MCH 10-24X.50 SLTR PL

$3.99

$

Usually ships in 4-12 days

0

52

Ariens 03516400

NYLON COVER

$20.99

$

Usually ships in 4-12 days

0

53

Ariens 03516100

HI-LO SHIFT LEVER

$

$

Not available

54

Ariens 53500700

SHIFT LEVER ASSY

$

$

Not available

55

Ariens 07500100

SHIFT BALL
(Superseded to 07505200)

$23.99

$

In Stock, only 1 left!

0

56

Ariens 03515300

BRAKE DISC
(Superseded to 53502000)

$

$

Not available

57

Ariens 53500400

BRAKE JAW ASSY

$

$

Not available

58

Ariens 53500500

ACTUATING LEVER ASSY

$

$

Not available

59

Ariens 53500900

SHIM KIT
(Superseded to 06417700)

$

$

Not available

60

Ariens 03515700

SHOULDER BOLT

$

$

Not available

61

Ariens 03524900

FRICTION PAD

$

$

Not available

62

Ariens 06601400

KEY-WDRF .188X.625X.25 SAE 61

$3.49

$

In Stock, Qty 10

0

63

Ariens 06404800

WSHR-FL-STL .755X1.375X.062 PL
(Superseded to 06441500)

$4.99

$

In Stock, Qty 20+

0

64

Ariens 63500700

WHEEL & TIRE ASSEMBLY
(Superseded to 07114900)

$

$

Not available

Ariens 07101800

TIRE 18 X 8.50-8

$

$

Not available

Ariens 07113000

WHL
(Superseded to 07153600)

$

$

Not available

Ariens 07108800

TUBE 18X9.50-8

$44.99

$

Usually ships in 4-12 days

0

65

Ariens 03516900

SPINDLE CUP

$20.99

$

In Stock, only 2 left!

0

66

Ariens 05707400

RG-RTNG-EXT .750X.050

$3.49

$

In Stock, Qty 13

0

67

Ariens 00337700

HUB CAP

$3.49

$

In Stock, Qty 20+

0

68

Ariens 03506800

SPACER 1.000 X .760 X 1.562

$

$

Not available

69

Ariens 63501200

TRANSAXLE ASSEMBLY
(Superseded to 03559100)

$

$

Not available

70

Ariens 06601900

KEY-SQ .188X2.0X.188 SAE 8630

$

$

Not available

71

Ariens 06600300

KEY-WDRF .188X.75X.313 SAE 9

$1.99

$

In Stock, Qty 13

0

72

Ariens 05914500

BLT-HEX .38-16X1.00 PL GR5
(Superseded to 05948700)

$2.49

$

In Stock, Qty 20+

0

73

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$1.49

$

In Stock, Qty 10

0

74

Ariens 03503400

CLUTCH ROD

$

$

Not available

75

Ariens 06409300

WSHR-FL-STL .382X.812X.062
(Superseded to 06435700)

$2.49

$

In Stock, Qty 20+

0

76

Ariens 06512400

NUT-LK-TOP .312-18 GR C PL
(Superseded to 06529800)

$2.49

$

In Stock, Qty 20+

0

77

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$2.49

$

In Stock, Qty 20+

0

78

Ariens 06003500

SCR-SET 8-32 FOOTE 1606

$

$

Not available

80

Ariens 05902700

BLT-HEX .38-16X1.75 PL GR2
(Superseded to 05958500)

Note: (Used Only On Model(s): 935004).

$2.99

$

In Stock, Qty 20+

0

81

Ariens 03526100

BRACKET

Note: (Used Only On Model(s): 935004).

$

$

Not available
